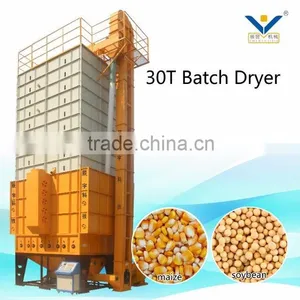

China Agricultural Farming Coffee Processing Machinery/equipment

China Agricultural Farming Coffee Processing Machinery/equipment photo-1
China Agricultural Farming Coffee Processing Machinery/equipment photo-2
China Agricultural Farming Coffee Processing Machinery/equipment photo-3
China Agricultural Farming Coffee Processing Machinery/equipment photo-4
China Agricultural Farming Coffee Processing Machinery/equipment photo-5
China Agricultural Farming Coffee Processing Machinery/equipment photo-6
US$ 48,000 - 55,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Automatic
Use:
Grain Drying
Certification:
ISO 9001;CE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Type Automatic
Use Grain Drying
Certification ISO 9001;CE
Place of Origin Anhui, China
Brand Name Chenyu Grain Dryer
Model Number 5HCY-30
Condition New
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

China agricultural farming coffee processing machinery/equipment with lower drying cost,higher drying speed and longer service.It made in China factory,Anhui Chenyu Mechnical Co.,Ltd,which has more than 10 years and recognized by more than 4500 users.At present,we have 7500 sets machine sold on domestic and overseas.During the rapid development in the past ten decades,Chenyu always follow the "People First,Quality First,Technical Innovation,Full Dedication"business philosophy,and implements brand strategy,innovation strategy and enterprise cultural strategy.Our company based on the  grain drying filed,insists on making  better agricultural machinery with the core value"Drying perfect,saving efficient"guiding.

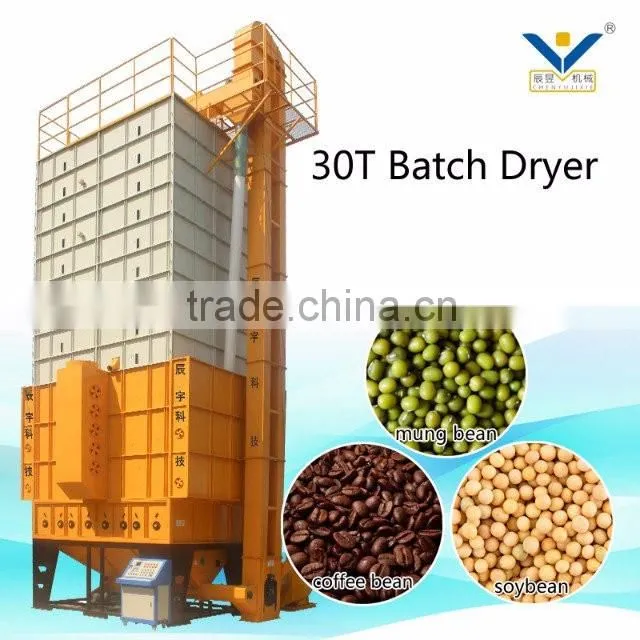

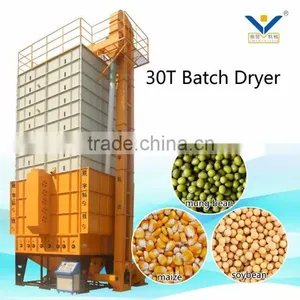

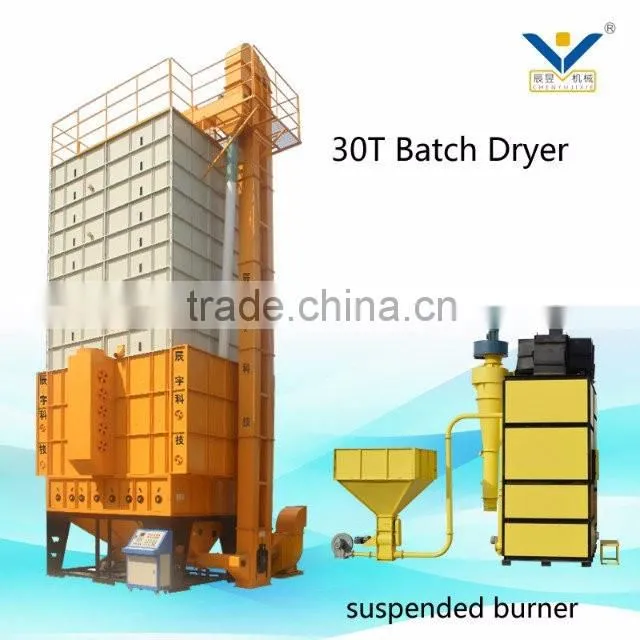

China agricultural farming coffee processing machinery/equipment  5HCY-30

        Loading capacity
paddy(kg)
12000-30000
wheat(kg)
16000-30000
Weight(kg)
7500
Dimension(mm) (H*L*W)
11430*5500*5250

Ventilation Fan
Model
4-72-6C
Rated air flow(㎥/h)
7367-14734/each two sets in total

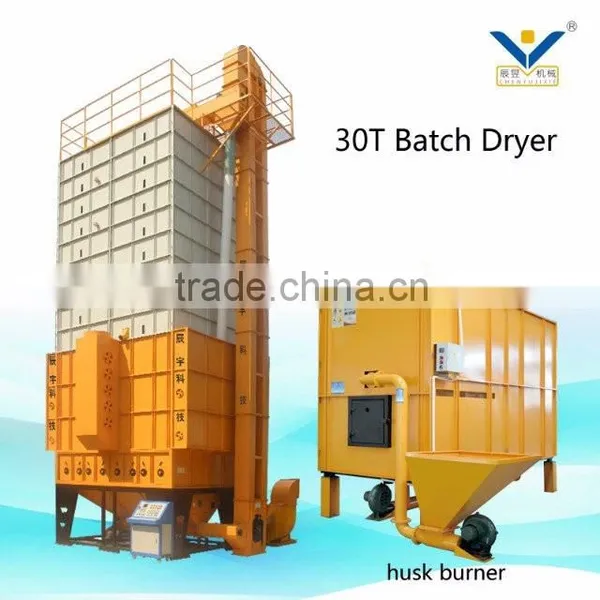

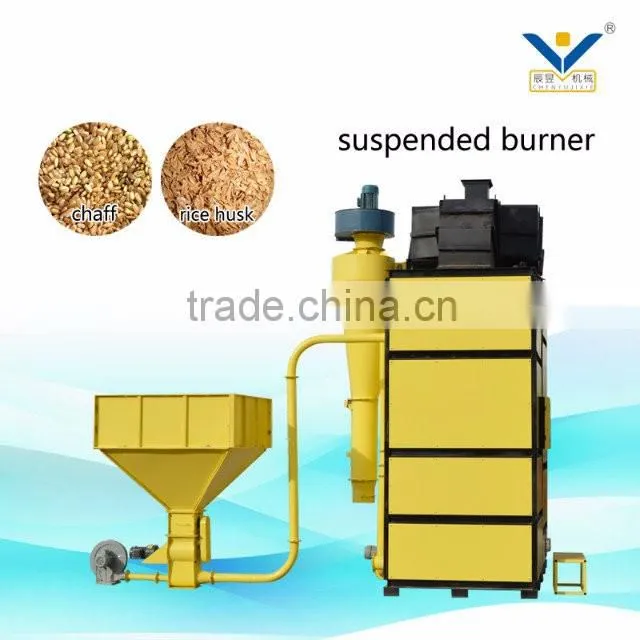

Husk Burner(optional)
Model
indirect hot air heating(automatic temperature control)
Ignition mode
manual
Fuel consumption
(kg/h rice hull)
70-100kg/h (firewood)
Fuel
rice hull,straw,firewood,anthticite

Electric Power
Voltage/frequency
three phase 380V,Single phase 220v/50Hz
(can be customized)
Total motor power(kw)
19.22

Loading time(min)
paddy
45-65
wheat
45-60

Unloading time(min)
paddy
45-65
wheat
45-60
drying rate(%/h)
0.5-1.2
Device
Safety device
full load buzzer,thermal over relay,temperature controller,hot air temperature sensor,overload protection device,leakage protection device
Standard device
online moisture monitor,grain temperature sensor,fault removal sensor
1.Specification is subject to change without notice.
2.The parameters are just for reference.The moisture of the paddy is from 24% to 15% and 28% to 12.5% for wheat.Actual datas will be differed from variety,moisture content and temperature.

Main Features

1) Batch type Low temperature circulating grain dryer machine

2) Wide application:paddy /rice/wheat/soybean/other  granular seeds

3) High drying speed:reduce 2% moisture per hour on average.

     2 sets 5.5KW blowers&large drying cabinet&mixed-flow drying mode

4) Low drying cost:rice hull/straw/firewood/anthracite

5) minimum seed size:2.0mm

Certifications

Anhui Chenyu Mechnical Co.Ltd has gotten 30 national patents,wins good reputation and awards"China's Top Ten  Agricultural Machinery Enterprises","Anhui Famous Brand Products","National High-tech Enterprise" and so on.

Detailed Images

Machine Parts

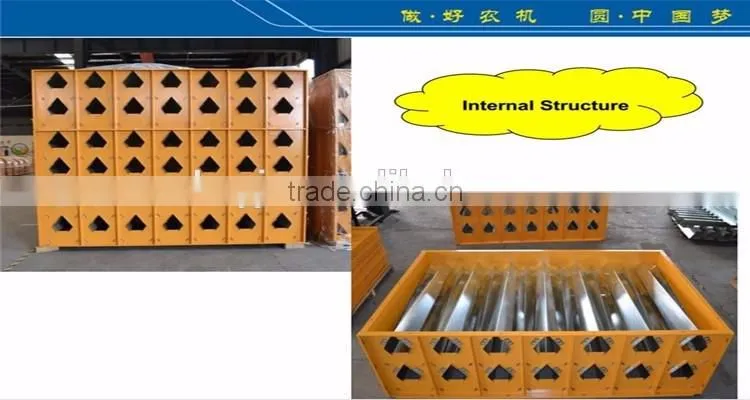

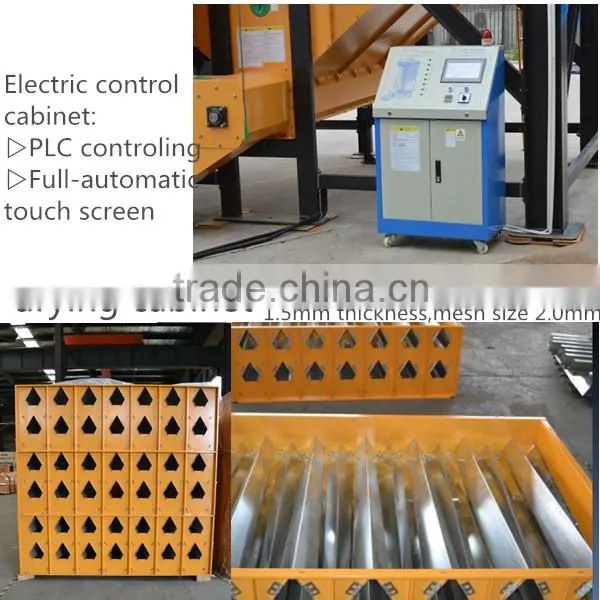

Name: Drying cabinet

Brand: Chenyu Brand

Original: Anhui,China

Stainless steel angel pipe

Thickness:1.5mm

Mesh size:2.0mm

Main Features

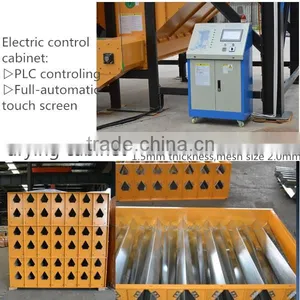

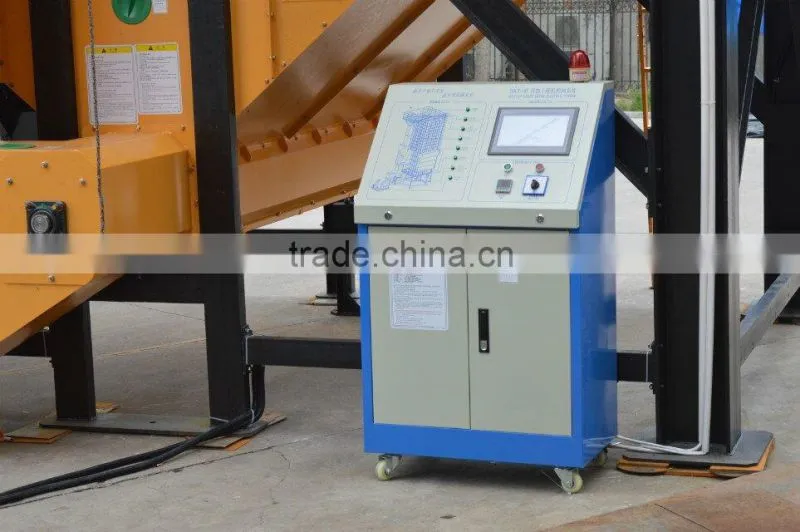

Name: Electric control cabinet
Original: Anhui China
Full-automatic touch screen

Easy to operate&maintain

Machine Parts

Name: Screw Conveyor
Brand: Chenyu Brand
Original: Anhui China
1 pc upper screw conveyor&6 pcs lower screw conveyor

Main Features

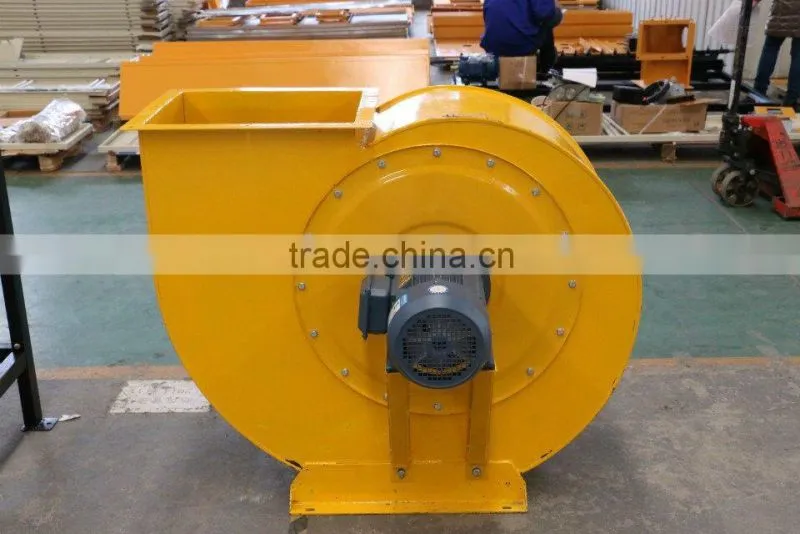

Name: Blower
Brand: Chenyu Brand
Original: Anhui China
2 sets 5.5kw

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

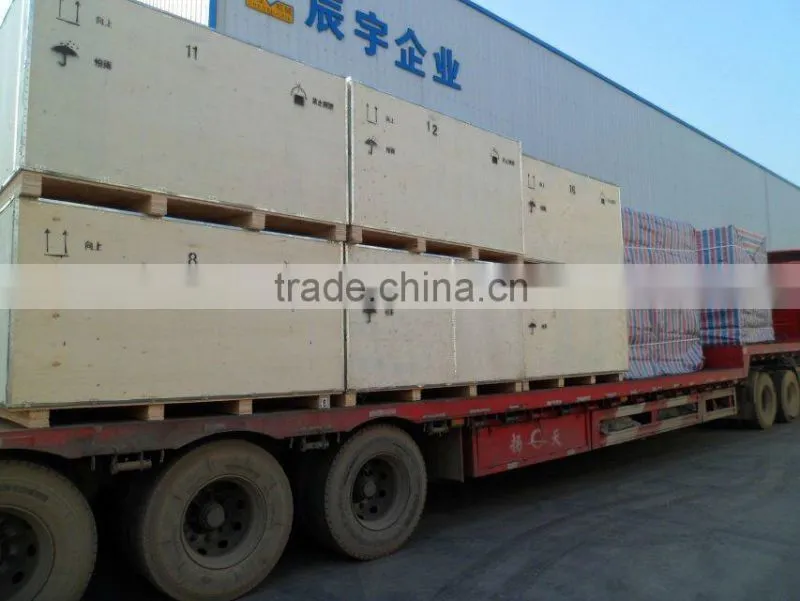

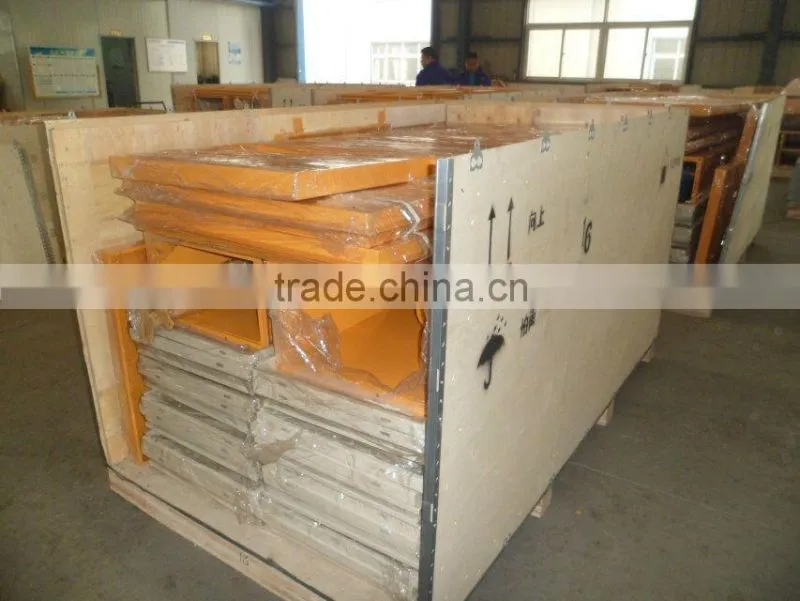

Packing & Delivery

packing with stretch film

packing with wooden case

delivery after packing
