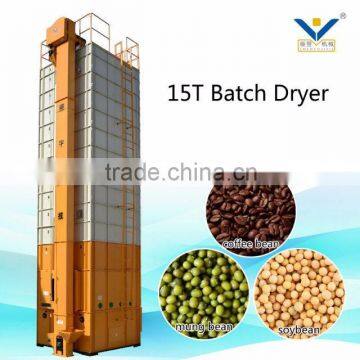

Agricultural grain pulses drying machine with best quality 5HCY-15H

Name: Agricultural grain pulses drying machine with best quality 5HCY-15H
Brand: CHENYU
Availability: InStock

FOB Price

USD $18,000 - $22,000 / Set

1 Set(Min.Order)

Port shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Farm Equipment	Use	Grain
Certification	CE ISO	Place of Origin	Anhui, China
Brand Name	CHENYU	Model Number	5HCY-15H
Condition	New	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Our Company

Anhui Chenyu Mechanical Co.,Ltd,aiming at grain dryer business,is a comprehensive agricultural machinery manufacturer&national enterprise that specializes in the integration of development,manufacturing,sales and services.In a high speed,we develop three Subsidiary company.

1.Major in producing grain dryer&husk burner over 12 years

2.Have sold over 7500 sets machines in the domestic and overseas.

3.Awarded over 30 patents and passed the identification of popularizing agricultural

4.Invest over RMB 200 millions on R&D

The 5H series low-temperature circulating grain dryer and CY5L series husk burner are our main products.We have core patents,can ensure exact security and energy saving on grain drying process.

With the core value"Drying perfect,saving efficient",hope we can contribute a force for you.

Certifications

The above is our company honors.

You can contact with us directly and know more about details.

The above is our company patents.
You can contact with us directly and know more about details.

Product Description

I.10T-15T Grain dryer Functional Characteristics

wide application	rice/paddy/wheat/corn/rapeseed/soybean/peanut/maize
high drying speed	reduce 1% moisture per hour on average
indirect heating technology	less pollution and more safty
low temperature	60℃-120℃
crack rate	<3%
grind rate	<0.5%

II.Low-temperture grain dryer Specification

Agricultural grain pulses drying machine with best quality 5HCY-15H

Model		5HCY-15H
Loading capacity	Paddy(kg)	2300-15000
Loading capacity	Wheat(kg)	2700-15000
Weight (kg)		3000
Dimension(mm)	H	9560
	L	4320
	W	2492
Ventilation Fan	Model	4-72-6A
Ventilation Fan	Rated air flow(m3/h)	6677-13353
Husk Burner(optional)	Model	indirect hot air heating(automatic temperature control)
	Ignition mode	manual
	Fuel consumption(kg/h rice hull)	30-40
	Fuel	rice hull,firewood,straw,anthracite
Electric Power	Voltage/Frequrecy	three phase 380V,single phase 220V/50Hz
Electric Power	Total Motor power (kw)	6.8
Function	Loading time(min)	paddy 55-65
	Loading time(min)	wheat 50-60
	unloading time(min)	paddy 55-60
	unloading time(min)	wheat 50-60
	Drying rate (%/h)	0.5-1.2
Device	Safety Device	full load buzzer,thermal-over relay,temperature controller,hot air temperature sensor,overload protection device,leakage protection device
Device	Standard Device	online moisture monitor,grain temperature sensor,fault removal sensor
1.Specification is subject to change without notice.
2.The parameters are just for reference.The moisture of the paddy is from 24% to 15% and 28% to 12.5% for wheat.Actual datas will be differed from variety,moisture content and temperature.

Detailed Images

Blower

1 set 4KW(10T/12T/15T)

SS steel sheet in Cross Flow type

Thickness 1.0mm,Mesh 2.0mm

Screw Conveyor

1pc upper screw conveyor&4 pcs lower screw conveyor(10T/12T/15T)

Packing & Delivery

Agricultural dryer machine Inner Package with stretch film

Agricultural dryer machine outside package with standard export wooden

Agricultural dryer machineInner Package with stretch film

Our Service

Pre-sales: Answer technical questions and the introduction of products for clients according to their demand and provide customers a complete solution;

Sales: Provide product installation; improve the instruction for use and maintenance manual. It is free to provide technical training until the customer can operate the products independently;

After-sales: Offer one year of warranty from the date of installation and acceptance. And also provide life-long maintenance and repair services. Engineers available to service overseas;

FAQ

1. How about engineers service oversea?
Engineers available to service machinery overseas;

2.. How about the guarantee period?
One year.

3. Will you accept L/C as payment?
L/C is accepted. T/T is OK for us.
Alibaba Trade Assurance is your best choice.

4.What type of dryers do you have? Are these continuous or batch?

Batch type.Low-temperature circulating grain dryer.

5.what is the minimum seed size that your machine can handle ？

2.0mm

6.Would you like to provide a solution on the machine setting?

Yes,we'd like to.Please share your daily capacity,grain moisture content,fuel type,etc.

Best sell in Asia Chenyu brand corn dryer machine
contact person	Lisa Du
Whatsapp	+8618626059928
skype	ahladujuan
wechat	ahladujuan_lisa
QQ	2360393622

Customer Case

three dryers supported by one Furnace
