Specifications
Adjustable ball fiber sizePLC control system
Simple operation skill required
CE Certification
2>Ball fiber making machine T04D
Description

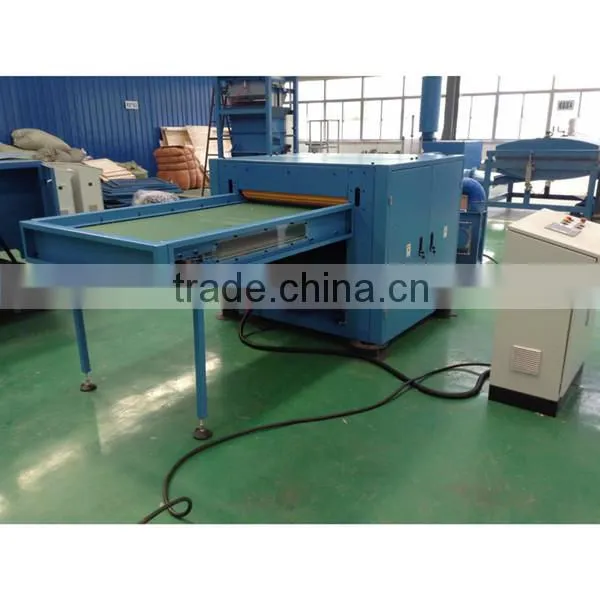

1>It is assembled with fiber opener+blower+vibration hopper+continuously ball fiber 2>machine+blower.
3>The raw material can be conjugate hollow silicon polyester fiber 7D to 14D, 32mm to 64mm.
4>The minimum capacity can be 200kg/h.
5>First of all, put the raw material on the conveyor of the fiber opener, the fiber will be feeding into the fiber opener and be opened,
6>Then the opened fiber will be send to the vibration hopper by the blower,
7>Through the vibration hopper, the fiber will slump on the ball fiber machine,

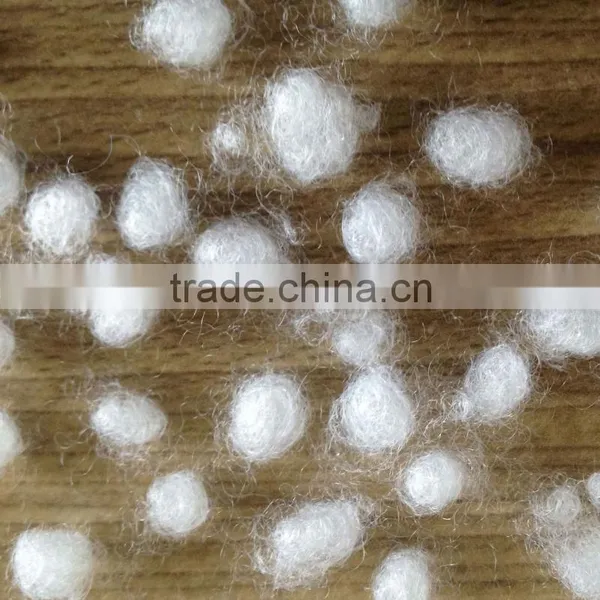

8>After balling, the fiber ball will be send out by the blower.
9>In addition, the fiber opener can be used alone, the opening rate can be 98% up, the capacity can be 300kg/h.
Specification
Product name |
Continuously ball fiber machine |
Item no. |
T04D |
Power |
28.10KW |
Voltage |
380v 50Hz 3phase |
Capacity |
Min 200kg/h |
Labor |
2 person |
Control system |
Siemens PLC |
Weight |
2600Kg |
Dimension |
2500*1500*3800 |
|
|
Photo Description
MDF packing
We are able to supply machine commissioning support and training
oversease for larger automatic machine lines.
Please contact us as soon as any problem happends with some photos and
descriptions; our engineers will response within 24 hours with technical
instructions.
All spare parts are standard that can be found from local.
We will send it to you by overnight if needed.
Service Translator: Ms. Jenny
Qingdao Lion Machinery is specialized in non-woven machinery since 2007, as a leading supplier
and manufacturer of home textile machinery in China, we are mainly working with filling machines
such like line of automatic cushion filing machine, sofa filling machine and duvet filling machines,
thermal bonded fiber machine, comforter filling machine and teddy bear stuffing machines.
Our automation division designs and builds some of the most innovative feeding and weighing
equipments such like bale breaker weighing scale system, down feather weighing system and sofa
& cushion vacuum filling system into a complete lines.
All automatic systems are controlled by PLC such like Siemens, AB or other brand by the
customer’s requirement; Different power condition is possibly be ordered.
We are able to supply non-standard function required by clients based on standard equipment
configuration by our professional R&D team.
We have exported our equipments in about 60 countries and districts over the world market and
set up our agent office in Spain, Portugal and East Asia.
We provide long term and good service for our clients in 24 hours feedback.
If you find anything that you need, please feel free to call us.
Loading date: Within 30 days after receipt the advance.
Machine condition: New in 2014
Guarantee: 1year material for free; 6months for the electrical key parts; after sales service forever.
Certification: BL, CO, PL, CI,
