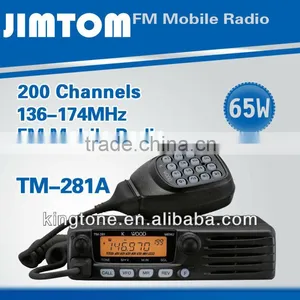

NEW Wireless Vehicle Radio TM-281A VHF 65Watt Mobile Two Way Radio

NEW Wireless Vehicle Radio TM-281A VHF 65Watt Mobile Two Way Radio thumbnail-1
NEW Wireless Vehicle Radio TM-281A VHF 65Watt Mobile Two Way Radio photo-1
US$ 1 - 200 MOQ: 2 Sets
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
kingtone
Model Number:
TM-281A
Contact Supplier Request Quote Chat Now
Quanzhou Kingtone Optics & Electronics Technology Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name kingtone
Model Number TM-281A
Type Vehicle Mouted
Dimensions 160(W) * 43(H) * 137(D) mm
Frequency Range VHF136-174MHz/ UHF 400-480MHz
Storage Channel 200 Channels
Talk Range 35-40KM, 35-40KM

Specifications

NEW Wireless vehicle radio TM-281A VHF 65Watt Mobile Two Way Radio1.Mobile Radio, Vehicle Mounted Radio, Base Radio

TM-281A TM281 VHF 65 Watt Mobile Two Way Radio NEW Brand

 TM481A: UHF400-430/440-480MHz

TM281A: VHF136-174MHz



On or off the road, Kenwd’s TM-281A is a mobile radio you can always count on. As tough as nails, this MIL-STD-compliant transceiver delivers powerful performance, excellent audio clarity, and a host of advanced features. It offers superb operating ease day or night thanks to the large backlit LCD and illuminated keys. So the next time you take off, take the TM-281A.

NEW Wireless vehicle radio TM-281A VHF 65Watt Mobile Two Way Radio





Key Features



65 Watt RF Output
Rugged Construction to MIL-STD 810 C/D/E/F/G  Standards
Alpha-tagged Memories
High-Quality Front Mounted Loudspeaker
Built-In CTCSS/DCS Encoder/Decoder
Replaces previous TM-271A model





General Features
Alphanumeric LCD Display Yes
Antenna Socket SO-239 (M-Type)
Auto Power Off Yes
Auto Repeater Offset Yes
Automatic Simplex Checker Yes
Beat Shift Function Yes
Busy Channel Lock-out Yes
Calling Channel Function Yes
Channel Display Mode Yes
CTCSS Encoder/Decoder Yes, 42 EIA Tones with Tone Scan function
DCS Encoder/Decoder Yes, 104 Tones with Tone Scan function
Direct Frequency Entry Yes
DTMF Encoder Yes
DTMF Memory Yes, 10 DTMF memories of 16 digits each
High-Quality Front Speaker Yes
Illuminated Front Panel Keys Yes
Key Beep On/Off Yes
Key Lock Yes
Loudspeaker Socket 3.5 mm
Memory Channel Lock-out Yes
Memory Channels 201 Channels
Menu System for individual set-up Yes
Microphone Socket RJ-45
Monitor Function Yes
MR-Shift Yes
Multiple Scan Functions Yes
PC Programmable Memories Yes
Power-On Message Yes
Reverse Repeater Checker Yes
Time-Out Timer Yes
Variable LCD Brightness with Automatic Dimmer Yes
Wide/Narrow Band Deviation Selection Yes





Specifications
RF Output Power (approx.) - High 65 W
RF Output Power (approx.) - Low 25 W
TX Frequency Coverage - VHF 144 to 148 MHz (136 - 174 MHz optional)
RX Frequency Coverage - VHF 136 - 174 MHz
Transmitter Modulation Variable-Reactance modulation
Transmitter Modulation Distortion Less than 3% (300 Hz to 3 kHz)
Transmitter Maximum Frequency Deviation - Wide ± 5 kHz
Antenna Impedance - 50 Ohm Yes
Audio Output Power More than 2 W (5% Distortion)
Weight 1.13 kg (approx.)
Current Drain - RX Less than 1 A
Current Drain - TX Less than 14 A (Hi-Power), Less than 8 A (Low-Power)
Dimensions 160 mm (W) x 43 mm (H) x 126 mm (D) - excluding projections
Frequency Step Sizes 2.5, 5, 6.25, 10, 12.5, 15, 20, 25, 30, 50 and 100 kHz
Frequency Stability ± 2.5 ppm (-20 °C to +60 °C)
Microphone Impedance 600 Ohms
Modes - F3E FM Yes
Operating Temperature Range -20 °C to +60 °C
Power Requirement - 13.8 V DC ± 15% Yes
Receiver Circuitry Double Super Heterodyne
Receiver Intermediate Frequency - 1st IF 49.95 MHz
Receiver Intermediate Frequency - 2nd IF 450 kHz
Receiver Selectivity - Narrow More than 10 kHz at -6 dB, Less than 24 kHz at -60 dB
Receiver Selectivity - Wide More than 12 kHz at -6 dB, Less than 30 kHz at -60 dB
Receiver Sensitivity - Narrow Less than 0.22 µV at 12 dB SINAD
Receiver Sensitivity - Wide Less than 0.18 µV at 12 dB SINAD
Receiver Squelch Sensitivity Less than 0.1 µV





What includes in Standard Package:

1 x TM481/TM281 Mobile Radio

1 x Speaker Mic.

1 x Power Cable

1 x Installation Bracket

1 x Installation Kits (Screws .etc)

1 x User Manual



Optional Accessories:

-  Mobile Radio Antenna Kit (Antenna + Magnet Base with Feeder Line)

-  Power Supply (for Base Radio,110V/220V AC to DC13.8V)
