Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
BAOFENG
Model Number:
Baofeng BF-9500
Contact Supplier Request Quote Chat Now
Quanzhou Kingtone Optics & Electronics Technology Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name BAOFENG
Model Number Baofeng BF-9500
Type Vehicle Mouted
Dimensions 44.0 * 38.0 * 25.0 ( cm )
Frequency Range UHF 400-470
Storage Channel 200
Talk Range 15-30km

CTCSS/DCS Scan Emergency Alarm 2Tone 5Tone Transceivers Pofung BF-9500 UHF 400-470MHz 50W 200 Channel Mobile Radio

Product Description



Main Features and Functions:

BF-9500 Mobile Radio has nice housing, stoutness & stability, advanced and reliable functions, perfect & valuable. More functions as follows:

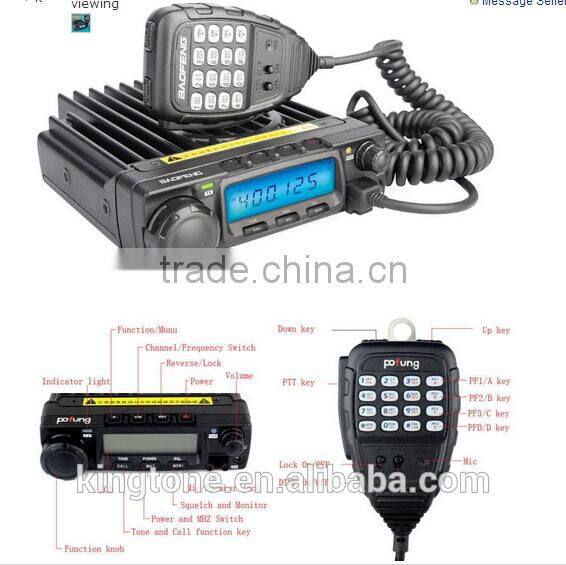

  • Display on a large LCD with adjustable brightness convenient information access.
  • Distribute buttons reasonably, convenient for operation.
  • Adopt superior quality material, better technology and high quality radiator to ensure stable and durable operation.
  • 200 programmable memorized channels.
  • Using 5Tone to send Message, Emergency alarm, Call all, ANI, Remotely kill, Remotely Waken, etc.
  • Programming different CTCSS, DCS, 2Tone, 5Tone in per channel, rejecting extra calling from other radios.
  • High/medium/low power, can meet the needs of long distance communication, more energy saving province electricity.
  • Automatic calling identification function by DTMAANI or 5ToneANI.
  • Theft alarm provides extra safety.
  • Compander function for decrease the background noise and enhance audio clarity. (Optional)
  • Scramble function (Optional)

  • Specification:

    All of our item are Brand new

    Main Function

    Menu setting

    Yes

    Work by repeater station

    Yes

    Auto repeater offset

    Yes

    Remote Kill/stun/activate/revive

    Yes

    Wide/Narrow band setting

    Yes

    Channel name editing

    Yes

    CTCSS/DCS setting and scanning

    Yes

    High/Mid/Low power selectable

    Yes

    Voice compander

    Yes

    Repeater offset shift

    Yes

    DTMF/2Tone/5Tone

    Yes

    Talk around

    Yes

    Monitor function

    Yes

    Squelch function

    Yes

    Volume adjustment

    Yes

    Channel mode/Frequency mode switch

    Yes

    Emergency alarm

    Yes

    Voice prompt

    Yes

    Auto power off

    Yes

    Emergency alarm

    Yes

    COMP function

    Yes

    Scan function

    Yes

    1750MHz tone

    Yes

    ANI-ID

    Yes

    Call keypad

    Yes

    Frequency range

    UHF:400-470MHz

    Channel capacity

    200ch

    Channel spacing

    12.5/20/25kHz

    Frequency step

    2.5/5/6.25/8.33/10/12.5/25/50/100kHz

    Working Voltage

    13.8V ±15%

    Squelch style

    CTCSS/DCS/5Tone/2Tone/DTMF

    Frequency Stability

    ±2.5ppm

    Operating temperature

    -20 °C to +60°C

    Dimension

    145(W) x 47(H) x 190(D)mm

    Weight

    Approx:1.2Kg

    Transmission

    Sensitivity(12dB SINAD)

    <=0.25µV/<=0.35µV

    Adjacent channel selectivity

    >=70/>=60dB

    Inter modulation

    >=65dB/>=60dB

    Spurious Rejection

    >=70dB

    Acoustic frequency response

    + 1 -3dB(0.3-2.55k)

    SNR

    >=45dB/>=40dB

    Audio distortion

    <=5%

    Audio Output Power

    >2W@10%

    Receiver

    Modulation mode

    16k¢F3E/11k¢F3E

    adjacent channel power

    >=70dB/>=60dB

    SNR

    >=40dB/>=36dB

    Audio distortion

    <=5%

    Acoustic frequency response

    + 1 -3dB(0.3-2.55k)





Precautions:

Please observe the following precautions to prevent other accident damage mobile radio:

  • Do not attempt to configure your mobile radio while driving,it is dangerous.
  • Use mobile radio, shall comply with the local laws and regulations.
  • Don`t operate with high output power for a long time;This may lead to mobile radio is
    Overheating.
  • Don`t try to refit the mobile radio.
  • Do not expose the transceiver to long periods of direct sunlight nor place it close to
    heating appliances.
  • Do not place the transceiver in excessively dusty, humid or wet areas, nor unstable surfaces.
  • If an abnormal odor or smoke is detected coming from the transceiver, turn OFF the power immediately. Contact an POFUNG service station or your dealer.
  • This transceiver is designed for a 13.8V DC power supply. Don`t use a 24V battery to power on the transceiver.

Trouble Shooting:

Problem

Possible Causes

Potential Solutions

Power is on, nothing appears on Display.

1. Power cable contact error.

2. Power cable of a root or more fuse disconnect.

1. Connect the power cable correctly:Red(+);Black(-)

2 . Check and solve problem resulting in blown

fuse and replace fuse with new fuse.

Display is too dim.

The power supply voltage is too low.

Power supply voltage of DC 13.8 V ±15% (DC 11.7 V to 15.8 V). If the input voltage is beyond this range, please adjust the voltage regulator power supply device and check all the power cable connection.

Key and Dial do not function

1.Key-lock function is activated.

2.In the channel display mode

1.Cancel Key-lock function.

2. Reset, cancel some lock function.

Rotating Dial will not change memory channel.

No storage memory channel

Settings are stored memory channel

PTT key is pressed but transmission does not occur.

Microphone connection is poor.

Connect microphone properly.



Packaging & Shipping

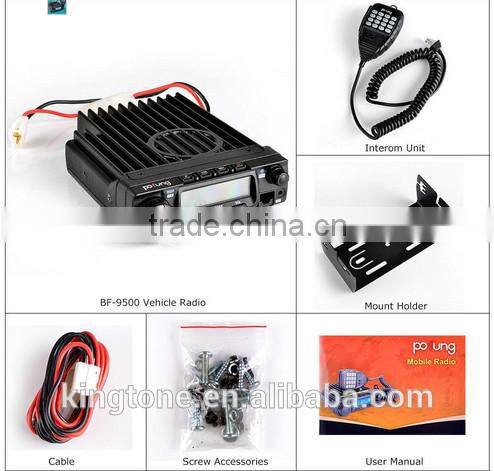

Package Content:

1 x Mobile radio BF-9500

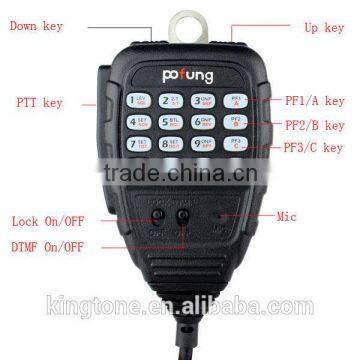

1 x Keypad DTMF microphone
1 x Radio body counting bracket
1 x DC power cable
1 x Screw pack
1 x English User manual
