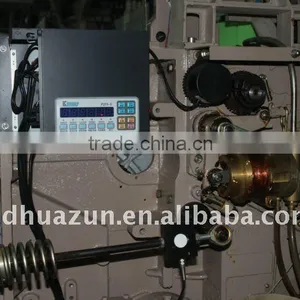

RJW851-190cm high speed heavy water jet home textile machine
- 800 Set / Sets per Month
- QINGDAO
- T/T
You May Like
Product Details
Condition | New | Type | Water Jet Loom | |
Application | polyester,nylon,peach skin,polyester pongee | Production Capacity | 98% | |
Place of Origin | Shandong, China | Brand Name | EKA | |
Model Number | RJW series water jet loom | Dimension(L*W*H) | 3150*1740*142mm | |
Weight | 1.4 M/t | Power(W) | 2.2 kw | |
Certification | CE and ISO9001:2000 | Warranty | one whole year | |
After-sales Service Provided | Overseas service center available |
Product Description
Specifications
RJW851-190cm high speed heavy water jet home textile machine:1,Designed RPM:1200
2,ROJ feeder
3,ETU and ELO
4, all services
RJW851-190cm high speed heavy water jet loom with cam shedding device :
1.Products details:
1). Name: RJW series of water jet loom
2). Introduction:Main products: Two series of RJW851 and RJW408, including more than 20 kinds of water-jet looms. To meet production of various fabric, the loom can be mounted with crank shedding device, cam shedding device, dobby shedding device, jacquard device and vertical double beam, meanwhile the loom can also be designed specially in terms of customer special requirements
3). Products specifications:
Specifications of RJW series of water jet loom | |||
Type | RJW851 | RJW408 | |
Reed space | 135, 150, 170, 190, 210, 230, 260, 280, 300, 320, 340, 360 (cm) | ||
Useful reed space | Nominal R/S minus 2 cm to 50cm | ||
Frame | Box frame type( Driving section is in an oil bath) | ||
Driving | Brake | Direct stop mechanism by an electromagnetic brake | |
Control | Push and touch button(Arrange, run, stop, forward inching, reverse inching, one step reverse) | ||
Motor | Rush start motor | ||
Motor capacity | 1.5KW, 1.8KW, 2.2KW, 2.8KW, 3.2KW, 3.7KW, 4.5KW. | ||
Beating | Crank beating | ||
Let-off | System | Automatic mechanical and continuous let-off, or electronic let-off. One or vertical two roll | |
Warp beam | 800MMFlange,178MMbarrel | ||
Take-up | System | Mechanical or electronic continuous take-up | |
Pick density | Normal:5-60picks/cm,Special:3-70picks/cm | ||
Cloth wind-up diameter | 420mm, 520mm, 600mm. | ||
Shedding | Plain shedding | Crank shedding( heald frame number:2 to 6), 1/1 fabric | |
Cam shedding | Cam shedding ( heald frame number:2-10),plain, twill, satin fabric | ||
Dobby shedding | Positive/negative Heald frame number:16(max),electronic and mechanical reading system, plain, twill, satin or complex design | ||
Jacquard | 1408, 2688, 5120 lifting hooks, electronic jacquard device | ||
Weft Insertion | Measuring & storage | 300RDP type mechanical measuring turbo blower(single nozzle) or electronic weft feeder(1-4 nozzles) | |
Pump | Type: M,L,H, single or double | ||
Piston of pump | 32/17,32/18,32/20,36/22,36/24,36/26, 39/26,39/28,39/30,50/35,ceramic piston | ||
Nozzle needle | ST20/10, ST30/10, ST45/20, SD75/40. | ||
Weft filling | One, two, three, four nozzle | ||
Filling feeler | Electronic, optical, and self-control | ||
Selvage | Twisting by star, planetary gears | ||
Electrical Part | Made in China import | Main control board, AC contactor, transformer, NC interface, selvage break system ,waste yarn break system, overheating and overload protection | |
Electronic meter | .Count and display: rotational speed, total yield, team yield, total efficiency, team efficiency Cloth length auto control, Stopping analysis and display | ||
Other devices | A cloth roller, a weft density gear, a trashcan ,a set of nozzle needle |
4).Company List
2. About our factory:
experience:We are the biggest manufacturer of all kinds textile machinery in China, specialized in the line of water jet loom and air jet loom more than ten years. We have exported our looms to many countries like Turkey, Syria, Egypt, Iran, India, Malaysia and so on. With our competitive prices, experience, efficiency and reliability, we have won confidence and goodwill among our many business clients worldwide. Hereby, we would like to do our best to you with our best looms and service.
Service:The company attaches importance to after-sales service department all along, regard improving service quality and service level as the key of enterprise management to, take the product quality and service quality as the enterprise life, act for customer anxiously, consider about customer need, actively solving the problems in manufacturing process. Arranges skill training, technology communication, skill testing and ideological education for after-sales service staff regularly, and established and actualized strict management system and operating detailed rules. There are professional component warehouse and 8 special cars for after-sales service, which are more flexible and improving the efficiency of after sales service. The professional, excellent, prompt and active after-sales service team cleans up all customer trouble and win the customer’s appraise, at same time set up the advanced industrial benchmark.
Voice goes far in high place; ride on the crest of success !
