Jacqard Shedding Water Jet Loomneedle Loom

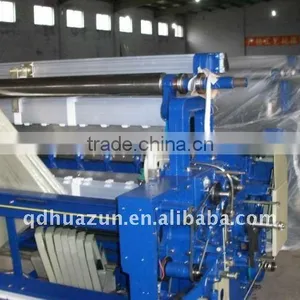

Jacqard Shedding Water Jet Loomneedle Loom thumbnail-1

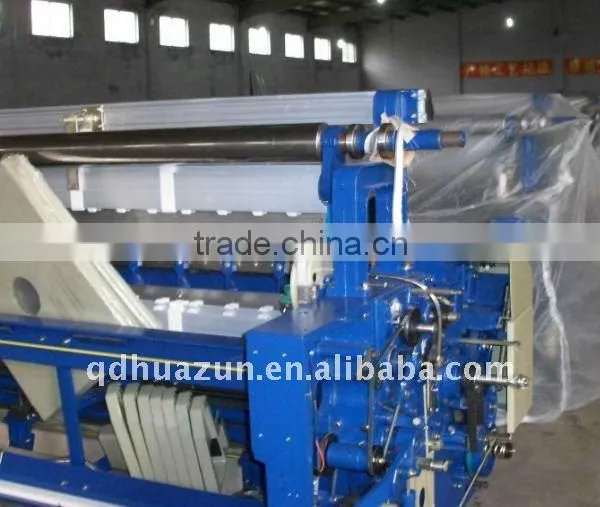

Jacqard Shedding Water Jet Loomneedle Loom photo-1
US$ 8,800 - 13,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
EKA
Model Number:
RJW408-230CM
Contact Supplier Request Quote Chat Now
Qingdao Huazun Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name EKA
Model Number RJW408-230CM
Machine Type Other, water jet loom
Product Lace
Material Capabilities Fiber
Condition New
Certification CE

Specifications

jacqard shedding water jet looms machine
two pumps jacquard loom machine
two nozzles
dobby shedding
electronical storage



     RJW 408 IS NEW STYPE WATER JET LOOM ,WICH HAVE GOT WHOLE IN NOVATION APLICABLE TO WEAVING HIGH WEIGHT AND HIGH DENSITY CLOTH ,THE GREAT IMPROVEMENT OF VIBRATION REDUCTION, THE EXCELLENT STABILITY ,THE SPEED AND HIGH EFICIENCY CAN BE SUITABLE FOR WEAVING MEDIUM AND PREMIUM CLOTH.

      THE OPTIONAL MECHANICAL WEFT STORAGE SYSTERM ,2NOZZLE AND 3 NOZLLE ELECTRNNIC WEFT STORAGE,DOBBY SHEDDING AND TAPPET SHEDDING CAN BE MOUNTED ON THIS TYPE OF LOOM.







     RJW 408 IS NEW STYPE WATER JET LOOM ,WICH HAVE GOT WHOLE IN NOVATION APLICABLE TO WEAVING HIGH WEIGHT AND HIGH DENSITY CLOTH ,THE GREAT IMPROVEMENT OF VIBRATION REDUCTION, THE EXCELLENT STABILITY ,THE SPEED AND HIGH EFICIENCY CAN BE SUITABLE FOR WEAVING MEDIUM AND PREMIUM CLOTH.

      THE OPTIONAL MECHANICAL WEFT STORAGE SYSTERM ,2NOZZLE AND 3 NOZLLE ELECTRNNIC WEFT STORAGE,DOBBY SHEDDING AND TAPPET SHEDDING CAN BE MOUNTED ON THIS TYPE OF LOOM.



1.Products details:
1). Name: RJW series of water jet loom
2). Introduction:Main products: Two series of RJW851 and RJW408, including more than 20 kinds of water-jet looms. To meet production of various fabric, the loom can be mounted with crank shedding device, cam shedding device, dobby shedding device, jacquard device and vertical double beam, meanwhile the loom can also be designed specially in terms of customer special requirements







3). Products specifications:







Specifications of RJW series of water jet loom

Type

RJW851

RJW408

Reed space

135, 150, 170, 190, 210, 230, 260, 280, 300, 320, 340, 360 (cm)

Useful reed space

Nominal R/S minus 2 cm to 50cm

Frame

Box frame type( Driving section is in an oil bath)

Driving

Brake

Direct stop mechanism by an electromagnetic brake

Control

Push and touch button(Arrange, run, stop, forward inching, reverse inching, one step reverse)

Motor

Rush start motor

Motor capacity

1.5KW, 1.8KW, 2.2KW, 2.8KW, 3.2KW, 3.7KW, 4.5KW.

Beating

Crank beating

Let-off

System

Automatic mechanical and continuous let-off, or electronic let-off. One or vertical two roll

Warp beam

800MMFlange,178MMbarrel

Take-up

System

Mechanical or electronic continuous take-up

Pick density

Normal:5-60picks/cm,Special:3-70picks/cm

Cloth wind-up diameter

420mm, 520mm, 600mm.

Shedding

Plain shedding

Crank shedding( heald frame number:2 to 6), 1/1 fabric

Cam shedding

Cam shedding ( heald frame number:2-10),plain, twill, satin fabric

Dobby shedding

Positive/negative Heald frame number:16(max),electronic and mechanical reading system, plain, twill, satin or complex design

Jacquard

1408, 2688, 5120 lifting hooks, electronic jacquard device

Weft Insertion

Measuring & storage

300RDP type mechanical measuring turbo blower(single nozzle) or electronic weft feeder(1-4 nozzles)

Pump

Type: M,L,H, single or double

Piston of pump

32/17,32/18,32/20,36/22,36/24,36/26,

39/26,39/28,39/30,50/35,ceramic piston

Nozzle needle

ST20/10, ST30/10, ST45/20, SD75/40.

Weft filling

One, two, three, four nozzle

Filling feeler

Electronic, optical, and self-control

Selvage

Twisting by star, planetary gears

Electrical

Part

Made in China  import

Main control board, AC contactor, transformer, NC interface, selvage break system ,waste yarn break system, overheating and overload protection

Electronic

meter

.Count and display: rotational speed, total yield, team yield, total efficiency, team efficiency Cloth length auto control, Stopping analysis and display

Other devices

A cloth roller, a weft density gear, a trashcan ,a set of nozzle needle







 jacqard shedding water jet loomneedle loom







4).Company List







 jacqard shedding water jet loomneedle loomjacqard shedding water jet loomneedle loom































2. About our factory:
experience:We are the biggest manufacturer of all kinds textile machinery in China, specialized in the line of water jet loom and air jet loom more than ten years. We have exported our looms to many countries like Turkey, Syria, Egypt, Iran, India, Malaysia and so on. With our competitive prices, experience, efficiency and reliability, we have won confidence and goodwill among our many business clients worldwide. Hereby, we would like to do our best to you with our best looms and service.













Service:The company attaches importance to after-sales service department all along, regard improving service quality and service level as the key of enterprise management to, take the product quality and service quality as the enterprise life, act for customer anxiously, consider about customer need, actively solving the problems in manufacturing process. Arranges skill training, technology communication, skill testing and ideological education for after-sales service staff regularly, and established and actualized strict management system and operating detailed rules. There are professional component warehouse and 8 special cars for after-sales service, which are more flexible and improving the efficiency of after sales service. The professional, excellent, prompt and active after-sales service team cleans up all customer trouble and win the customer’s appraise, at same time set up the advanced industrial benchmark.















Voice goes far in high place; ride on the crest of success !
