RJW408 Series -2 New Heavy Type Water Jet Loom With Super High Speed, Stable Running and Wide Adaptability

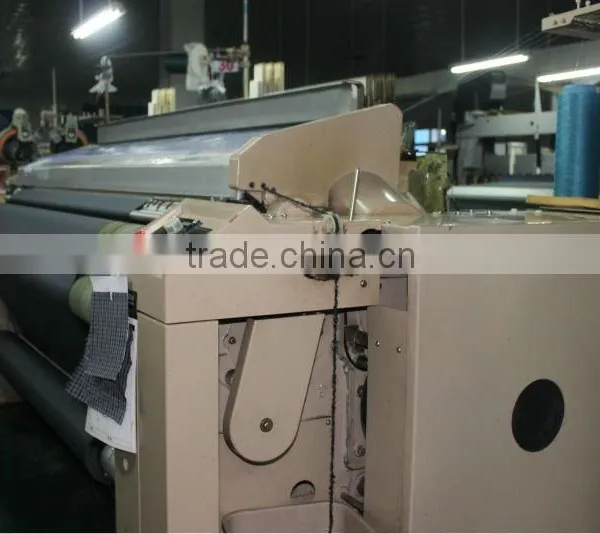

RJW408 Series -2 New Heavy Type Water Jet Loom With Super High Speed, Stable Running and Wide Adaptability photo-1
US$ 3,700 - 7,655 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Water Jet Loom
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Water Jet Loom
Place of Origin Shandong, China
Brand Name EKA
Model Number RJW408 SERISE HEAVY WATER JET LOOM

Specifications

1, DESIGNED RPM:1200
2,MTU and MLO
3,ELECTRONIC FEEDER
4,DENKEN ELECTRIC FEEDER
5,CAM SHEDDING, DOBBY SHEDDING OR JACQUARD

RJW 408 SERIES NEW TYPE HEAVY WATER JET LOOM:





1-6 nozzle weft selecting freely.



> Configurable shedding devices: crank shedding; cam shedding; dobby shedding; jacquard.



> Optional reed width: 135,150,170,190,210,230,260,280,300,320,340,360CM



> The weft density range: 4-100 pick/cm (Identified according to actual weft yarn specifications and fabric weave).



> Maximum speed: 900RPM/min (Identified according to actual weft yarn specifications and fabric weave).



> Heald frame number: cam shedding 2-14 pieces; dobby shedding 16 pieces.



> Install power: 2.8kw-5.4kw





Robust frame structure: Detached sturdy double-sided box frame which reduces vibration at high-speed operation. Because of this reduces vibration, the weft insertion and beating motion are much more stabilized which keeps fabric quality high.

Its main drive is contained in an oil bath to achieve stable high-speed operation.





Weft insertion methodically at high speed: the weft insertion angle is enlarged by improvement in the beating curve thatensure weft insertion stably for all kinds of chemical fiber materials, as well as the great improvement of unstable situation of shedding and warp yarn tension, ensure weaving the differentiation fabric with high quality.







Stable running: the robust frame structure, rigid let off and take up stabilize the loom running and the weaving range is increased from thin to middle-thick fabric, and from low to high density fabric. Even weave fabrics of complicated or unbalanced construction, vibration is low.
