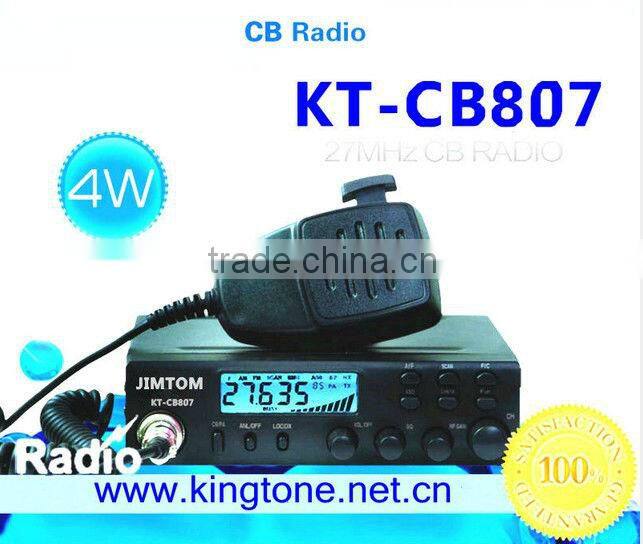

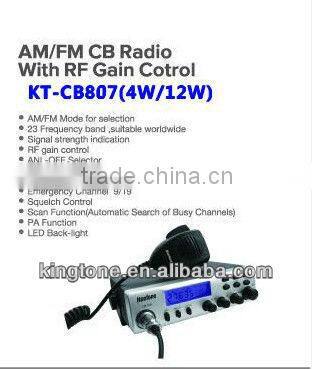

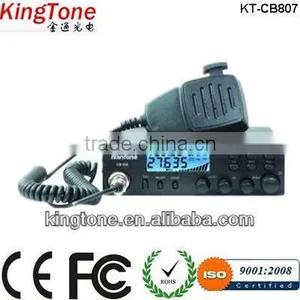

AM/FM CB Radio With RF Gain Control Mobile/Car Radios

AM/FM CB Radio With RF Gain Control Mobile/Car Radios thumbnail-1
AM/FM CB Radio With RF Gain Control Mobile/Car Radios photo-1
US$ 1 - 190 MOQ: 100 Sets
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Kingtone
Model Number:
KT-CB807
Contact Supplier Request Quote Chat Now
Quanzhou Kingtone Optics & Electronics Technology Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Kingtone
Model Number KT-CB807
Type Vehicle Mouted
Dimensions 160*140*44mm
Frequency Range 25-28MHz(Optional)
Storage Channel 40
Talk Range 30KM

Specifications

AM/FM CB Radio With RF Gain Control Mobile/Car Radios:
ASQ Function
ANL-OFF Selector
LOC-DX Selector
LED Back-light

  AM/FM CB Radio With RF Gain Control Mobile/Car Radios



Product info:CB-807 (CE  and ROHS)

FEATURES:
1.      AM/FM Mode For Selection
2.      Signal Strength Indication.
3.      Full 4 Watts RF power
4.      RF Gain Control
5.      ANL-OFF Selector
6.      LOC-DX Selector
7.      ASQ Function
8.      Emergency Channel 9/19
9.      Squelch Control
10.    Scan Function(automatic search of busy channels)
11.    Memory channel(M1-M4) Selection
12.    PA Function
13.    LED back-light
14.    No License Required.
Technical Specification:



GENERAL



Frequency range

25.615-28.305MHz

Frequency control

P.L.L

Channels

40AM/FM

Power supply

13.8Vdc±15%

Operating temperature

-10°C~+55°C

Weight

About 1.3kg

Size

160 (W)×140(D)×44mm (H)

TRANSMITTER



RF power output

4W(at 13.8Vdc)

Carrier freq. error

<±800Hz

Modulation

60% to 70% @ 8mV 1 kHz audio tone input (AM)

80% to 90% @20mV 1 kHz audio tone input (AM)

1.5 KHz @8 mV 1 kHz audio tone input (FM)

2 KHz Hz @50 mV 1 kHz audio tone input (FM)

Spurious emissions

60dBc(typical)

RECEIVER



Reference sensitivity

              -118dBm @ 12dB SINAD (FM)

              -107dBm @ 12dB SINAD (AM)

Current consumption

180mA(stand-by)

System

Double conversion with CPU controlled

Audio output

2.5w at 10% THD,16ohm loading





Standard Package Contains:



1 x KT-CB807 Radio



1 x Speaker Mic



1 x Mounting Bracket



1 x DC Cable



1 x English Manual







Warranty: One year for Radio / Six Month for Accessory.



AM/FM CB Radio With RF Gain Control Mobile/Car Radios



AM/FM CB Radio With RF Gain Control Mobile/Car Radios
