Home > Products > RGB led neon flex > Holiday Decorative Led Neon Flex Price Flex LED Neon Rope Light
Holiday Decorative Led Neon Flex Price Flex LED Neon Rope Light
- FOB Guangzhou
- T/T Credit Card PayPal
You May Like
Product Details
| LED Light Source | SMD5050 | Input Voltage(V) | 24V | |
| Lamp Power | 14.4 | Lamp Luminous Flux(lm) | 1000 | |
| Lamp Luminous Efficiency(lm/w) | 80 | Color Temperature(CCT) | Other, RGB | |
| Working Temperature(℃) | -20, +45 | Working Lifetime(Hour) | 50000 | |
| Lamp Body Material | PVC | IP Rating | IP67 | |
| Certification | CE, EMC, LVD | Emitting Color | Changeable | |
| Place of Origin | Guangdong, China | Brand Name | MATT | |
| Model Number | OL-RGB-NF-24V |
-50meters/carton,
-Carton size: 36x36x30cm
-Gross weight : 22-23KGS per carton ;
-Standard carton package for Led Neon Flex
Product Description
Led Neon Flex is comprised of solid-state Light Emitting Diodes (LEDs) in series solder on Flexible PCB housed by an inner plastic extrusion core. the light source has SMD2835 and SMD5050,An UV stable outer plastic jacket further protects the inner core. The plastic jacket will be the translucent colored and the LED will be Red, Orange, Blue, Yellow, Green and White. Base our patented technical, we produce the Neon Flex with a continuously color linear effect as well as Glass Neon.
RGB LED NEON FLEX - HIGHLIGHTS
♦1). Waterproof IP65 , ok for indoor / outdoor use..
♦2). No cold weather start problems or color shift.
♦3). Eco-friendly, energy-effcient, durable, long-life.
♦4). RGB controller or DMX 512 controller available.
♦5). Vivid NEON lighting effect, uniform light, no dots.
♦6). SMD 5050 LED - 0.2W/LED (60mA) - Super Bright
♦7). Flexible, bendable, unbreakable & cuttable (cut at cutting marks).
♦8). Complete kit including adapters, connectors & mounting clips enables easy installation.
♦9). Optically modified PVC extrusion : UV stable ; and PVC with heat/cool stabilizer, extremely high /low temp. resistant .
♦10). 4 X Pure copper wire (0.75 sq . m . measure) as conducting wire, reducing line loss and volt. drop , more stable & safer.
RGB color LED Neon Flex _ 24V _ Domed shape _ Size : 13.5x27mm
Domed Led Neon Flex Specification:
| | |
| Model | OL-NF-24V | |
| Volt. | DC24V | |
| Cut Length | 0.168m | |
| LED Type | SMD5050 | |
| LED Qty | 72LEDs/m | |
| Power | 14.4W/m | |
| IP Grade | IP65 | |
| Size | 13.5x27mm | |
| Beam | 270 degrees | |
| Color | Multi 7-color changing | |
| Warranty | 2 years | |
| Lifespan | 50,000 hours | |
| Roll Length | 50m/roll | |
| Carton size | 36x36x30cm | |
| G.W | 23.5Kgs | |
Led Neon Flex _ Accessories :

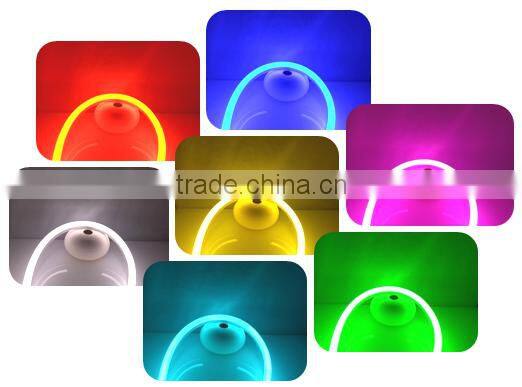

RGB LED NEON FLEX _ Multi colors changing
RGB LED NEON FLEX _ Accessories
RGB LED NEON FLEX _ 50m / roll / carton :
RGB LED Neon Flex _ DMX 512 controller _ changing modes :
1. Black | 11. RGB change | 21. Green/Yellow Smooth |
2. Static Red | 12. Color change | 22. Blue/Cyan Smooth |
3. Static Green | 13. RGB Fade | 23. Red/Purple Smooth |
4. Static Blue | 14. Color Fade | 24. Blue/White Smooth |
5. Static Yellow | 15. Red/Green Smooth | 25. YPC Smooth |
6. Static Purple | 16. Red/Blue Smooth | 26. RGB Smooth |
7. Static Cyan | 17. Green/Blue Smooth | 27. Color Smooth |
8. Static White | 18. Red/Yellow Smooth | 28. RGB Dimming |
9. RGB Blink | 19. Green/Cyan Smooth | 29. DMX Decode |
10. Color Blink | 20. Blue/Purple Smooth | 30. DMX Mode |
LED NEON FLEX _ INSTRUCTION
* Use a heat gun to shrink the tubing, heat it evenly, until it 's snug to led neon flex and the edges are slightly beading from glue!
DMX 512 controller specs
Parameter
Drawing
Wiring diagram
Tips, if one of controller is not enough,power repeater used for expanding power output.
♥Our Promise: 1. Provide solutions and high quality products.
2. Streamline the buying and paying processes.
3. Protection of your sale area, ideas of design and all your private information.
4. Deliver the goods to our customers all over the world with speed and precision.
♥Our Service: 1. Provide strict quality check for each part, each process before export.
2. Provide professional person to communicate with you before the order.
3. Send extra accessories to help fix the lamp for free international express.
4. Provide optimum system solution based on each client’s specific requirement.
5. If accessories can’t solve the problem, we will send you the replacement lamp directly.
Guangzhou Matt Electrical Lighting Co., Ltd. is a professional LED Neon Flex manufacturer which integrates R&D, production, marketing etc service. Since our company's foundation, we've been working for LED lighting research and popularization. After years' development, our company has formed a complete set of standard systems in management, technology, quality and service. With over 6 years expenrience, we are confident to provide excellent quality and service to customers.
LED NEON FLEX _ CERTIFICATES

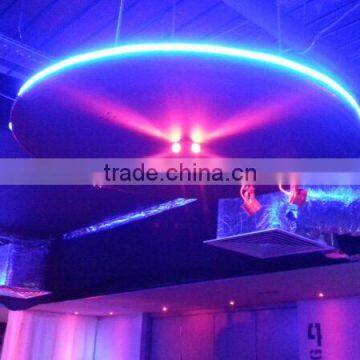

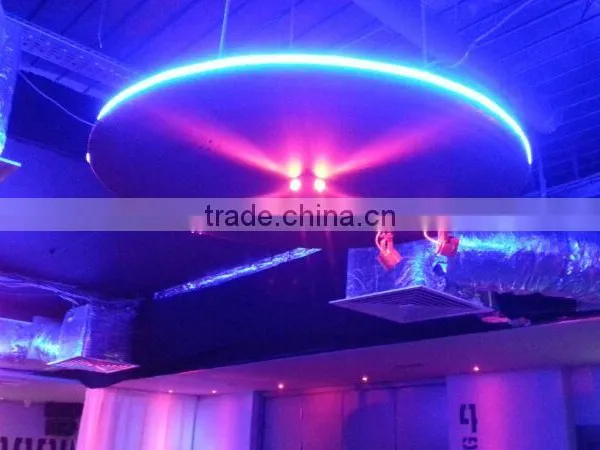

LED NEON FLEX _ APPLICATIONS
- Path & contour marking _ Elegant interior decoration _ Backlighting for larger size ad-signs
- Landscape outlines _ Signal lighting _ Swimming pool _ Car & motorcycle decorative lighting
- Architectural decorative lighting _ Archway Lighting _ Canopy Lighting _ Bridge edge lighting
- Amusement park lighting _ theater lighting _ Emergency hallway lighting _ Building outlines
- Auditorium walkway _ Stairway accent lighting _ Emergency Exit path lighting _ Cove lighting
1. How often can led neon flex be cut?
- AC240V _ cut intervals : 0.858m ; AC120V _ cut intervals : 0.429m
- DC24V _ cut intervals : 0.143m ; DC12V _ cut intervals : 0.072m
( There're printed cutting marks on led neon flex, easy to cut. )
2. Max. run length ?
- 240V /120V _ one power cable could load 50m in one continous line.
( 240V/120V , no need LED transformer, there's one small power convertor on power cable to convert AC to DC)
- DC24V _ max. run length is 20m powered from one end ; 40m powered from both ends.
- DC12V _ max. run length is 10m powered from one end ; 20m powered from both ends.
( If running too many meters, it will cause the volt. drop, shorten the life of the LEDs and may damage the transformer. )
3. The difference : milky white or colored - PVC skin ?
- The color with colored PVC skin looks _ deeper.
( Colored PVC skin _ red, blue, green, yellow , orange , pink )
- The color with milky white PVC skin looks _ slightly brighter.
4. Minimum bending radius ?
- Domed-shape LED neon flex _ R 40mm ( sideways bending )
- Flat mini LED neon flex _ R 20mm ( sideways bending )
5. Lead time ?
- Normal lead time : around 5-7 working days
6. Minimum order quantity ?
- One meter
Any questions feel free to contacting us, warmly welcome to visit us at any time.
