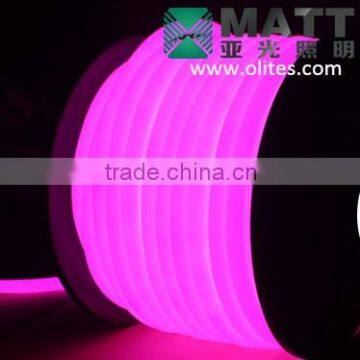

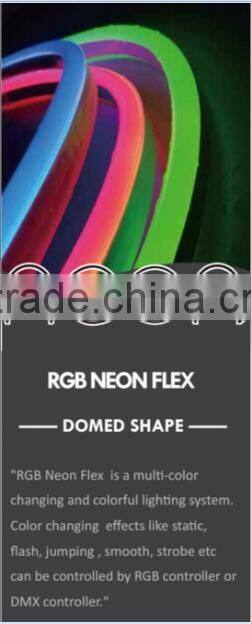

2016 waterproof IP68 Flexible SMD RGB LED neon Herz licht
RGB LED NEON FLEX - HIGHLIGHTS :
1). 4 X Pure copper wire (0.75 sq . m . measure) as conducting wire, reducing line loss and volt. drop , more stable & safer.
2). Optically modified PVC extrusion : UV stable ; and PVC with heat/cool stabilizer, extremely high /low temp. resistant .
3). Complete kit including adapters, connectors & mounting clips enables easy installation.
4). Flexible, bendable, unbreakable & cuttable (cut at cutting marks).
5). SMD 5050 LED - 0.2W/LED (60mA) - Super Bright
6). No cold weather start problems or color shift.
7). Vivid NEON lighting effect, uniform light, no dots.
8). Waterproof IP65 , ok for indoor / outdoor use.
9). Eco-friendly, energy-effcient, durable, long-life.
10). RGB controller or DMX 512 controller available.
|
|
|
| Specification | ||
| Model | OL-RGB-NF-24V | |
| Volt. | DC24V | |
| Cut Length | 0.168m | |
| LED | SMD5050 | |
| LED QTY | 72 LED/m | |
| Power | 14.4W/M | |
| IP Grade | IP65/IP68 | |
| Size | 13.5x27mm | |
| Roll Length | 50m/roll | |
| Carton size | 36x36x30cm | |
| G.W. | 23.5KGS | |
| Warranty | 2 years | |
| Lifespan | 50,000hours | |
| Color | Multi color 7 color changing | |
RGB LED NEON FLEX _ Accessories :
1 ) Special packing can be customized like colored boardcards
2) Special length can be packing with different size reel
3) Standard packing is 25m per roll, weight : 13 Kg
50 m per roll, weight: 25 Kg
4) Strong protection for long distance shipment by Express or sea container
LED NEON FLEX _ INSTRUCTION
* Use a heat gun to shrink the tubing, heat it evenly, until it 's snug to led neon flex and the edges are slightly beading from glue!
DMX 512 controller specs :
RGB LED Neon Flex _ DMX 512 controller _ changing modes
1. Black |
11. RGB change |
21. Green/Yellow Smooth |
2. Static Red |
12. Color change |
22. Blue/Cyan Smooth |
3. Static Green |
13. RGB Fade |
23. Red/Purple Smooth |
4. Static Blue |
14. Color Fade |
24. Blue/White Smooth |
5. Static Yellow |
15. Red/Green Smooth |
25. YPC Smooth |
6. Static Purple |
16. Red/Blue Smooth |
26. RGB Smooth |
7. Static Cyan |
17. Green/Blue Smooth |
27. Color Smooth |
8. Static White |
18. Red/Yellow Smooth |
28. RGB Dimming |
9. RGB Blink |
19. Green/Cyan Smooth |
29. DMX Decode |
10. Color Blink |
20. Blue/Purple Smooth |
30. DMX Mode |
Our Promise: 1. Provide solutions and high quality products
2. Streamline the buying and paying processes
3. Deliver the goods to our customers all over the world with speed and precision
4. Protection of your sale area, ideas of design and all your private information
Our Service: 1. Provide professional person to communicate with you before the order.
2. Provide strict quality check for each part, each process before export.
3. Provide optimum system solution based on each client’s specific requirement.
4. Send extra accessories to help fix the lamp for free international express.
If accessories can’t solve the problem, we will send you the replacement lamp directly.
Guangzhou Matt Electrical Lighting Co., Ltd. is a professional LED Neon Flex manufacturer which integrates R&D, production, marketing etc service. Since our company's foundation, we've been working for LED lighting research and popularization. After years' development, our company has formed a complete set of standard systems in management, technology, quality and service. With over 6 years expenrience, we are confident to provide excellent quality and service to customers.
LED NEON FLEX _ CERTIFICATES :
RGB LED NEON FLEX _ APPLICATIONS :
- Path & contour marking _ Elegant interior decoration _ Backlighting for larger size ad-signs
- Landscape outlines _ Signal lighting _ Swimming pool _ Car & motorcycle decorative lighting
- Architectural decorative lighting _ Archway Lighting _ Canopy Lighting _ Bridge edge lighting
- Amusement park lighting _ theater lighting _ Emergency hallway lighting _ Building outlines
- Auditorium walkway _ Stairway accent lighting _ Emergency Exit path lighting _ Cove lighting
1. How often can RGB led neon flex be cut ?
- cut intervals : 0.168m
( There're printed cutting marks on led neon flex, easy to cut. )
2. Max. run length of RGB LED neon flex?
- Max. 20m in one continous line.
( If running too many meters, it will cause the volt. drop, shorten the life of the LEDs and may damage the transformer. )
3. Minimum bending radius?
- R 40mm ( sideways bending )
4. Lead time ?
- Normal lead time : around 5-10 working days
5. Minimum order quantity ?
- One meter
Any questions feel free to contacting us for the LED neon flex, warmly welcome to visit our factory at any time.
