Specifications
energy economy greatly;meters and automatic stopping devices to detect warp
high speed,
automatic,
low noise.loom

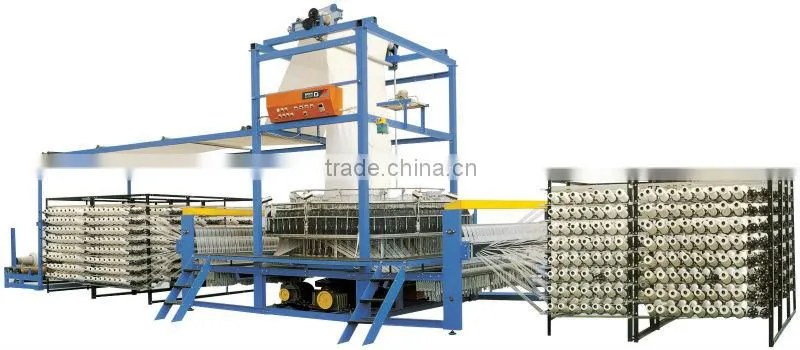

durable six-shuttle weaving machines circular looms
Characteristics:
With cam curve after being specially designed, our multi-shuttle circular looms can achieve the energy economy greatly; meters and automatic stopping devices to detect warp/weft breaking and monitor weft ending can be fixed to the looms . Furthermore, all the looms adopt brushless shuttles, holistic shuttles and bi-directional adjustable shuttles. Hereinto, the 6-shuttle circular loom can weave the sacks with the lay-flat width of 200-550mm, and the lay-flat width of 350-1000mm ,which fills up the gap in our national market.
Technical Parameters:
Type |
GY-YZJ 6/800G |
GY-YZJ 6/750G |
Number of shuttle |
6 |
6 |
Lay-flat width40warps/100mm |
350-800 |
350-800 |
Max. pcs |
720 |
720 |
Rotational speedr/min |
110-160 |
110-160 |
Total powerkw |
4.5 |
4.5 |
Capacity40wefs/100mm(m/h ) |
80-130 |
80-130 |
Weightkg |
2500 |
3000 |
Installing DimensionsL×W×H(mm) |
8600×2300×2730 |
9000×2300×2600 |
Remars |
Band type |
Shaft type |
