Specifications
high temperature resistanceantiabrasion and high strength
easy forming process

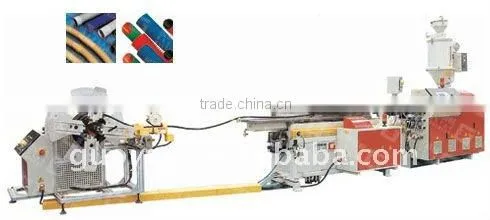

GY-GJ-PP,PE,PVC,EVA Corrugated Pipe Machine
Usage:
This kind of pipe owns the features of high temperature resistance , anti-erosion , antiabrasion and high strength . The pipe can be sued as oil pipe in automobile braking system and applied to high temperature gas, chemical liquid transferring.
GUOYANs special designed screw and special structure mould can protect the screw and barrel from easy-abrasion and give an easy forming process
Characteristics:
Material: PA, Temperature range: -40 °C -115 °C , the product does not contain halide, anti-oil, antiacid. Anti-inflamation rate is HB (U 94). The black color pipe is ultraviolet resistant.
Material: PP, Temperature range: -20 °C -110 °C , the product is anti-oil, anti-acid, anti-alkali. The black color pipe is ultraviolet resistant.
Material: PE, Temperature range: -40 °C -80 °C , the product is anti-oil, antiacid,anti-alkali.the black color pipe is ultraviolet resistant.
Technical Parameters:
Type |
GY-GJ-160 |
GY-GJ-75 |
GY-GJ-63 |
GY-GJ-25 |
GY-GJ-10 |
Screw Diameter(mm) |
Φ75 |
Φ60 |
Φ65 |
Φ45 |
Φ45 |
Ratio of L/D |
33:1 |
33:1 |
33:1 |
30:1 |
30:1 |
Total power(kw) |
100 |
80 |
70 |
50 |
45 |
Pipe Size(mm) |
Φ90-Φ160 |
Φ50-Φ75 |
Φ16-Φ63 |
Φ8-Φ20 |
Φ6-Φ10 |
Driving speed(m/min) |
5 |
10 |
10 |
15 |
20 |
