Home > Products > Flat shape led neon flex > Led neon flexible flat shaped mini led neon flex

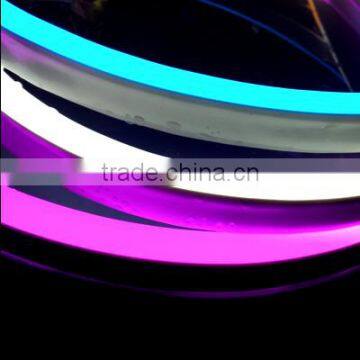

Led neon flexible flat shaped mini led neon flex
- 30000 Meter / Meters per Month
- FOB Guangzhou
- T/T Credit Card PayPal
Product Details
LED Light Source: | SMD2835 | Input Voltage(V): | 24V | Lamp Power: | 9 |
Lamp Luminous Flux(lm): | 1200 | Lamp Luminous Efficiency(lm/w): | 80 | Color Temperature(CCT): | Other, Blue |
Working Temperature(℃): | -20, +45 | Working Lifetime(Hour): | 50000 | Lamp Body Material: | PVC |
IP Rating: | IP67 | Certification: | CE, EMC, LVD | Emitting Color: | Blue |
Place of Origin: | Guangdong, China | Brand Name: | MATT/OLITES | Model Number: | OL-NF-24V-B |
Packaging Details
-50meters/carton
-Carton size: 36x36x30cm
-Gross weight : 22-23KGS per carton
-Standard carton package for Mini led neon flex
Product Description
Led neon flexible flat shaped mini led neon flex
12V neo flex lighting, 12V neo flex lighting, 12V neo flex lighting, 12V neo flex lighting, 12V neo flex lighting, 12V neo flex lightingLed neon flex price/smd led neon/flexible pcb cable assembly/led pcbD shaped led neon flex
Led Neon Flex is comprised of solid-state Light Emitting Diodes (LEDs) in series solder on Flexible PCB housed by an inner plastic extrusion core. the light source has SMD2835 and SMD5050,An UV stable outer plastic jacket further protects the inner core. The plastic jacket will be the translucent colored and the LED will be Red, Orange, Blue, Yellow, Green and White. Base our patented technical, we produce the Neon Flex with a continuously color linear effect as well as Glass Neon.
Led Neon Flex Features
1). 2 X Pure copper wire (0.75 sq . m . measure) as conducting wire, reducing line loss and volt. drop , more stable & safer.
2). Optically modified PVC extrusion : UV stable ; and PVC with heat/cool stabilizer, extremely high /low temp. resistant .
3). Complete kit including adapters, connectors & mounting clips enables easy installation.
4). Flexible, bendable, unbreakable & cuttable (cut at cutting marks).
5). SMD 2835 LED - 0.2W/LED (60mA) - Super Bright
6). No cold weather start problems or color shift.
7). Vivid NEON lighting effect, uniform light, no dots.
8). Waterproof IP65 , ok for indoor / outdoor use.
9). Eco-friendly, energy-effcient, durable, long-life.
Led Neon Flex 9 colors display
Led Neon Flex Shape, Domed Shape & Flat Shape
Domed RGB Led flex neon
Model | OL-NF-240V/120V/24V/12V | |
Volt. | AC240V/AC120V/DC24V/DC12V | |
Cut Length | 6LEDS/12LEDs/42LEDs/84LEDs | |
LED Type | SMD2835 | |
LED Qty | 84LEDs/m | |
Power | 9W/m | |
IP Grade | IP65/IP66/IP68 | |
Size | 13.5x27mm | |
Color | R/G/B/IB/Y/GY/W/WW/P | |
Skin Color | Milk white/Color Jacket/Crystal | |
Warranty | 2 years | |
Lifespan | 50000hours | |
Material | Anti-UV PVC | |
Working condition | Indoor or outdoor use: - 20°~ +60°C | |
Roll Length | 50.6m/roll | |
Carton size | 36x36x30cm | |
G.W | 23.5Kgs |
Flat Mini Led Neon Flex
Model | OL-M-NF-240V/120V/24V/12V | |
Volt. | AC240V/AC120V/DC24V/DC12V | |
Cut Length | 6LEDS/12LEDs/42LEDs/84LEDs | |
LED Type | SMD2835 | |
LED Qty | 84LEDs/m | |
Power | 9W/m | |
IP Grade | IP65/IP66/IP68 | |
Size | 11.5x18mm | |
Color | R/G/B/IB/Y/GY/W/WW/P | |
Skin Color | Milk white/Color Jacket/Crystal | |
Warranty | 2 years | |
Lifespan | 50000hours | |
Material | Anti-UV PVC | |
Working condition | Indoor or outdoor use: - 20°~ +60°C | |
Roll Length | 60m/roll | |
Carton size | 36x36x17.5cm | |
G.W | 17Kgs |
Led Neon Flex _ Accessories :
LED NEON FLEX _ APPLICATIONS
- Path & contour marking _ Elegant interior decoration _ Backlighting for larger size ad-signs
- Landscape outlines _ Signal lighting _ Swimming pool _ Car & motorcycle decorative lighting
- Architectural decorative lighting _ Archway Lighting _ Canopy Lighting _ Bridge edge lighting
- Amusement park lighting _ theater lighting _ Emergency hallway lighting _ Building outlines
- Auditorium walkway _ Stairway accent lighting _ Emergency Exit path lighting _ Cove lighting

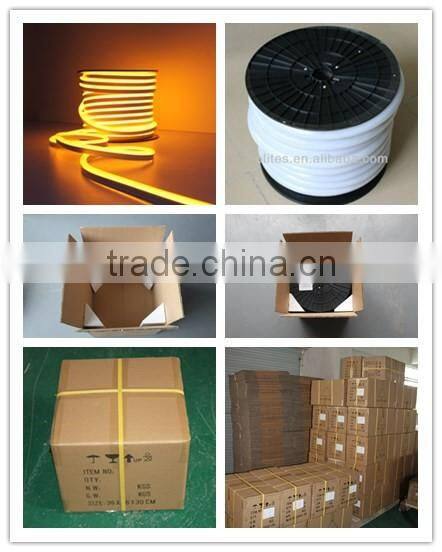

Led Neon Flex _ 50m/roll/carton
1 ) Special packing can be customized like colored boardcards
We have 3.5m/box,10m/roll,20m/roll and 50m/roll
2) Special length can be packing with different size reel
3) Standard packing is 50m per roll, weight : 23.5 Kg
4) Strong protection for long distance shipment by Express or sea container
Led Neon Flex _ Instruction :
* Use a heat gun to shrink the tubing, heat it evenly, until it 's snug to led neon flex and the edges are slightly beading from glue!
♥Our Promise: 1. Provide solutions and high quality products.
2. Streamline the buying and paying processes.
3. Protection of your sale area, ideas of design and all your private information.
4. Deliver the goods to our customers all over the world with speed and precision.
♥Our Service: 1. Provide strict quality check for each part, each process before export.
2. Provide professional person to communicate with you before the order.
3. Send extra accessories to help fix the lamp for free international express.
4. Provide optimum system solution based on each client’s specific requirement.
5. If accessories can’t solve the problem, we will send you the replacement lamp directly.
Guangzhou Matt Electrical Lighting Co., Ltd. is a professional LED Neon Flex manufacturer which integrates R&D, production, marketing etc service. Since our company's foundation, we've been working for LED lighting research and popularization. After years' development, our company has formed a complete set of standard systems in management, technology, quality and service. With over 6 years expenrience, we are confident to provide excellent quality and service to customers.
Led Neon light Certificates
1. How often can led strip be cut ?
- AC240V _ cut intervals : 0.858m ; AC120V _ cut intervals : 0.429m
- DC24V _ cut intervals : 0.143m ; DC12V _ cut intervals : 0.072m
( Tips, there're printed cutting marks on led neon flex, easy to cut. )
2. Max. run length ?
- 240V /120V _ one power cable could load 50m in one continous line.
( Tips,240V/120V , no need LED transformer, there's one small power convertor on power cable to convert AC to DC)
- DC24V _ max. run length is 20m powered from one end ; 40m powered from both ends.
- DC12V _ max. run length is 10m powered from one end ; 20m powered from both ends.
( Tips, if running too many meters, it will cause the voltage drop, which will be cause the different brightness and shortage life of the LEDs and damage the transformer. )
3. The difference, milky white or colored - PVC skin ?
- The color with colored PVC skin looks _ deeper.
( Tips, Colored PVC skin _ red, blue, green, yellow , orange , pink )
- The color with milky white PVC skin looks _ slightly brighter.
4. Minimum bending radius ?
- Domed-shape LED Strip _ R 40mm ( sideways bending )
- Flat mini LED Strip _ R 20mm ( sideways bending )
5. Lead time ?
- Normal lead time : around 5-7 working days
6. Minimum order quantity ?
- One meter
7. what is the color tempeture and wavelength of your lights?
- Red: 620nm-625nm
- Orange: 600nm-610nm
- Yellow: 587nm-590nm
- Blue 460nm-465nm
- Green: 515nm-520nm
- cool white: 6000-6500k 7000-7500k
- Natural White: 4000-4500k 4500k-5500k
- Warm whtie: 2500k-2800k 2800k-3200k 2200k-2300k 2800k-3500k
