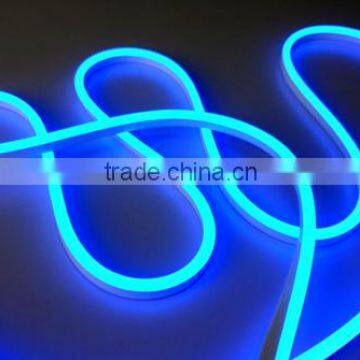

led neon flex light rope christmas light

Led Neon Light packaging :
-50meters/carton,
-gross weight : 22-23KGS per carton ;
-carton size: 36x36x30cm

led neon flex light rope christmas light

Led Neon Light Features :

1). 2 X Pure copper wire (0.75 sq . m . measure) as conducting wire, reducing line loss and volt. drop , more stable & safer.

2). Optically modified PVC extrusion : UV stable ; and PVC with heat/cool stabilizer, extremely high /low temp. resistant .

3). Complete kit including adapters, connectors & mounting clips enables easy installation.

4). Flexible, bendable, unbreakable & cuttable (cut at cutting marks).

5). SMD 2835 LED - 0.2W/LED (60mA)  -  Super Bright

6). No cold weather start problems or color shift.

7). Vivid NEON lighting effect, uniform light, no dots.

8). Waterproof IP65 , ok for indoor / outdoor use.

9). Eco-friendly, energy-effcient, durable, long-life.

Led Neon Light Shape : DOMED SHAPE  &  FLAT SHAPE

Domed Led Neon Light Specification :

	Model	OL-NF-240V/120V/24V/12V
	Volt.	AC240V/AC120V/DC24V/DC12V
	Cut Length	6LEDS/12LEDs/42LEDs/84LEDs
	LED Type	SMD2835
	LED Qty	84LEDs/m
	Power	9W/m
	IP Grade	IP65/IP66/IP68
	Size	13.5x27mm
	Color	R/G/B/IB/Y/GY/W/WW/P
	Skin Color	Milk white/Color Jacket/Crystal
	Warranty	2 years
	Lifespan	50000hours
	Material	Anti-UV PVC
	Working condition	Indoor or outdoor use:  - 20°~ +60°C
	Roll Length	50.6m/roll
	Carton size	36x36x30cm
	G.W	23.5Kgs

Flat Mini Led Neon Light Specification :

	Model	OL-M-NF-240V/120V/24V/12V
	Volt.	AC240V/AC120V/DC24V/DC12V
	Cut Length	6LEDS/12LEDs/42LEDs/84LEDs
	LED Type	SMD2835
	LED Qty	84LEDs/m
	Power	9W/m
	IP Grade	IP65/IP66/IP68
	Size	11.5x18mm
	Color	R/G/B/IB/Y/GY/W/WW/P
	Skin Color	Milk white/Color Jacket/Crystal
	Warranty	2 years
	Lifespan	50000hours
	Material	Anti-UV PVC
	Working condition	Indoor or outdoor use:  - 20°~ +60°C
	Roll Length	60m/roll
	Carton size	36x36x17.5cm
	G.W	17Kgs

Led Neon Light 9 colors display :

Led Neon Light _ Accessories :

 1 ) Special packing can be customized like colored boardcards

We have 3.5m/box,10m/roll,20m/roll and 50m/roll
2) Special length can be packing with different size reel
3) Standard packing is 50m per roll, weight : 23.5 Kg
4) Strong protection for long distance shipment by Express or sea container

Led Neon Light _ Instruction :

* Use a heat gun to shrink the tubing, heat it evenly, until it 's snug to led neon flex and the edges are slightly beading from glue!

Led Neon Light _ Certificates :

Led Neon Light _ Applications :

- Path & contour marking  _ Elegant interior decoration  _  Backlighting for  larger size  ad-signs

- Landscape outlines _ Signal lighting _ Swimming pool _ Car & motorcycle decorative lighting

- Architectural decorative lighting _ Archway Lighting _ Canopy Lighting  _  Bridge edge lighting

- Amusement park lighting _ theater lighting _ Emergency hallway lighting   _  Building outlines

- Auditorium walkway _ Stairway accent lighting _ Emergency Exit path lighting  _  Cove lighting

1. How often can led strip be cut ?

- AC240V _ cut intervals :  0.858m       ;     AC120V _  cut intervals :  0.429m

- DC24V  _  cut intervals :  0.143m       ;    DC12V    _ cut intervals  :  0.072m

   ( There're printed cutting marks on led neon flex, easy to cut. )

2. Max. run length ?

-  240V /120V  _ one power cable could load 50m in one continous line.

   ( 240V/120V , no need LED transformer, there's one small power convertor  on power cable to convert AC to DC)

- DC24V _ max. run length is 20m powered from one end ; 40m powered from both ends.

- DC12V _ max. run length is 10m powered from one end ; 20m powered from both ends.

  ( If running too many meters, it will cause the volt. drop, shorten the life of the LEDs and may damage the transformer. )

3. The difference : milky white or colored - PVC skin ?

-  The color with colored PVC skin looks _ deeper.

    ( Colored PVC skin _ red, blue, green, yellow , orange , pink  )

-  The color with milky white PVC skin looks _ slightly brighter.

4. Minimum bending radius ?

- Domed-shape LED Strip _   R 40mm    ( sideways bending )

- Flat mini LED Strip _   R 20mm    ( sideways bending )

5. Lead time ?

- Normal lead time : around 5-7 working days

6. Minimum order quantity ?

- One meter

7. what is the color tempeture and wavelength of your lights?

• Red: 620nm-625nm
• Orange: 600nm-610nm
• Yellow: 587nm-590nm
• Blue  460nm-465nm
• Green: 515nm-520nm
• cool white: 6000-6500k  7000-7500k
• Natural White: 4000-4500k 4500k-5500k
• Warm whtie: 2500k-2800k  2800k-3200k  2200k-2300k  2800k-3500k
