Home > Tools & Hardware > Hand Tools > Pliers > Muti-function Modular /networking Crimping Tool+DEC

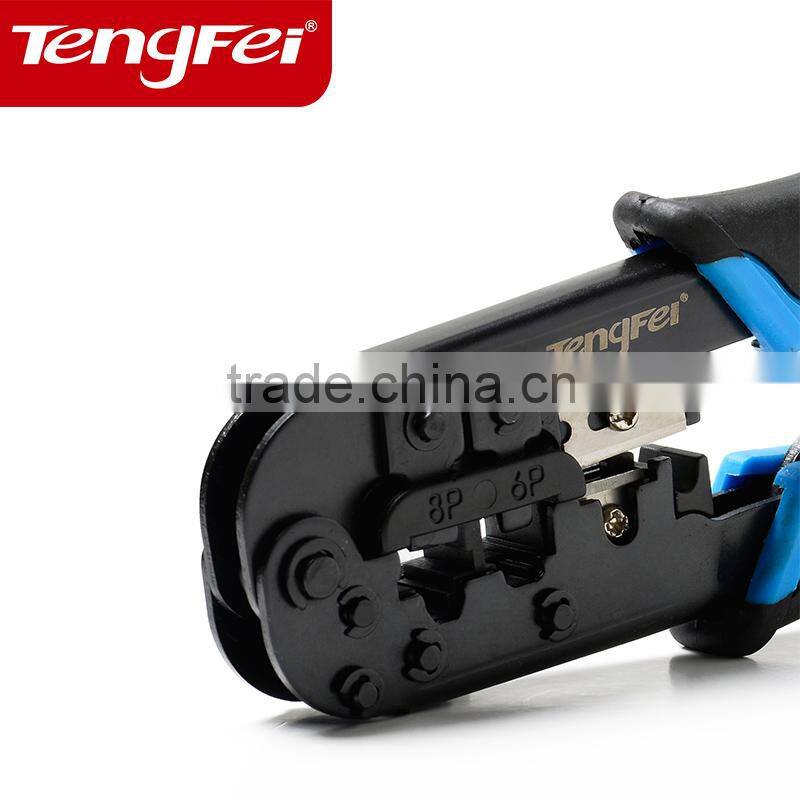

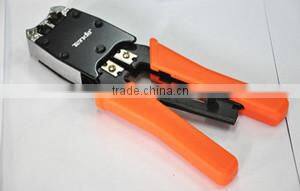

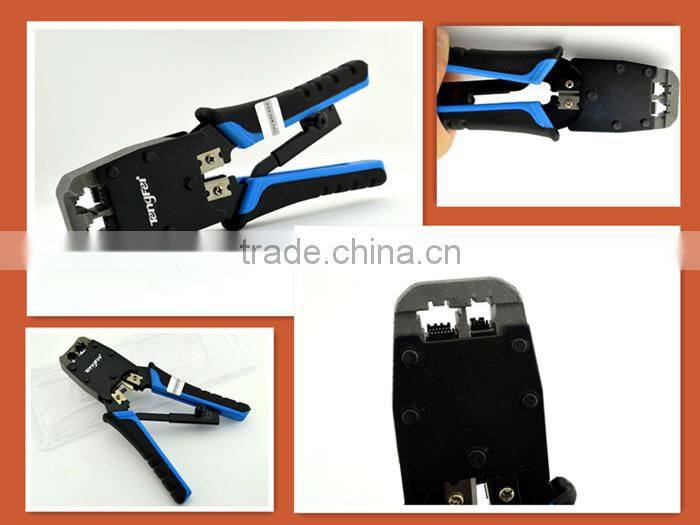

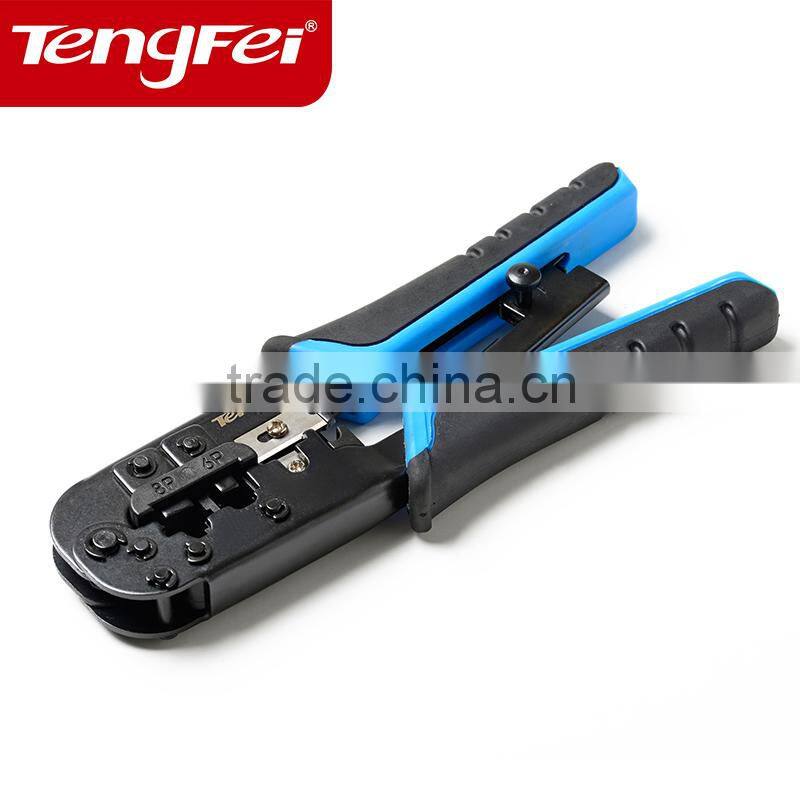

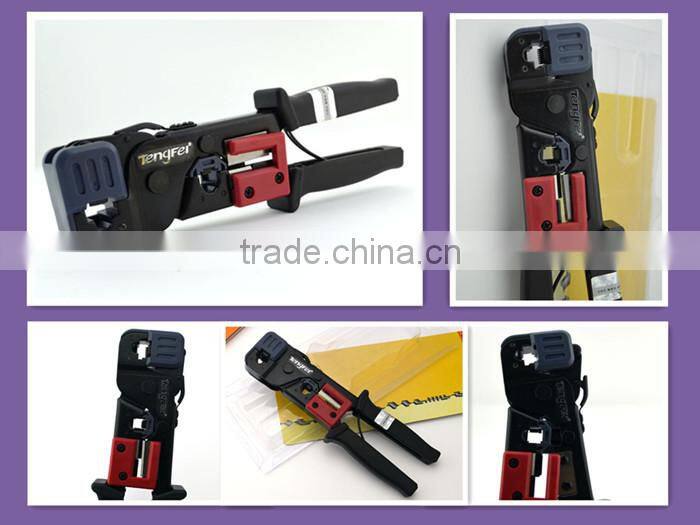

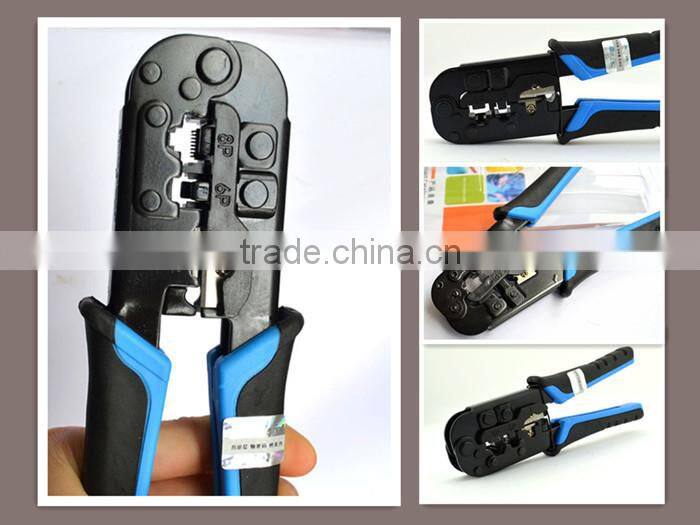

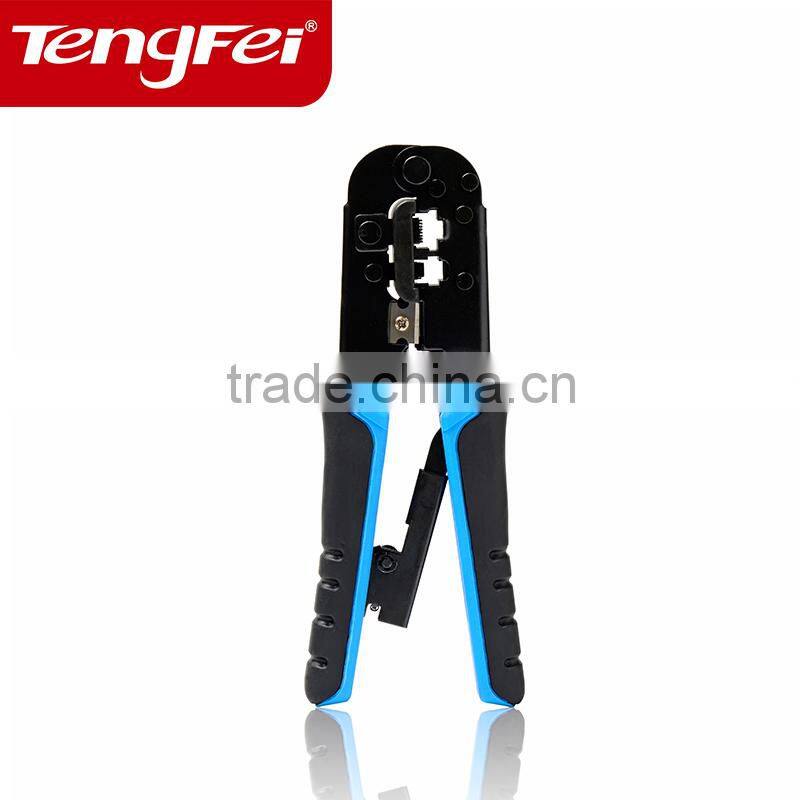

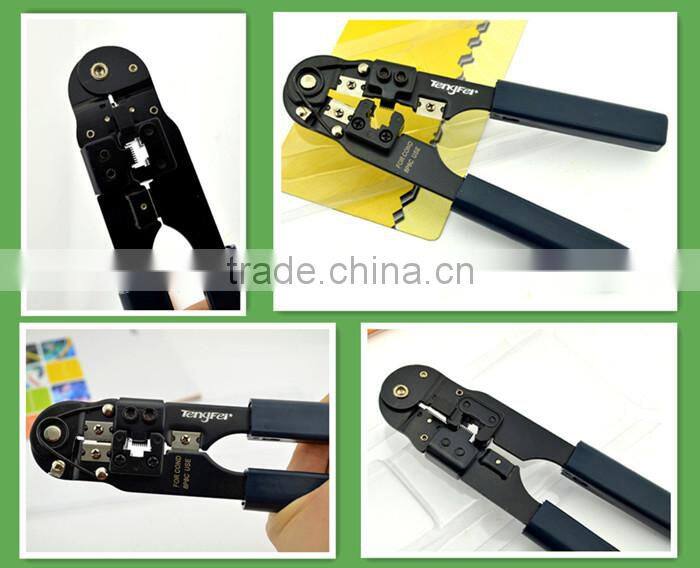

Muti-function Modular /networking Crimping Tool+DEC

Name: Muti-function Modular /networking Crimping Tool+DEC
Brand: Tengfei, TengFei/OEM
SKU: 122381029
Availability: InStock

Muti-function Modular /networking Crimping Tool+DEC thumbnail-1

Muti-function Modular /networking Crimping Tool+DEC photo-1

US$ 2.592 - 2.92 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Tengfei, TengFei/OEM

Model Number:

TF-N568R, TF-N568R

Contact Supplier Request Quote Chat Now

Shenzhen Jixiang Tengfei Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Tengfei, TengFei/OEM

Model Number TF-N568R, TF-N568R

Type Combination Pliers

Material Other, Carbon Steel, Carbon Steel

Application Wire Stripper

product name: Muti-function modular /networking crimping tool+DEC

specification

1.Origin:CN.
2.Brand:TengFei.
3.Application: Multi Functional
4.Packing:1pcs/box.
5.Payment:T/T.PAYPAL.

Instructions:

Non-Ratchet Type:Remove the closed lock to open the handles.

Ratchet Type:Squeeze the handles until it stops to open the handles.

1.Insert cable between stripper blades.

1a.Insert 4P/6P cble from the top end of the stripper black until it touches the stop guide.

1b.Insert 8P/10P cable into the two-bladed side of the tool's stripper and let it extend a litter past the lower cut blade.

2.Cutting modular cable:

Place the single-bladed side of the tool's cutter facing you and cut the modular cable to the desired length.Make sure to cut the ends of the cord straight across, not diagonally.

3.Squeeze handles until it stops, cable must be kept perpendicular and then pull from the tool.

4.Remove the outer jacket ,insert the stripped cable into the plug and be sure the left wire at one end matches the right wire at the other end.

5.Place modular plug with cable into the tool's holder.Make sure the stripped wire is between the tab and gold contacts. Squeeze handles until it stops.

6.Remove the crimped plug from the tool.

7.During the crimping process, you may turn the screw on the ratchet in counterclockwise direction to stop the incorrect operation.

8.To crimp "DEC"plug, follow step1 to step4.

Remove the screw on the left side of the 6P holder, insert the "DEC" plug and cable into the 6P holder and squeeze handles till it stops.

TF-	For Crimping Modular Plug
8086R	(4P4C/4P2C)&(6P6C/RJ-12) (6P4C/RJ-11)&(6P2C)
8086R	(8P8C/RJ-45)&(6P6C/RJ-12) (6P4C/RJ-11)&(6P2C)
210C	8P8C/RJ-45
200AR	10P10C, AMP 8P8C/RJ-45, 6P6C/RJ-12, 6P4C/RJ-11, 4P4C&4P2C PLUGS & DEC/OFF SET PLUG-6P6C
568R	8P8C/RJ-45, 6P6C/RJ-12, 6P4C/RJ-11
500R	8P8C/RJ-45, 6P6C/RJ-12, 6P4C/RJ-11 PLUGS
