Tengfei Hot Sale New Arrival 10P10C Hand Crimping Tool& RJ45 Crimping Tool

Tengfei Hot Sale New Arrival 10P10C Hand Crimping Tool& RJ45 Crimping Tool photo-1
US$ 1 - 5 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Tengfei
Model Number:
TF-200AR
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Tengfei
Model Number TF-200AR
Type Flat Nose
Material Carbon Steel
Application Other, Cutting, Multi Functional

Product Name: Tengfei Hot sale New Arrival 10P10C  Hand Crimping Tool& RJ45 Crimping Tool



Feature:

1.Multi functional crimp tool
2.using for 4P+6P+8P +10p
3.with 4pcs blades
4.can be used for round cable cutting.



Application:



Non-Ratchet Type:Remove the closed lock to open the handles.



Ratchet Type:Squeeze the handles until it stops to open the handles.







1.Insert cable between stripper blades.



  1a.Insert 4P/6P cble from the top end of the stripper black until it touches     the stop guide.



  1b.Insert 8P/10P cable into the two-bladed side of the tool's stripper and let it extend a litter past the lower cut blade.







2.Cutting modular cable:



   Place the single-bladed side of the tool's cutter facing you and cut the modular cable to the desired length.Make sure to cut the ends of the cord straight across, not diagonally.







3.Squeeze handles until it stops, cable must be kept perpendicular and then pull from the tool.







4.Remove the outer jacket ,insert the stripped cable into the plug and be sure the left wire at one end matches the right wire at the other end.







5.Place modular plug with cable into the tool's holder.Make sure the stripped wire is between the tab and gold contacts. Squeeze handles until it stops.







6.Remove the crimped plug from the tool.







7.During the crimping process, you may turn the screw on the ratchet in counterclockwise direction to stop the incorrect operation.







8.To crimp "DEC"plug, follow step1 to step4.



   Remove the screw on the left side of the 6P holder, insert the "DEC" plug and cable into the 6P holder and squeeze handles till it stops.

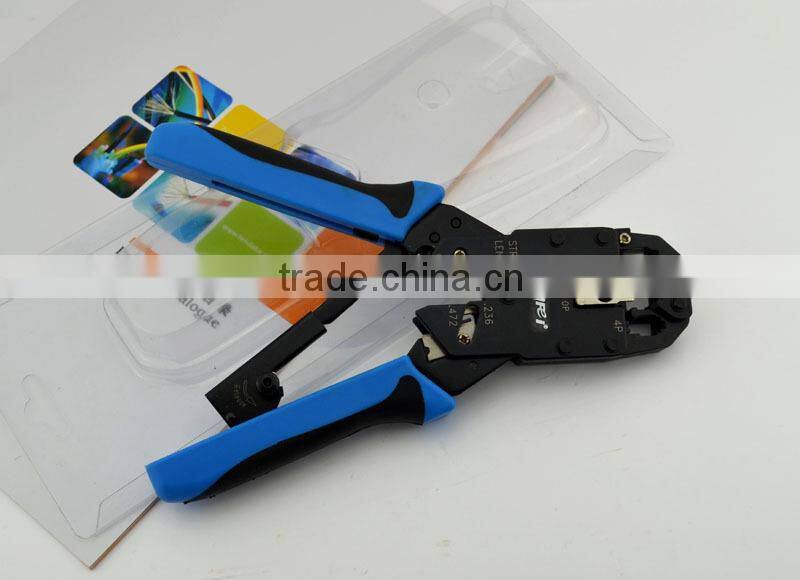

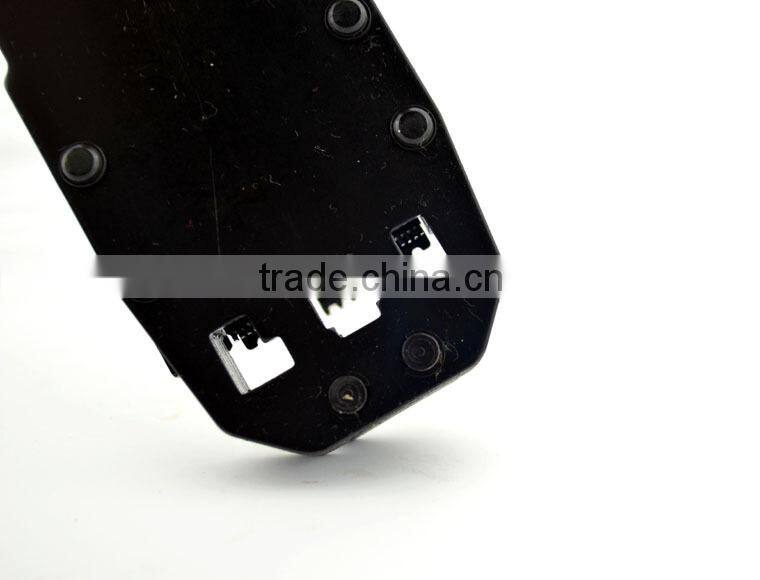

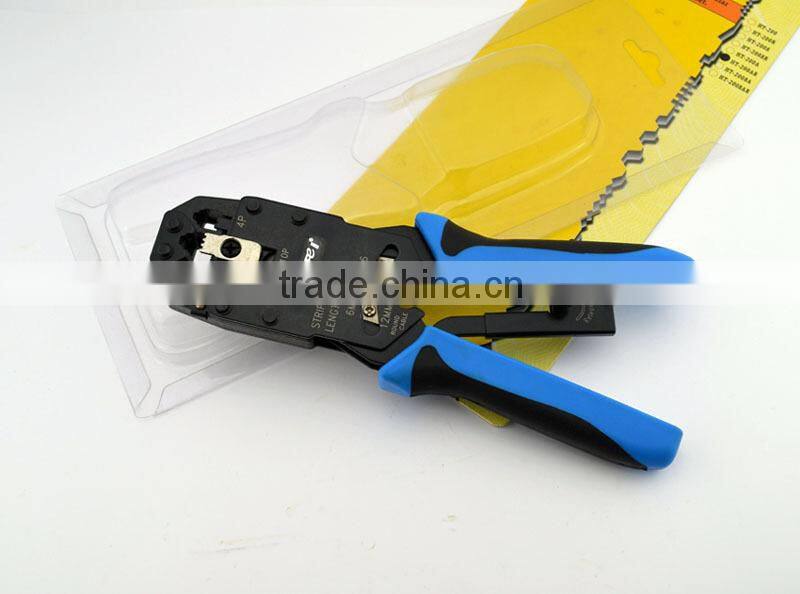

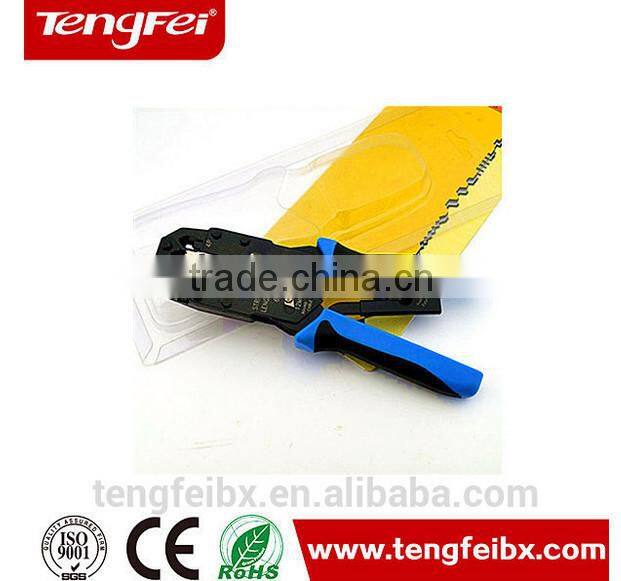

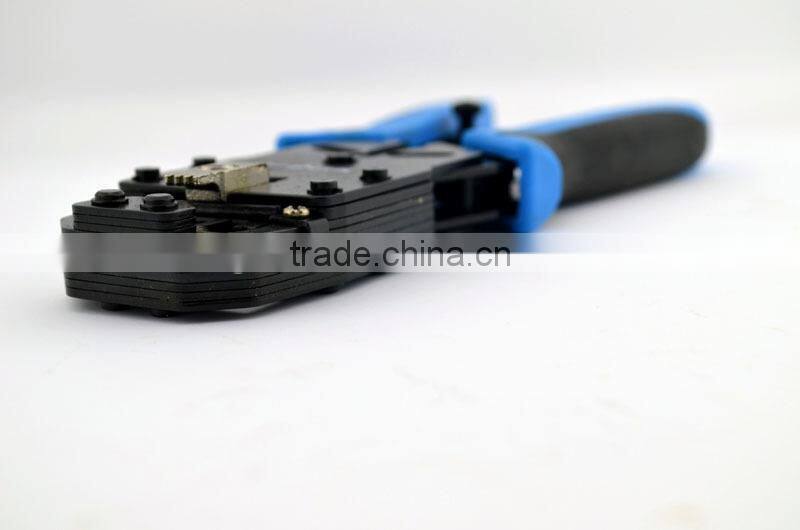

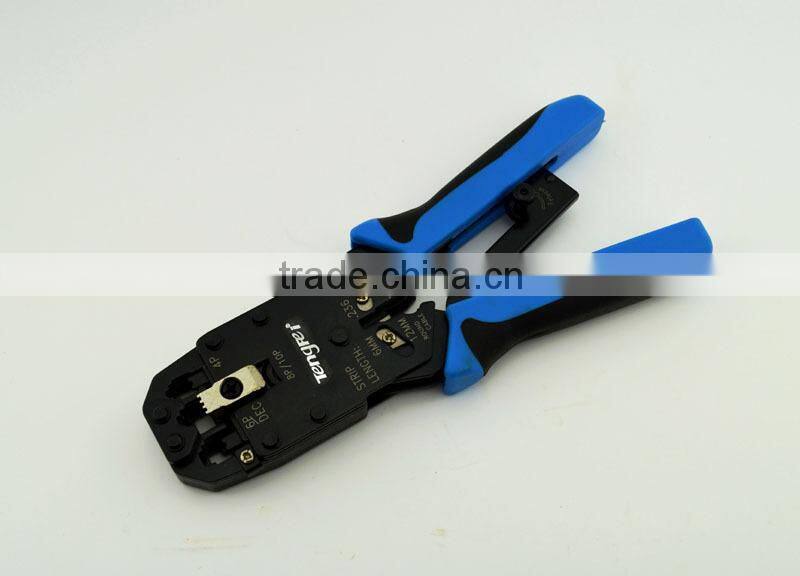

Product Image:
Tengfei Hot sale New Arrival 10P10C Hand Crimping Tool& RJ45 Crimping ToolTengfei Hot sale New Arrival 10P10C Hand Crimping Tool& RJ45 Crimping ToolTengfei Hot sale New Arrival 10P10C Hand Crimping Tool& RJ45 Crimping ToolTengfei Hot sale New Arrival 10P10C Hand Crimping Tool& RJ45 Crimping ToolTengfei Hot sale New Arrival 10P10C Hand Crimping Tool& RJ45 Crimping ToolTengfei Hot sale New Arrival 10P10C Hand Crimping Tool& RJ45 Crimping Tool
Tengfei Hot sale New Arrival 10P10C Hand Crimping Tool& RJ45 Crimping Tool
Model information:

TF- For Crimping Modular Plug

8086R

(4P4C/4P2C)&(6P6C/RJ-12)   (6P4C/RJ-11)&(6P2C)
(8P8C/RJ-45)&(6P6C/RJ-12)   (6P4C/RJ-11)&(6P2C)
210C 8P8C/RJ-45
200AR

10P10C, AMP 8P8C/RJ-45, 6P6C/RJ-12, 6P4C/RJ-11, 4P4C&4P2C PLUGS & DEC/OFF SET PLUG-6P6C

568R 8P8C/RJ-45, 6P6C/RJ-12, 6P4C/RJ-11
500R

8P8C/RJ-45, 6P6C/RJ-12, 6P4C/RJ-11 PLUGS





Tengfei Hot sale New Arrival 10P10C Hand Crimping Tool& RJ45 Crimping ToolTengfei Hot sale New Arrival 10P10C Hand Crimping Tool& RJ45 Crimping Tool

Tengfei Hot sale New Arrival 10P10C Hand Crimping Tool& RJ45 Crimping ToolTengfei Hot sale New Arrival 10P10C Hand Crimping Tool& RJ45 Crimping Tool
