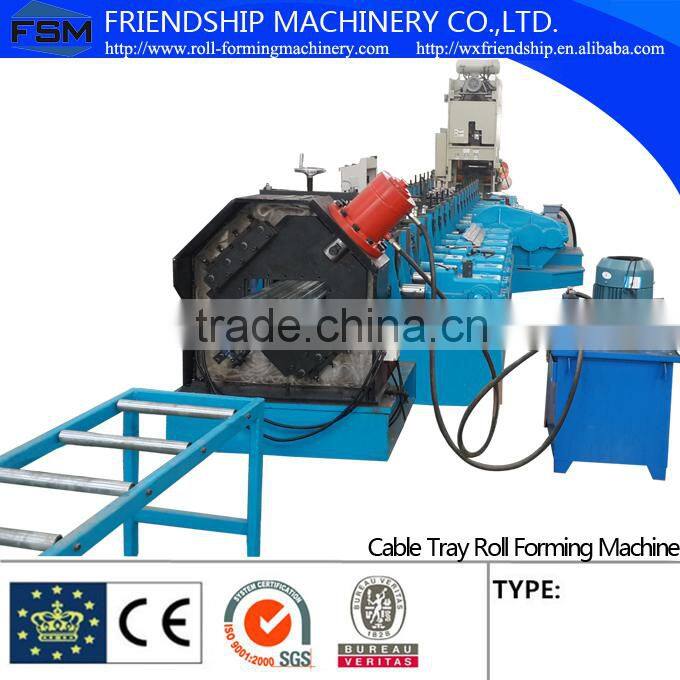

Automatic Cable Bridge Roll Forming Machine

 Automatic Cable Bridge Roll Forming Machine

Automatic cable tray roll forming machine,this Full line is controlled by PLC control system with touch screen operation to achieve the human and PLC interactive.

The operator can monitor the setting program (programmable control) and modify the parameter

to control the line. Also can check the running status, parameter and error indication etc...

Operation type: manual /auto two type switch. In manual position: can run the each part of the

machine. In auto position: can run the full line. The emergency stop ensures the safe of the

equipment and operator.

Automatic Cable Tray Roll Forming Machine side is equipped with the manual operation control panel for convenient worker to operate

I: Composition of Machine

• Hydraulic Decoiler ------------------------------------------ 1 Unit

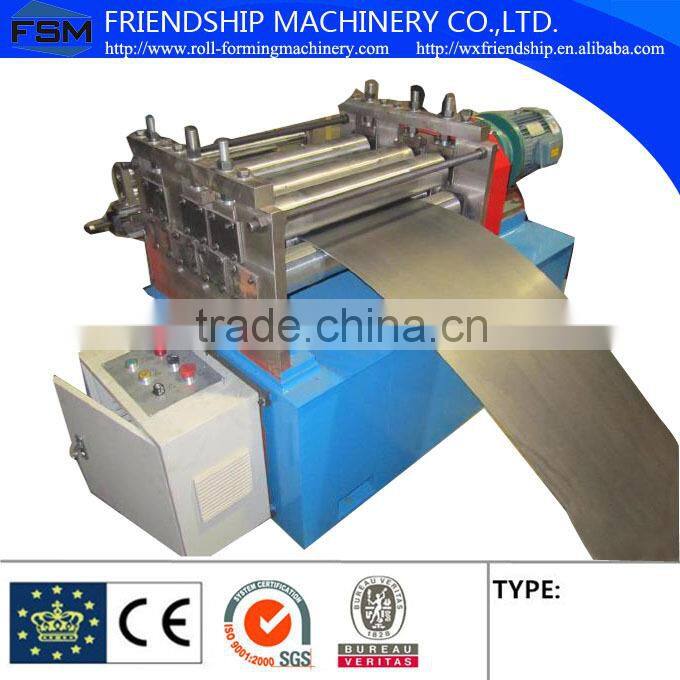

• Leveling and Feeding Guide -------------------------------- 1 Unit

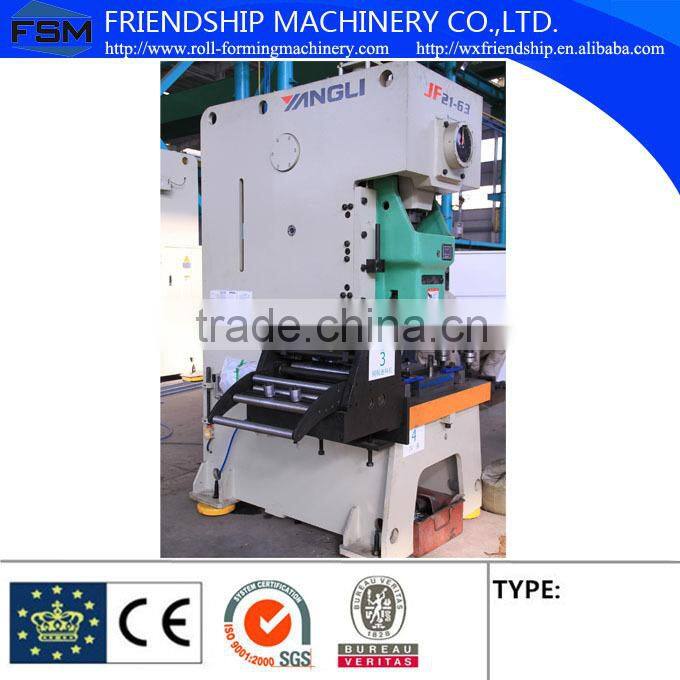

• Punching Device ------------------------------------------- 1 Unit
• Roll Forming Machine -------------------------------------- 1 Unit
• Hydraulic Cutting ------------------------------------------ 1 Unit
• Hydraulic Station ------------------------------------------ 1 Unit
• PLC Contol System ---------------------------------------- 1 Unit
• Runout Table ---------------------------------------------- 1 Unit
• Spare Coupling -------------------------------------------- 1 Unit

 II:Technical Data Of Automacit Cable Tray Roll Forming Machine

• Material Thickness:0.8-2.5mm
• Forming Station: 20--24stations
• Principal Axis Diameter: 65mm
• Line speed with punching: 3-6M/min
• Main Power: 78KW
• Leveling Power: 4*5.5KW
• Hydraulic Power: 15KW
• Gearbox deiven
• Dimension of Machine: 50M X4 MMX5MM ( LXWXH )
• Gross Weight of Machine: about 20 Ton
• Voltage: 380V, 3 Phase 50Hz

 III: Working Flow

Decoiler ---> Feeding ---> Main automatic cable tray Roll Forming ---> Cutting to Length ---> Runout Table
