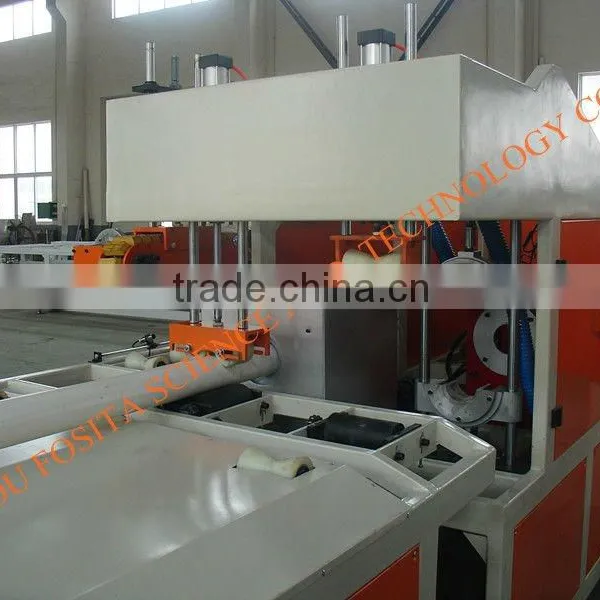

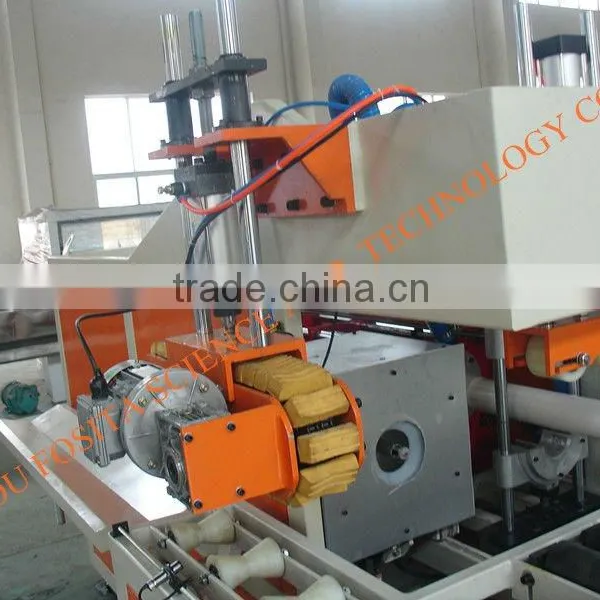

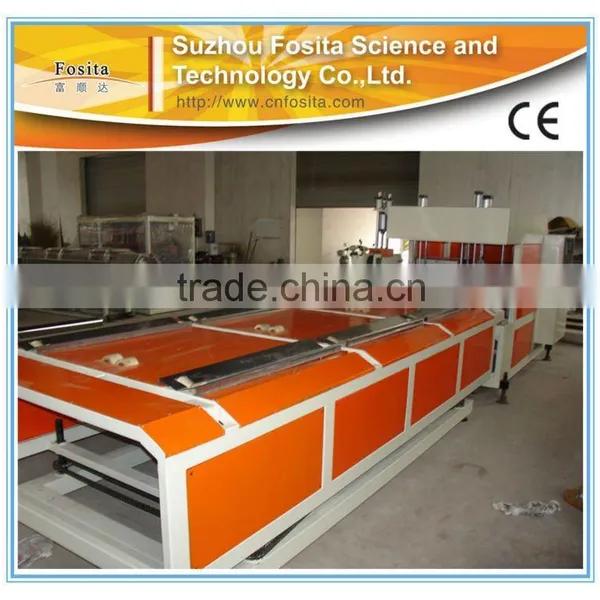

Full-automatic Pipe Belling Machine
Full-automatic Pipe Belling Machine
characteristics:
1.High elasticizing capacity
2.Low energy consumption
3.High cost performance and long life
main technical parameters:
The outer diameter of the pipe: 50mm-160mm
Work Dimensions Length: 4 to 6 meters
Machine System:
Electric System, hydraulic system and machinery system.
Hydraulic system: Motor model of Oil Pump: Y100L1-4
Power: 2.2kw Rotation speed: 1430r/m
Oil Pump Model: V18-A1-R-A Rated Voltage: 6.3Mpa
Discharging Capacity: 0-18L/min
Working pressure of the system: 4-6.3Mpa
Hydraulic Oil: No.46 anti-friction hydraulic oil
Heating system:
Motor power of electric heating pipe of the Heating stove: 1kw×8=8kw
Maximum Temperature of the air: 380°C
Electric system:
Pressure of compressed air: 0.4—0.6Mpa
Pressure of water supply: 0.2—0.3Mpa
PLC Controller: FX1N-60MR-001+FX0N-40ER
Operating voltage: AC380V 50HZ
Total power of the unit: 10.5KVA
Total weight of the unit: 3600kg
Working center height: 1100±10MM
Production speed: about 30 nos/h
Outside dimension of the unit: 6800mmL×1800mmW×1850mmH
Suzhou Fosita Science and technology Co.Ltd is located in Zhangjiagang city Jiangsu Province, the economic booming area of Changjiang Delta.
Here is our CE certificate, we can provide you high quality production and excellent after-sale service.
Each year, there are many old and new customers come to our factory to have cooperation.
we have attended many trade fairs such as Chinaplas ,Arabplast,plastindia to show our product.

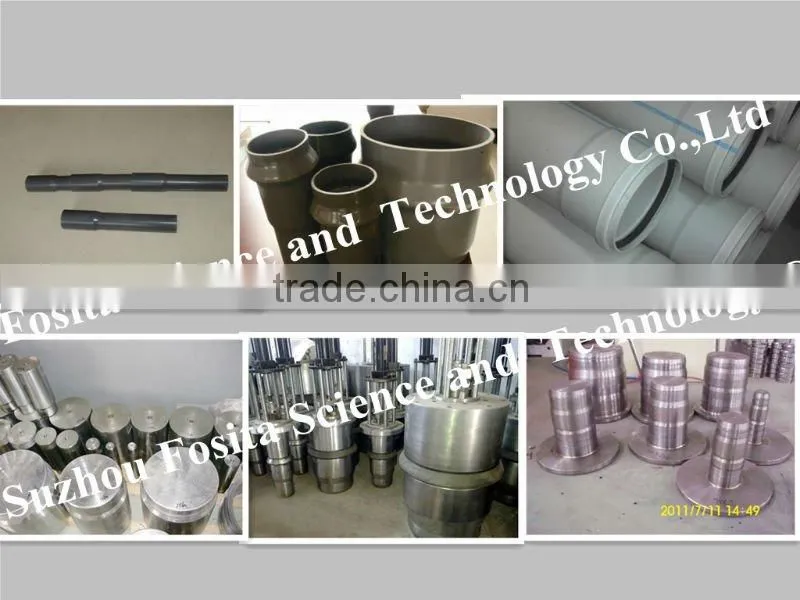

Our main products are PE/PPR/PVC pipe,WPC/PVC profile production lines,PET bottles and PP/PE films recycling line,Plastic wastes pelletizing lines, and all kinds of other auxiliary equipments,such as Mixer,Crusher,Pulverizer,Shredder,Water chiller and so on .Looking forward to cooperating with you!
