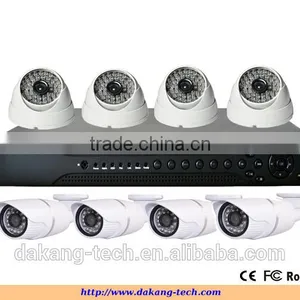

8ch 960P Sensor Ahd Dvr Kit,4pcs Waterproof Bullet Camera,4pcs Dome Camera,720P AHD Camera,security DIY AHD Kit

US$ 255 - 259 MOQ: 1 Parcel

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

DKS-AHD08MP

Shenzhen Dakang Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Model Number DKS-AHD08MP

Specifications

8ch ahd dvr system
4pcs 720P AHD IR dome camera
4pcs 720P AHD IR bullet camera
8pcs 20m video/DC cable
2pcspower/1-4splliter

DKS-AHD08MP

8ch AHD 720p waterproof dome camera AHD KIT

DVR kits including :

8ch 720P ahd Digital Video Recorder 1PCS

960P SENSOR CMOS, 720P ahd IR dome camera 4PCS

960P sensor cmos,2pcs 720P AHD IR metal bullet camera 4pcs

Power Supply 12V 5A 2PCS

4 Way power cable spiliter 2PCS

20M Video Cable and DC Cable 8PCS

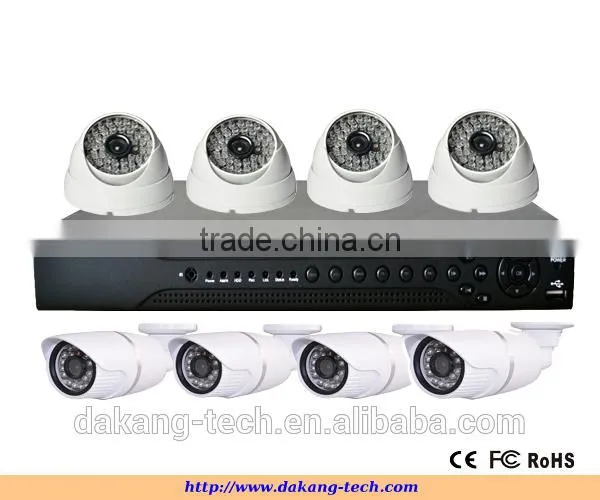

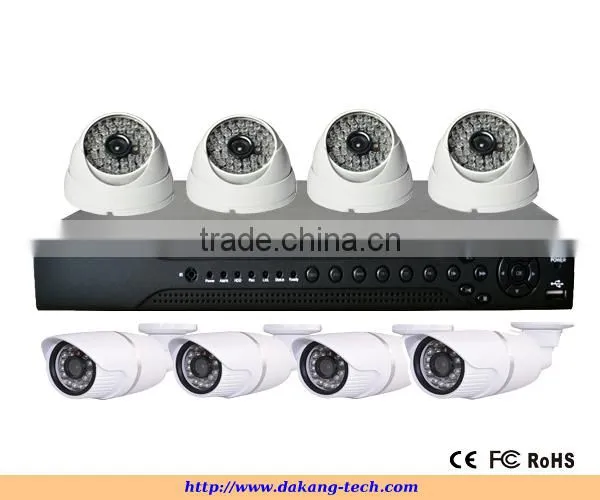

Picture:

KIT color packing box:

DVR Specification:

Model No.		DK-AHD7008LM
system	Pressor	H.264
system	Operating System	Embedded Linux
Video	Input	8ch,BNC(1.0VP-P,75Ω)
	VGA Output	Yes
	BNC Output	NO
	HDMI Output	Yes
Audio	Audio input	2ch
	Audio output	1
	Intercom	No
Recording	Realtime recording	8ch 720P
Recording	Recording	Schedule,Manual,Motion,Sensor
Playback	Realtime playback	1ch
Playback	Search Model	Time, Event, File Management, Image(snapshot)
Backup	USB/HDD/ U Disk	Yes
	USB DVD recorder	Yes
	Backup Type	DAV/AVI
Remote Visit	Support Brower	Yes
	CMS2.0/3.0	Yes
	Mobile operating system	Ipone/Android
	Number of users at one time	10 users online with professional authority management
Alarm	Alarm input	No
Alarm	Alarm output	No
Storage	Number of HDD	1 SATA
Storage	Support E-SATA	Yes
	Interface	1*RS485
PTZ	Protocol	PELCOP,PELCOD,LILIN,MINKING,NEON,STAR,VIDO.
	Protocol	DSCP,VISCA,SAMSUNG,RM110,HY
	Way of Controlling	Pan, Tilt, Zoom, Preset, Cruise, Trace
Network	Network interface	10 / 100 Mbps Ethernet (RJ-45)
Network	Network protocol	TCP/IP, DHCP, DDNS, NTP, SMTP
Others	Remote-Controller	Yes
	Power	DC12V/3A
	Work Temperature	-10°C ~60°C
	Work Humidity	10% ~ 90% Humidity

Camera Specification:

Model	DK-AHD7066P
Image Sensor	1/3" 960P 1.3Megapixel SONY238 CMOS sensor
Effective Pixels	1280(H)×720(V)
Electronic Shutter	4/25s~1/45,000s
Video Frame Rate	1280×720/25 fps;1280×720/30 fps;
Video Frame Rate
Synchronization	Internal
Min. Illumination	0.01Lux/F1.2(0Lux IR LED on)
Video Output	1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
IR distance	20m
Day/Night	Auto(ICR)/B&W/Color
Noise Reduction	2D/3D
OSD Menu	OPTIONAL
lens	3.6/6/8mm optional
Power Supply	DC12V±10%
Power Consumption	Max 4.2W
Working Environment	-30°C~+60°C/ Less than 95%RH (no condensation)
Transmission Distance	Over 500m via 75-3 coaxial cable
Waterproof	IP66

Model	DK-AHD7010P
Image Sensor	1/3" 960P 1.3Megapixel SONY238 CMOS sensor
Effective Pixels	1280(H)×720(V)
Electronic Shutter	4/25s~1/45,000s
Video Frame Rate	1280×720/25 fps;1280×720/30 fps;
Video Frame Rate
Synchronization	Internal
Min. Illumination	0.01Lux/F1.2(0Lux IR LED on)
Video Output	1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
IR distance	20m
Day/Night	Auto(ICR)/B&W/Color
Noise Reduction	2D/3D
OSD Menu	OPTIONAL
lens	3.6/6/8mm optional
Power Supply	DC12V±10%
Power Consumption	Max 4.2W
Working Environment	-30°C~+60°C/ Less than 95%RH (no condensation)
Transmission Distance	Over 500m via 75-3 coaxial cable
Waterproof	IP66
