4ch 960P Sensor Cmos Ahd Dvr Kit,p2p Cloud, 4ch Camera Kit, 720P AHD Outdoor Camera,security DIY AHD Kit

US$ 122 - 125 MOQ: 1 Parcel

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

DKS-AHD04BP

Shenzhen Dakang Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Model Number DKS-AHD04BP

Specifications

4ch HD ahd DVR KIT
4pcs 720P AHD IR metal bullet camera
4pcs 20m video/DC cable
1pcs power
1pcs 1- 4 power split

DKS-AHD04BP

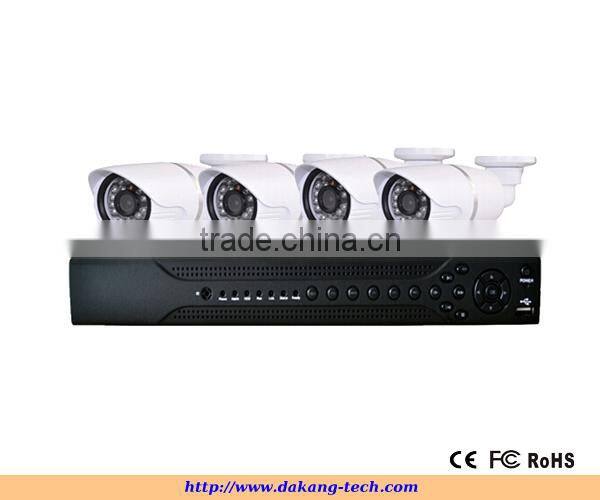

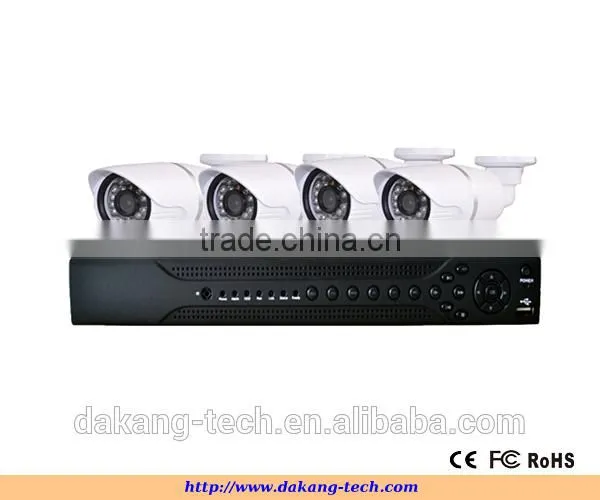

4ch AHD 720p waterproof dome camera AHD KIT

DVR kits including :

4ch 720P ahd Digital Video Recorder 1PCS

1/3 Sony238 960p CMOS SENSOR,720P ahd metal housing IR bullet camera 4PCS

Power Supply 1PCS

4 Way power cable spiliter 1PCS

20M Video Cable and DC Cable 4PCS

Picture:

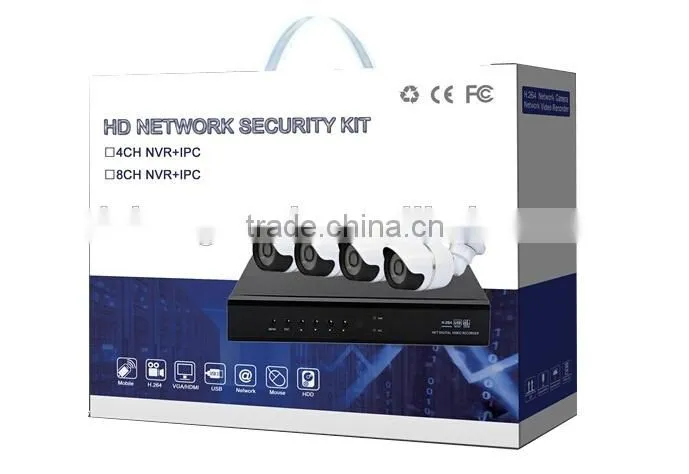

KIT color packing box:

DVR Specification:

Model No.		DK-AHD7004
system	Pressor	H.264
system	Operating System	Embedded Linux
Video	Input	4ch,BNC(1.0VP-P,75Ω)
	VGA Output	Yes
	BNC Output	NO
	HDMI Output	Yes
Audio	Audio input	4ch
	Audio output	1
	Intercom	No
Recording	Realtime recording	4ch 720P
Recording	Recording	Schedule,Manual,Motion,Sensor
Playback	Realtime playback	4ch
Playback	Search Model	Time, Event, File Management, Image(snapshot)
Backup	USB/HDD/ U Disk	Yes
	USB DVD recorder	Yes
	Backup Type	DAV/AVI
Remote Visit	Support Brower	Yes
	CMS2.0/3.0	Yes
	Mobile operating system	Ipone/Android
	Number of users at one time	10 users online with professional authority management
Alarm	Alarm input	No
Alarm	Alarm output	No
Storage	Number of HDD	1 SATA
Storage	Support E-SATA	Yes
	Interface	1*RS485
PTZ	Protocol	PELCOP,PELCOD,LILIN,MINKING,NEON,STAR,VIDO.
	Protocol	DSCP,VISCA,SAMSUNG,RM110,HY
	Way of Controlling	Pan, Tilt, Zoom, Preset, Cruise, Trace
Network	Network interface	10 / 100 Mbps Ethernet (RJ-45)
Network	Network protocol	TCP/IP, DHCP, DDNS, NTP, SMTP
Others	Remote-Controller	Yes
	Power	DC12V/3A
	Work Temperature	-10°C ~60°C
	Work Humidity	10% ~ 90% Humidity

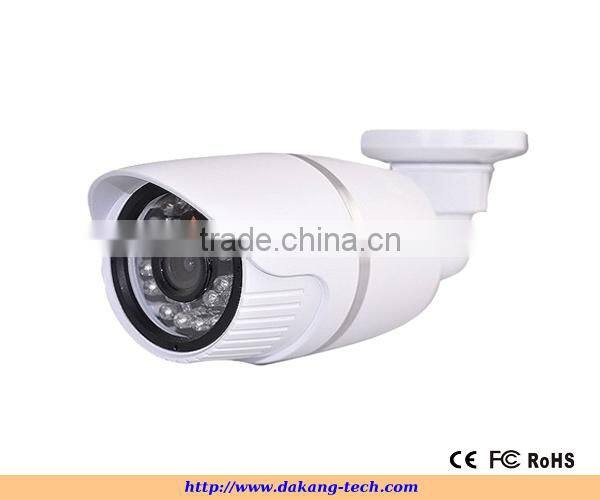

Camera Specification:

Model	DK-AHD7010P
Image Sensor	1/3" 1.3Megapixel 960P sony238 CMOS sensor
Effective Pixels	1280(H)×720(V)
Electronic Shutter	4/25s~1/45,000s
Video Frame Rate	1280×720/25 fps;1280×720/30 fps;
Video Frame Rate
Synchronization	Internal
Min. Illumination	0.01Lux/F1.2(0Lux IR LED on)
Video Output	1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
IR distance	30m
Day/Night	Auto(ICR)/B&W/Color
Noise Reduction	2D/3D
OSD Menu	optional
lens	3.6/6/8mm optional
Power Supply	DC12V±10%
Power Consumption	Max 4.2W
Working Environment	-30°C~+60°C/ Less than 95%RH (no condensation)
Transmission Distance	Over 500m via 75-3 coaxial cable
Waterproof	IP66
