4ch 1MP CVI Dvr Kit,iPhone&Anroid Phone,PC Access

US$ 120 - 123 MOQ: 1 Parcel

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

DKS-CVI04M

Shenzhen Dakang Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Model Number DKS-CVI04M

Specifications

4ch HD CVI DVR KIT
4pcs 720P CVI IR metal dome camera
4pcs 20m video/DC cable
1pcs power
1pcs 1- 4 power split

DKS-CVI04M

4ch hd cvi 720p waterproof dome camera CVR KIT

DVR kits including :

4ch 720P CVI Digital Video Recorder 1PCS

720P HD CVI metal housing IR dome camera 4PCS

Power Supply 1PCS

4 Way power cable spiliter 1PCS

20M Video Cable and DC Cable 4PCS

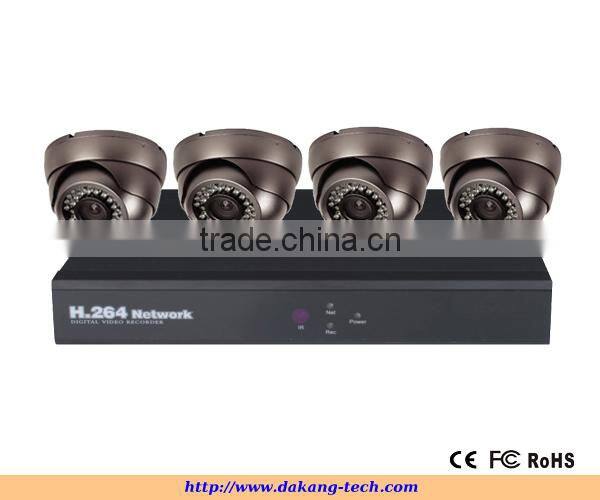

Picture:

KIT color packing box:

DVR Specification:

Model No.		DK-CVI7004
system	Pressor	H.264
system	Operating System	Embedded Linux
Video	Input	4ch,BNC(1.0VP-P,75Ω)
	VGA Output	Yes
	BNC Output	NO
	HDMI Output	Yes
Audio	Audio input	No
	Audio output	No
	Intercom	No
Recording	Realtime recording	4ch 720P
Recording	Recording	Schedule,Manual,Motion,Sensor
Playback	Realtime playback	4ch
Playback	Search Model	Time, Event, File Management, Image(snapshot)
Backup	USB/HDD/ U Disk	Yes
	USB DVD recorder	Yes
	Backup Type	DAV/AVI
Remote Visit	Support Brower	Yes
	CMS2.0/3.0	Yes
	Mobile operating system	Ipone/Android
	Number of users at one time	10 users online with professional authority management
Alarm	Alarm input	No
Alarm	Alarm output	No
Storage	Number of HDD	1 SATA
Storage	Support E-SATA	Yes
	Interface	1*RS485
PTZ	Protocol	PELCOP,PELCOD,LILIN,MINKING,NEON,STAR,VIDO.
	Protocol	DSCP,VISCA,SAMSUNG,RM110,HY
	Way of Controlling	Pan, Tilt, Zoom, Preset, Cruise, Trace
Network	Network interface	10 / 100 Mbps Ethernet (RJ-45)
Network	Network protocol	TCP/IP, DHCP, DDNS, NTP, SMTP
Others	Remote-Controller	Yes
	Power	DC12V/4A
	Work Temperature	-10°C ~60°C
	Work Humidity	10% ~ 90% Humidity

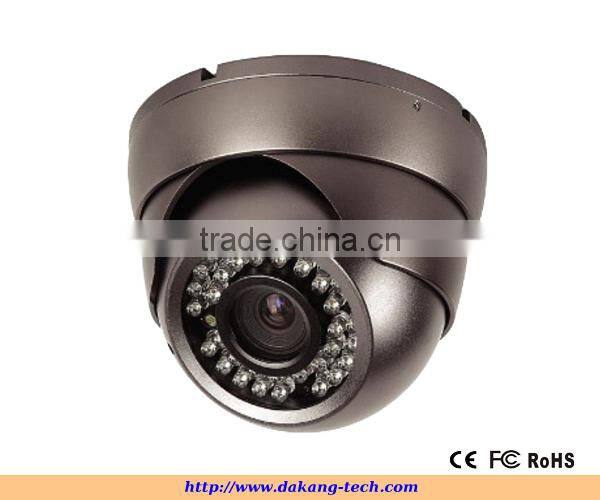

Camera Specification:

Model	DK-CVI7066
Image Sensor	1/3" 1Megapixel CMOS
Effective Pixels	1280(H)×720(V)
Electronic Shutter	4/25s~1/45,000s
Video Frame Rate	1280×720/25 fps;1280×720/30 fps;
Video Frame Rate	1280×720/50 fps;1280×720/60 fps
Synchronization	Internal
Min. Illumination	0.01Lux/F1.2(0Lux IR LED on)
Video Output	1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
IR distance	30m
Day/Night	Auto(ICR)/B&W/Color
Noise Reduction	2D/3D
OSD Menu	Support
lens	3.6/6/8mm optional
Power Supply	DC12V±10%
Power Consumption	Max 4.2W
Working Environment	-30°C~+60°C/ Less than 95%RH (no condensation)
Transmission Distance	Over 500m via 75-3 coaxial cable
Waterproof	IP66
