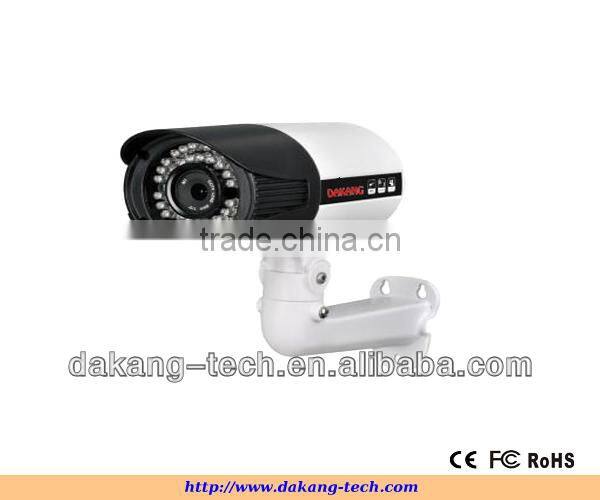

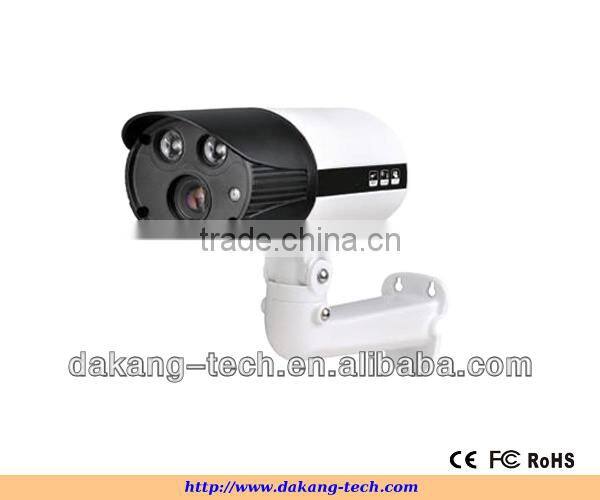

1.3megapixel TI Solution Array Led ip Camera, Onvif, 40m IR Distance

Name: 1.3megapixel TI Solution Array Led ip Camera, Onvif, 40m IR Distance
Brand: DAKANG
SKU: 122366231
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

DAKANG

Model Number:

DK-7053TP

Shenzhen Dakang Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name DAKANG

Model Number DK-7053TP

Type Other, Digital Camera, Digital Camera,CCTV IP Camera

Style Bullet Camera

Sensor CMOS

Technology NetWork

Special Features Waterproof / Weatherproof

Specifications

1/3 AR0130 CMOS sensor,DSP TI365,1.3Mega Pixle,960P 1280*960;720P 1280*720
4/6/8mm fixed lens
IR distance: 40m
Support Onvif

DK-7053TP 1.3Mega IP array led camera

Key Feature:

* 1/3 inch 1.3 Megapixel progressive CMOS sensor, TI Davinci DM365 DSP 32 dual-core.

*H.264 video compression technology.

* Main Stream: 2Mega:1920X1080 15fps,1.3Mega:1920X1080 25fps

*True color reduction degree

*High signal-to-noise ratio

*Support IE&CMS&Mobile phone access

*Support remote configuration, remote upgrade

*SDK integrated development, and facilitate the development of various applications

*IR Distance 40Meters

Picture:

Specification:

960P/720P
Model	DK-7053TP	DK-7053TC
Sensor	1/3 Aptina 960P low lux CMOS sensor,DSP TI365	1/4 720P OV9712 CMOS sensor,DSP TI365
Resolution	12809600@30fps,1280720@30fps	1280*720@30fps
Compression	H.264 Main Profile/Baseline
Steam flow	Support dual stream
Bit Rate	128-8192kbps
Bit Rate Type	CBR/VBR
S/N Ratio	>50DB
Electronic shutter	1/5-1/15,000 /S
Image enhancement	Auto White Balance,Backlight compensation,Brightness,Contrast,Saturation adjusted
Subtitles input	upport channel name, date/time
IR Filter	IR-CUT
IR-led	30m IR,2pcs Array Leds(42pcs led optional)
IR distance	30M
Electronic shutter	1/5-1/15,000 /S
lens	CS 4/6/8mm fixed Lens(3Mega pixel lens)
Audio	N/A
Protocal	HTTP,TCP/IP,UDP,SMTP,DDNS,DNS,SNTP,DHCP,FTP,RTP,RTSP,UPNP,ONVIF,28181
Ethernet	Ethernet (10/100 Base-T),RJ-45 connector
Safety	IP address filtering,User level password protection,The user access log
WEB Browser	Microsoft Internet Explorer 6.0 and above,google,firefox etc.
Mobile Phone	Support iPhone,Android,Bit rate:32K – 512K adjustable,Frame rate:6–12 fps
Software Management	CMS and the devices Compatible with ONVIF
Remote Access	DDNS,Software,P2P
Accessories	Power adapter, Network cable, Stand, Operation manual, CD, Screw bag
Temperature	-20°~60°C
Humidity	-10~85%
Power Comsumption	DC 12V ,Module power consumption is less than 2 W
