DK-NVR1208QT 8ch H.265 4K/5MP NVR
Key Features:
1.Support management client software.
2. Max 4K video output.
3.Support H.265/h.264 main stream and extra steam encode synchronously
4. USB flash disk, USB portable HDD and network.
5. System auto recovery after power failure
6. Remote control easily & conveniently without any complicated setting.
7.Support multi languages
8. Allows live display, record, playback, backup, network and mobile surveillance at the same time.
9. Support mobile monitor (iPhone, iPad&Andriod phone).
10. Support net service(support DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP authority, IP search, Alarm center, etc), complete enclosure(WEB, CMS, SDK), to easily achieve interconnection.

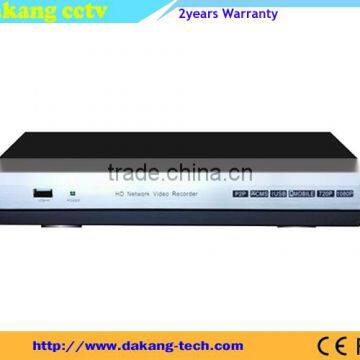

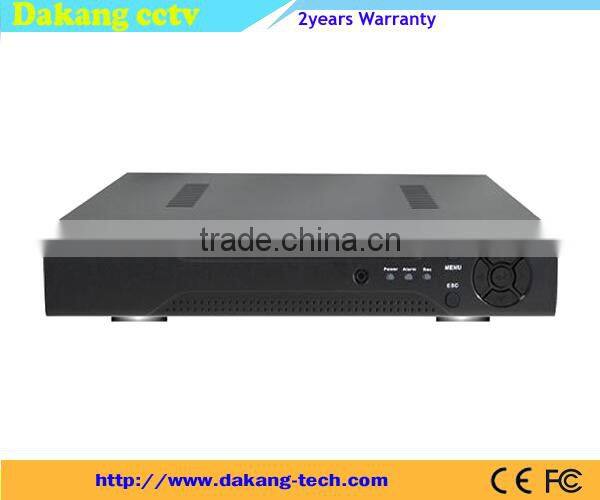

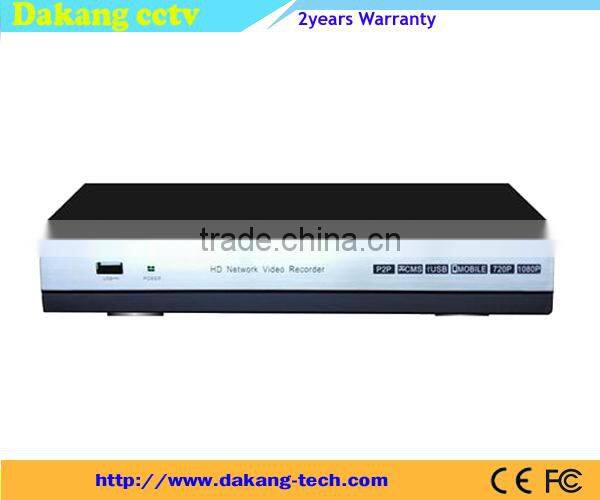

Picture:
Specification:
System |
Main processor |
Industrial grade embedded micro processor chipset |
Operating system |
Embedded LINUX operating system |
|
System resource |
Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. |
|
Display |
Operation interface |
16 bit real color GUI interface support mouse operation |
Multilingual Language |
28 kinds of language,English, Finnish, French, German, Greek, Italian, Polish, Portuguese, Russian, Spanish, Thai, Simplified Chinese, Chinese-Traditional, Turkish, etc |
|
Display screen |
1/4/8/9 screen |
|
Video |
Video standard |
PAL(625 lines, 50fps); NTSC(525lines, 60fps) |
Image encode |
H.265/h.264(Main Profile) |
|
Monitor quality |
Monitor: D1; VGA & HDMI: (1920*1080,1280*720,1440*900,1280*1024,1024*768, 800*600) |
|
Playback quality |
5MP |
|
Encode capability |
4CH 4K/5MP |
|
Decode capability |
1CH 4k/5MP |
|
Audio System |
Audio compression |
NO |
Talkback |
NO |
|
Record and playback |
Record mode |
Manual, alarm, motion detection, timing |
Local playback |
1CH |
|
Video search |
Time, date, event, channel search |
|
Storage and back up |
Space Usage |
Video: D1 8~10G/day*channel;960H 12G~20G/day*channel;720P 20~30G/day*channel;1080P ~40G/day*channel;Audio: 691.2M/day*channel |
Video storage |
Local Hard Disk, Network |
|
Back up mode |
Network backup, USB portable HDD, USB DVD-RW |
|
Interface |
Video input |
4CH 4K/5MP |
Video output |
NO |
|
Audio input |
NO |
|
Audio output |
NO |
|
Alarm input |
NO |
|
Alarm output |
NO |
|
Network port |
1*RJ45 10/100 Base-T self-adaptive Ethernet port |
|
PTZ control |
1*RS485 port, Support more than 20 kinds protocols. |
|
USB port |
2*USB 2.0 port |
|
HDD port |
Support 1 SATA HDDs (1 HDD capacity up to 3TB) |
|
Wireless Port |
------- |
|
User |
User level |
Admin / User |
User right |
Users can set different permissions (How to use please refer to the manual book) |
|
Password protection |
Support |
|
Remote |
Remote Independent Operation |
Support |
Download records |
Support |
|
Remote Event Trigger Recording |
Support |
|
CMS |
CMS Software for multiple NVR |
|
Browser |
Internet Explorer |
|
Live Audio |
Support |
|
On-line user |
Max. 10 |
|
Mobile Surveillance |
Support iPad, iPhone & Android phone;support remote playback function) |
|
Network Protocol |
DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP authority, IP search, Alarm center |
|
Alarm |
Motion detection |
16 × 12 grids per channel;6 adjustable parameters for accurate detection(for local analog channel only) |
Event Notification |
FTP / E-Mail |
|
Pre-alarm Recording |
Support |
|
Video loss |
Video loss notification |
|
Other |
IR remote controller |
Remotely control DVR and PTZ cameras via IR transmitter (IR receiver built-in) |
Cooling fan |
NO |
|
Tour |
Support |
|
Power Source (±10%) |
DC 12V / 2A |
|
Power Consumption (±10%) |
<10W (Without HDD) |
|
Operating Temperature |
0°C ~ +55°C |
|
Dimensions (mm) ** |
260mm* 230mm* 45mm |
Easy remote access from mobile phone and IE explorer:
A. Remote acecss from Mobile Phone:
1. Find the QR code at the bottom of NVR,like below:
2. Download APP: Vmeyecloud
3.login APP, Select "by Device","Add","Input Name" anyone,"SerialNo" input or Scan QR code, "User name" admin, "Password",no need fill, choose Cloud on, then Save thses,then go back,select your DVR .
B. Remote acecss from IE explorer:
1. Login cloud server: http//,
choose "by Device"
2. input NVR serialNo and verify code.
Certificate:
OEM:
Customer Logo can be stuck/Printed on goods/color box upon confirmed.
Warranty
All our products have 2 years warranty.
