Detailed Product Description

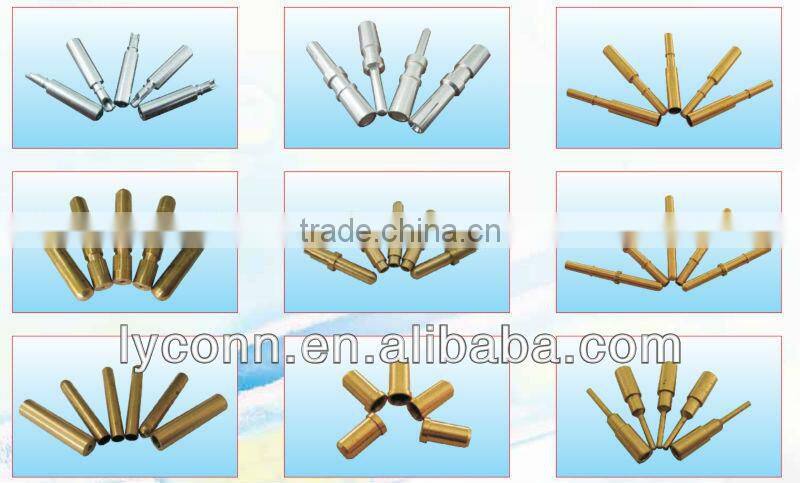

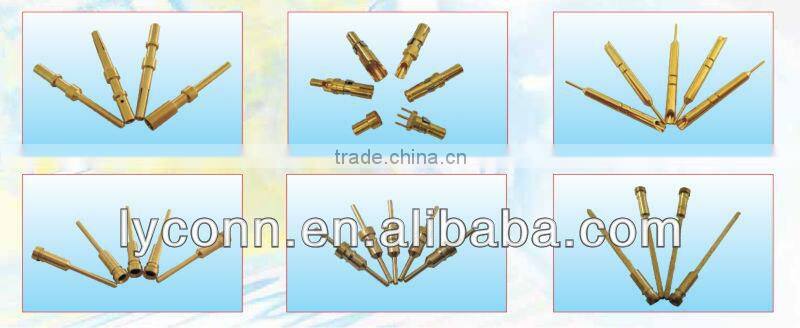

solder pin connector pin
1) Material: Brass
2) Plating: Gold flash or Sn over Ni
3) Produce by auto-lathes and cnc

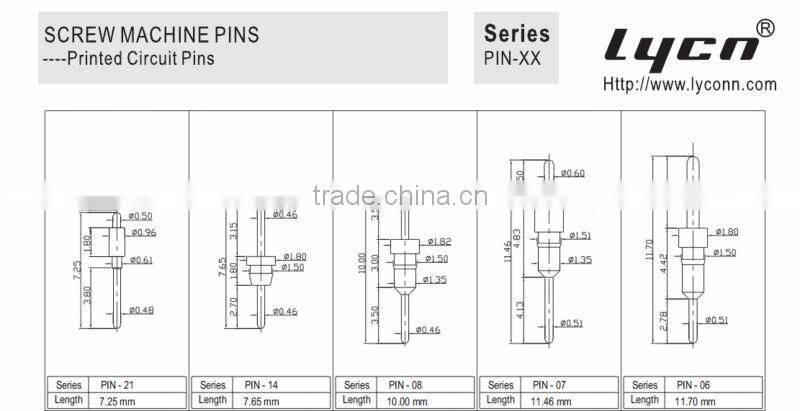

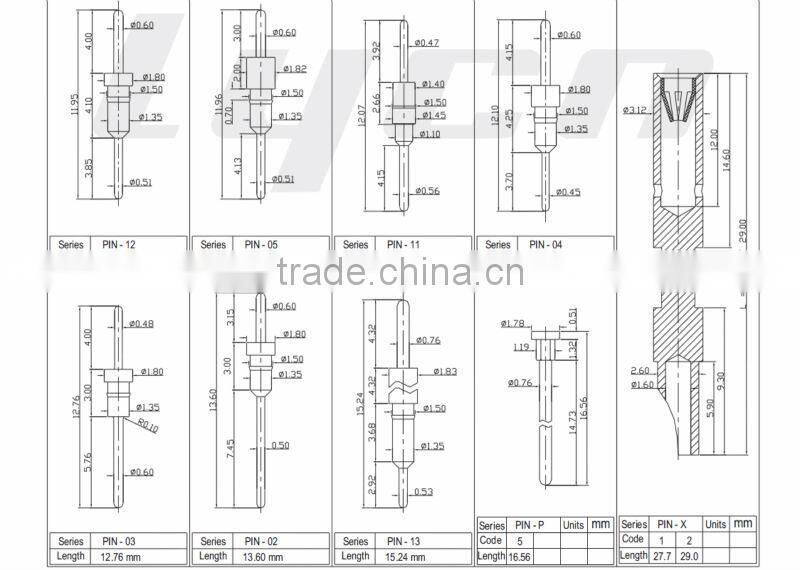

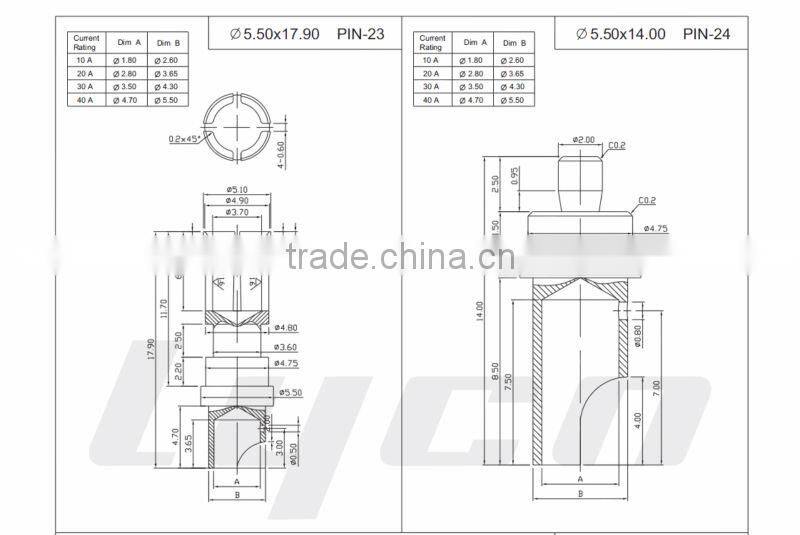

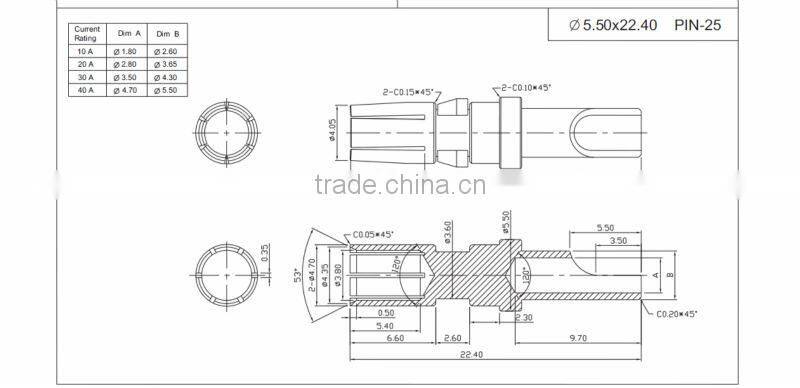

Solder pin Cable connector pin Specifications:
Material:BrassPlating:Gold or Tin over 50µ'' Ni
The series of metal lathe products are suitable for electronic connectors, watches and many other industry equipments, the materials are select from brass, phosphor copper, beryllium copper, aluminum, iron, stainless steel and so on. Screw-machine pins are suitable for electronic connectors, watches and many other industry equipments.
Our company advantage in pins:
1 We can process the pin with milling, drilling, knurling, trimming, secondary process.
2 We can produce as your drawing request , normally for these kind of custom made parts, we can finish the sample within 1week. Our leadtime is 15days after samples confirmed.
3 We have 16auto-lathes for machining the pins, 3 secondary process machines for trimming the pin
4 Other series products is receptacle pin, print circuit pin, spring pin ,solder pinetc.
5 auto-lathe machines of our factory:
