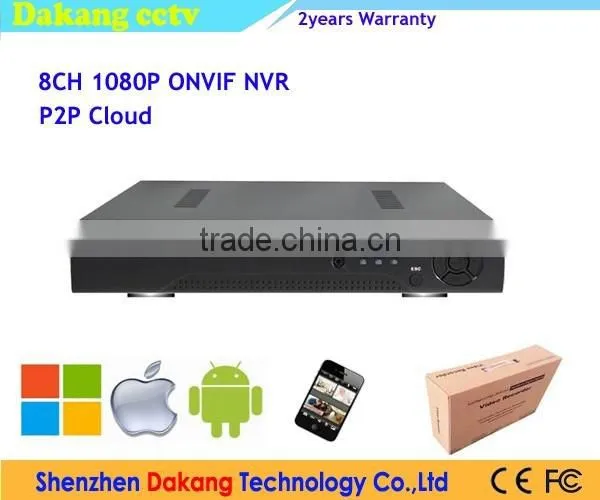

NVR-2208 8h 1080P p2p NVR
Key Features:
1.Support ONVIF IP Camera and ONVIF management client software.
2.HDMI 1080P / VGA 1080P / TV simultaneous video output.
3.Support h.264 main stream and extra steam encode synchronously
4. USB flash disk, USB portable HDD and network.
5. System auto recovery after power failure
6. Remote control easily & conveniently without any complicated setting.
7.Support multi languages
8. Allows live display, record, playback, backup, network and mobile surveillance at the same time.
9. Support mobile monitor (iPhone, iPad&Andriod phone).
10. Support net service(support DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP authority, IP search, Alarm center, etc), complete enclosure(WEB, CMS, SDK), to easily achieve interconnection.
11.Support P2P cloud,3G & WIFI extension.
Picture:
Specification:
Main processor |
Industrial grade embedded micro processor chipset |
Operating system |
Embedded LINUX operating system |
System resource |
Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. |
Operation interface |
16 bit real color GUI interface support mouse operation |
Multilingual Language |
28 kind of language,English, Finnish, French, German, Greek, Italian, Polish, Portuguese, Russian, Spanish, Thai, Simplified Chinese, Chinese-Traditional, Turkish, etc |
Display screen |
1/4/8/9 screen |
Video standard |
PAL(625 lines, 50fps); NTSC(525lines, 60fps) |
Image encode |
H.264(Main Profile); JPEG Snapshot |
Monitor quality |
Monitor:D1; VGA & HDMI: (1920*1080,1280*720,1440*900,1280*1024,1024*768, 800*600) |
Playback quality |
1080P/960P/720P |
Encode capability |
8CH 1080P/8CH 960P/8ch 720P |
Decode capability |
1CH 1080P/1ch 960P/1CH 720P |
Audio compression |
G.711A |
Talkback |
NO |
Record mode |
Manual, alarm, motion detection, timing |
Local playback |
1CH 1080P/1ch 960P/1CH 720P |
Video search |
Time, date, event, channel search |
Space Usage |
Video: D1 8~10G/day*channel;960H 12G~20G/day*channel;720P 20~30G/day*channel;1080P ~40G/day*channel;Audio: 691.2M/day*channel |
Video storage |
Local Hard Disk, Network |
Back up mode |
Network backup, USB portable HDD, USB DVD-RW |
Video input |
8CH 1080P/8CH 720P/16CH D1 |
Video output |
1CH BNC(1.0Vp-p,75Ω), 1CH VGA, 1CH HDMI |
Audio input |
NO |
Audio output |
1CH RCA (200-3000mV,5KΩ) |
Alarm input |
NO |
Alarm output |
NO |
Network port |
1*RJ45 10/100 Base-T self-adaptive Ethernet port |
PTZ control |
1*RS485 port,Support more than 20 kinds protocols. |
USB port |
2*USB 2.0 port |
HDD port |
Support 2 SATA HDDs (1 HDD capacity up to 3TB) |
Wireless Port |
3G & WIFI (extension via USB port) |
User level |
Admin / User |
User right |
Users can set different permissions (How to use please refer to the manual book) |
Password protection |
Support |
Remote Independent Operation |
Support |
Download records |
Support |
Remote Event Trigger Recording |
Support |
CMS |
CMS Software for multiple NVR |
Browser |
Internet Explorer |
Live Audio |
Support |
On-line user |
Max. 10 |
Mobile Surveillance |
Support iPad, iPhone & Android phone;support remote playback function |
Network Protocol |
DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP authority, IP search, Alarm center |
Motion detection |
16 × 12 grids per channel;6 adjustable parameters for accurate detection (for local analog channel only) |
Event Notification |
FTP / E-Mail |
Pre-alarm Recording |
Support |
Video loss |
Video loss notification |
IR remote controller |
Remotely control DVR and PTZ cameras via IR transmitter (IR receiver built-in) |
Cooling fan |
with a colling fan |
Tour |
Support |
Power Source (±10%) |
DC 12V / 5A |
Power Consumption (±10%) |
<15W (Without HDD) |
Operating Temperature |
0°C ~ +55°C |
Dimensions (mm) ** |
310mm* 230mm*50mm |
Easy remote access from mobile phone and IE explorer:
A. Remote acecss from Mobile Phone:
1. Find the QR code at the bottom of NVR,like below:
2. Download APP: Vmeyecloud
3.login APP, Select "by Device","Add","Input Name" anyone,"SerialNo" input or Scan QR code, "User name" admin, "Password",no need fill, choose Cloud on, then Save thses,then go back,select your DVR .
B. Remote acecss from IE explorer:
1. Login cloud server: http//,
choose "by Device"
2. input NVR serialNo and verify code.
Certificate:
OEM:
Customer Logo can be stuck/Printed on goods/color box upon confirmed.
Warranty
All our products have 2 years warranty.
