Specifications

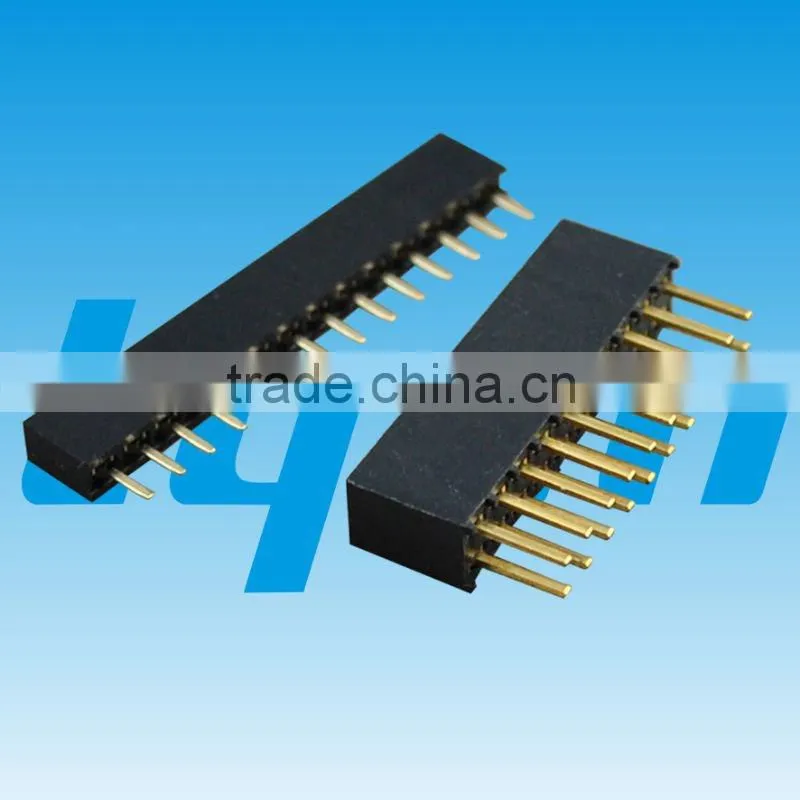

Female Header connector
1) pitch:1.27mm
2) Insulator height:2.0mm,3.4m,4.3mm,4.6mm
3) Straight DIP type
4) Material: PA46
1.27mm Single row Female Connector dip Type :
Specifications:
Rated current: 1.0AMP
Contact resistance: 30mΩMax
Insulation resistance: 500MΩMin
Withstand Voltage: 200VAC/minute
Operation Temperature: -40°C105°C
Max Process Temp: 230°C for 3060 secretary
Materials:
Contact material: copper alloy
Contact plating: Gold or Tin over 50 uNi
Insulator material: PA6T or LCP
Product index:
1. Pitch Series: 1.27*1.27mm
2. Tail & Mounting Type:
W/P S.M.T. Type Base 2.00H
Straight SMT Type
with Local Peg for S.M.T. Type
Straight DIP Type
Right Angle Type
3. Insulator Height: 2.0/2.2/3.8/3.4/4.3mm
DIP Spacing: Single/Dual row
5. Number of contacts: range from 1 up to 112 pins
6. Contact Plated:
Gold flash/Gold 3u/ Gold 5u/ Gold 10u/ Gold 15u/ Gold 30u/Tin
7. Material Type: Nylon-6T (Standard)
8. color: black
