Specifications

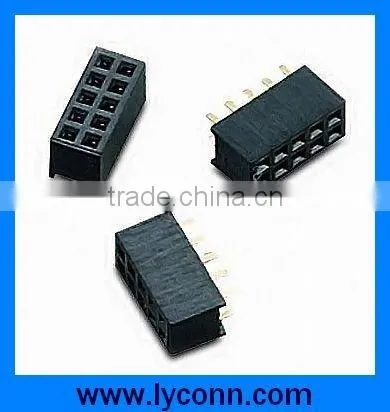

2.00mm Dual Row Straight DIP Type Female HeaderRoHS compliance available
OEM available
Female header
Specifications:
Rated current:1.0AMP
Contact resistance:30mΩMax
Insulation resistance:500MΩMin
Withstand Voltage:200VAC/minute
Operation Temperature:-40°C105°C
Max Process Temp:230°C for 3060 secretary
Materials:
Contact material: copper alloy
Contact plating: Gold or Tin over 50 uNi
Insulator material: Polyester (UL94V-0)
Standard: LCP
Product index:
1. Pitch Series: 1.00/1.27/1.27*2.54/2.00*2.00/2.54*2.54mm
2. Tail & Mounting Type: W/P S.M.T. Type Base 2.00H
Straight SMT Type
W/P And Local Peg S.M.T. Type
Straight DIP Type
Right Angle Type
3. Insulator Height: 2.0/2.2/3.8/3.4/4.3/4.4/4.6/5.0/5.2/5.7/7.1/7.2/8.1mm
4. DIP Spacing: Single/Dual row
5. Number of contacts: range from 1 up to 112 pins
6. Contact Plated:
Gold flash/Gold 3u/ Gold 5u/ Gold 10u/ Gold 15u/ Gold 30u/Tin
7. Material Type: PPS/PBT/LCP/Nylon-66/Nylon-6T/PA46
8. color: black
