Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > RCA DOUBLE FEMALE BULKHEAD, RCA CONNECTOR AND ADAPTOR,RCA JACK

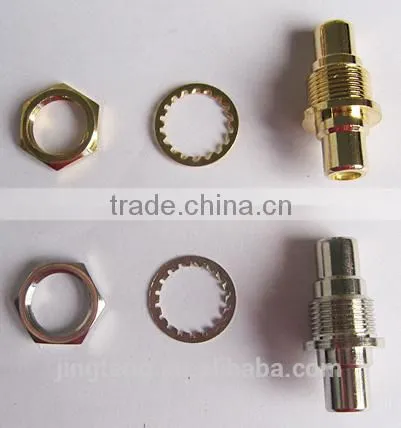

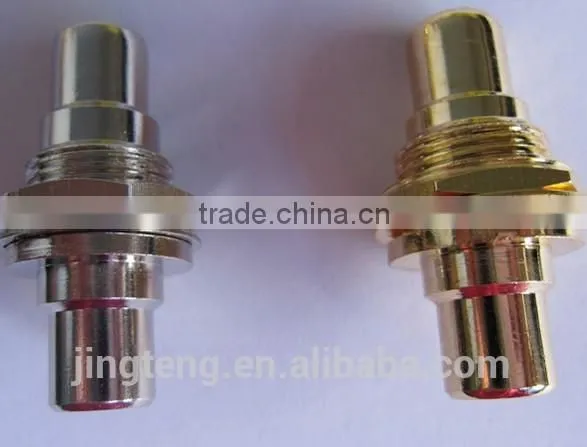

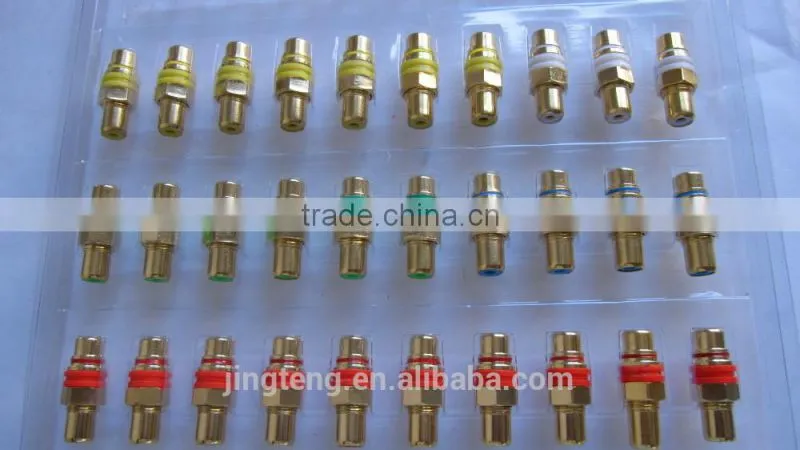

RCA DOUBLE FEMALE BULKHEAD, RCA CONNECTOR AND ADAPTOR,RCA JACK

RCA DOUBLE FEMALE BULKHEAD, RCA CONNECTOR AND ADAPTOR,RCA JACK photo-1

RCA DOUBLE FEMALE BULKHEAD, RCA CONNECTOR AND ADAPTOR,RCA JACK photo-2

Negotiable MOQ: 3000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Model Number:

JT3-1003

Contact Supplier Request Quote Chat Now

Changzhou Jingteng Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name JT

Model Number JT3-1003

Product Description

Electric Data
Characteristic Impedance	75ohm
Frequency Range	0-1GHz
Working Voltage	500 VRMS(max at sea level)
Dielectric Withstanding Voltage	1500 VRMS(min at sea level)
Contact Resistance	Inner: 10 milliohms(max)
	Outer: 5 milliohms(max)
Insulation Resistance	1000 megohms(min)
Mechanical Data
Durability Mating	1000 Cycles min.
Material Data
Connector Parts	Materials	Plating Finish
Body	Brass	Gold or Nickel
Female Pin	Beryllium Bronze or Phosphor Bronze	Gold or Nickel
Insulators	PTFE	N/A
Environmental Data
Temperature Range	-30~+80℃

Packaging & Shipping

1.We can shipping all over the world by DHL, FedEx, UPS, TNT and EMS. Pls contact us directly and we will use the way you prefer and convince..
2.We will ship the items within working days after the payment is reached. It will take around 3-10 days to reach your hands .
3.We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4.Any import fees or charges are the buyer's responsibility.
