usb cable micro usb cable usb data cable

tube inside carton outside

Specifications

USB AM to Micro USB
USB AM to AM
USB AM to Mini USB 5Pin
USB AM to USB AF
Cable spec: UL2725 1P+2

2.0mm Mirco USB Cable:



Specifications :

Connector: USB A Male Type to Mini USB Connector

Or USB A Male Type to Mirco USB Connector



Shell Plating: Nickle

Contact plating: Gold plated on contact area

Nickle plating on soldering area



Cables Options:

UL2725 AWG28*1P + AWG28*2C +Al/Mylar + Drain/ Braid

UL2725 AWG28*1P + AWG24*2C +Al/Mylar + Drain/ Braid



Jacket Color: BLACK, WHITE

The best price and highest quality

UL RoHS compliant, UL No: E343427

OEM and ODM are accepted

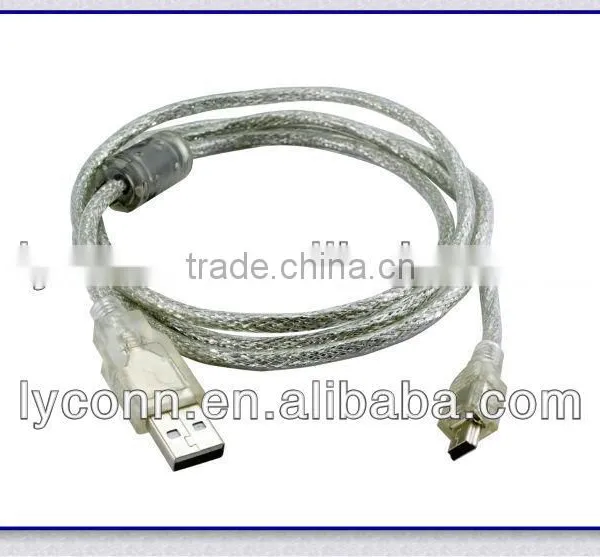

2.0mm Mini USB  Cable
Housing material: PBT 30% G/F 94V-0
Contact material: brass
Contact plating: gold 1u inch on contact area other 100u-inch minimum lead
Current rating: 0.5A
Contact resistance: 2 ohms/m
Insulator resistance: 100M ohms minimum
Dielectric withstanding: 250V AC for one minute
Operating temperature: 0 to +60 degree Celsius
Shell material: brass
Shell plating: Ni 50u-inch minimum
Wire: 64 braid
UL, RoHS compliant



USB Connector Cable:



 1. Application: For mobile charge, for signal transfer

2. Cable Specification: AWG24, AWG26, AWG28

3. UL Approved

4. Color: White, Grey, Black
Features:

 1. Cable out diameter for opitions: OD=3.5mm, 4.0mm, 4.5mm;

2. USB 2.0/3.0 Cable, Mini USB, A male to B male;

3. High quality and high transfer speed;

4. Cable Jacket: PU, PVC, matt, dull and shining optional;

5. Connector; Removable assembly type, moulding type;

6. Special color, dimension, core, conductor, connector are welcome;

7. Application: For Computer, Printer, Camera, Card Reader, Digital Devices;

8. Colors optional: Black, White, Red, Blue, Green, Yellow, Orange, Grey;

9. Sample Policy: Normal samples are free, and the feight charges are usually collect by receiver;

10. Packaging Details: 10~50PCS per bag, 300~400PCS per carton.
