Right Angle Dip Type Box Header Connector
SPECIFICATATIONS :
Current Rating: 3.0 AMP
Contact Resistance: 30 mΩ Max
Insulation Resistance: 1000MΩ Min
Withstand Voltage : 600VAC/minute
Operation Temperature : -40 °C to +105°C
MATERIALS :
Contact Material : Phosphor Bronze
Contact PlatingGold or Tin over 50µ" Ni
Insulator Material: Polyester(UL94V-0) Standard: PA46

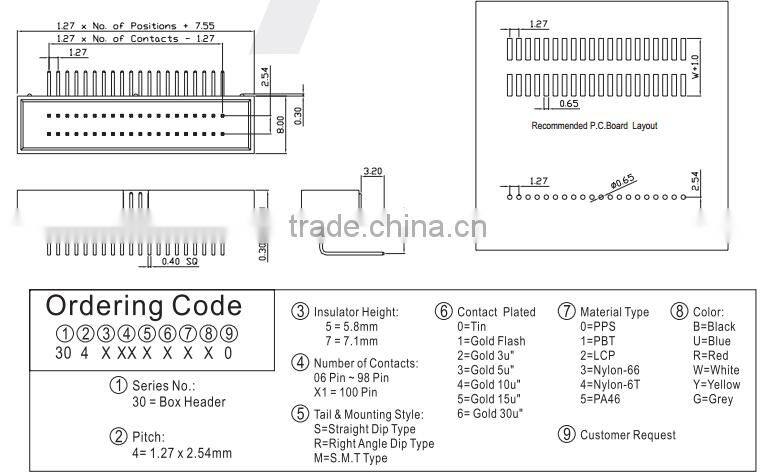

Technical Drawing:
Packing and Delivery
1.This series ic sockets' standard packing method are packed by tray, box, carton;detailed packing is difference for each specifc model;
2.Pakage can be customized like logo,size,method,ect;
3.Shipping method can be Fedex,DHL,TNT,UPS,ect comercial international express for small order quantity;
4.Generaly the time is 7-15 working days after payment,but if have stock,we will delivery soon.
