Home > Products > Digital Video Recorder > 16ch 1080P@25fps HD-SDI DVR, p2p cloud, 16ch Audio,16ch alarm ,1080P@25FPS realtime recording,8pcsSATA port
16ch 1080P@25fps HD-SDI DVR, p2p cloud, 16ch Audio,16ch alarm ,1080P@25FPS realtime recording,8pcsSATA port
- shenzhen
- T/T Credit Card
You May Like
-
4ch 1080P EXSDI DVR, p2p cloud, 1080P@15FPS recording,2pcs SATA port
-
8ch 1080P EX SDI DVR,1080P video recorder,8 port DVR,2pcs Sata port
-
8ch 1080P SDI DVR,1080P video recorder,8 port DVR,2pcs Sata port
-
16CH HD-SDI DVR,16ch 1080P HD-SDI recorder,1080P@15fps,2pcs SATA
-
2014 New product,AHD 720p p2p 16ch AHD DVR , HD dvr security camera system
-
8CH AHD 720p p2p 8ch AHD DVR , HD dvr security camera system
Product Details
| Place of Origin | Guangdong, China | Brand Name | DAKANG | |
| Model Number | DK-SDI7116S |
Product Description

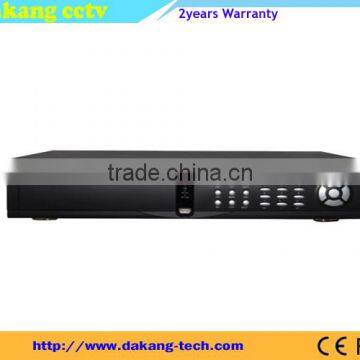

DK-SDI7116S 16ch 1080P Realtime HD-SDI DVR
Key Feature:
1.16ch 1080P realtime preview
2.Support 25/30 Optional
3.Support 16ch 1080P realtime recording
4.Support coaxial two-way data communication, and through receiving end can send control signal to gathering terminal, such as PTZ twirled, Zoom
5.Long-distance transmission, up to 500 meters high quality 1080P video signal transmission
6.Support tag playback function, mark important video point, which can be playback
7.Support capacity of HDD are assigned to different channels
8.Support file locking; In the video playback interface list, select video file, click on the lock button to lock
9.Support 8 SATA, each up to 4TB
Picture:
rear panel:
specification:
Model No. | DK-SDI7116S | |
system | Pressor | H.264 |
Operating System | Embedded Linux | |
Video | Input | 16ch,BNC(1.0VP-P,75Ω) |
VGA Output | Yes | |
BNC Output | NO | |
HDMI Output | Yes | |
Audio | Audio input | 16ch |
Audio output | 1ch | |
Intercom | No | |
Recording | Realtime recording | 16CH 1080P HD-SDI reealtime recording |
Recording | Schedule,Manual,Motion,Sensor | |
Playback | Realtime playback | 16ch |
Search Model | Time, Event, File Management, Image(snapshot) | |
Backup | USB/HDD/ U Disk | Yes |
USB DVD recorder | Yes | |
Backup Type | DAV/AVI | |
Remote Visit | Support Brower | Yes |
Mobile operating system | Ipone/Android | |
Number of users at one time | 10 users online with professional authority management | |
Alarm | Alarm input | 16ch |
Alarm output | 4 | |
Storage | Number of HDD | 8 SATA |
Support E-SATA | NO | |
| Interface | 1*RS485 |
PTZ | Protocol | PELCOP,PELCOD,LILIN,MINKING,NEON,STAR,VIDO. |
DSCP,VISCA,SAMSUNG,RM110,HY | ||
Way of Controlling | Pan, Tilt, Zoom, Preset, Cruise, Trace | |
Network | Network interface | 10 / 100 Mbps Ethernet (RJ-45) |
Network protocol | TCP/IP, DHCP, DDNS, NTP, SMTP | |
Others | Remote-Controller | Yes |
Power | DC12V/6A | |
Work Temperature | -10°C ~60°C | |
Work Humidity | 10% ~ 90% Humidity | |
more competive price!!
Welcome your inquiry about CVI DVR and
HD CVI Motorized auto focus camera !! AHD camera and Camera
2years warranty!!
OEM!!!!
