Help CenterH.264 16CH 960H Real Time P2p Cloud DVR/NVR,free CMS,Android&iphone Access
Related Products
-
24CH H.264 DVR/HVR,DVR/HVR/NVR 3 in 1 DVR, P2p Cloud,standard HDMI, Onvif,24ch H.264 Network DvrNegotiableMOQ: 1 Piece -
H.264 16ch Full D1 Realtime DVR,p2p TechnologyNegotiableMOQ: 1 Piece
-
DK-7132CHL 32ch D1 CIF Cctv DVR ,Rack Mount 8ch D1+24ch CIF Realtime Recording,2U Casing,4pcs HDD DVRNegotiableMOQ: 1 Piece
-
DAKANG DK-7104QH 4ch Dvr Surveillance System ,4ch 960H Real Time Cctv Dvr With RS485NegotiableMOQ: 1 Piece
-
32ch Standalone DVR,p2p Cloud DVR,2pcs HDD PortNegotiableMOQ: 1 Piece
Specifications
16ch 960H realtime DVR,16ch audio2 pcs SATA HDD,VGA,HDMI,3G,WIFI,HVR Mode
26 languages,p2p Could
8*D1+16 *D1/8*D1+8*720P
DK-7116QH Standalone DVR/HVR
analog + network HD video: 8*D1+16 *D1/8*D1+8*720P/8*D1+(2*1080P+2*720P)/4 *D1+20*D1;
/4 *D1+(2*1080P+10*D1)/4 *D1+(1*1080P+1*720P+10*960H);
Key Features:
Support HDMI, VGA and CVBS synchronous output.
Support zoom any area selected by the mouse under PELCO-D/P PTZ control protocol.
Support one key to run recording function.
Support holiday recording and snapshot setup.
Support schedule snapshot, manual snapshot, alarm snapshot, FTP upload snapshot, playback and backup of the snapshot.
Support search, playback, backup the recording according to events; support playback and search pictures in local.
Support smart search in the self-defined areas in the playback of the recording.
Support 2 SATA ports.
Support maximum 16CH playback.
Support NTP(Internet timing), DHCP(automatically get IP),Email(mail service),UPNP(Universal Plug and Play).
Picture:

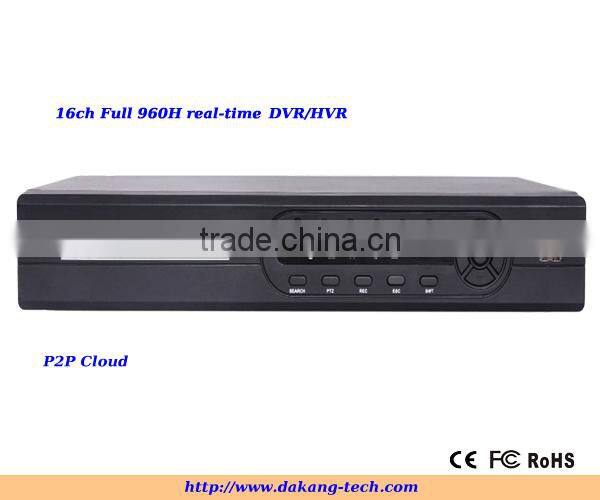

Front Panel A:

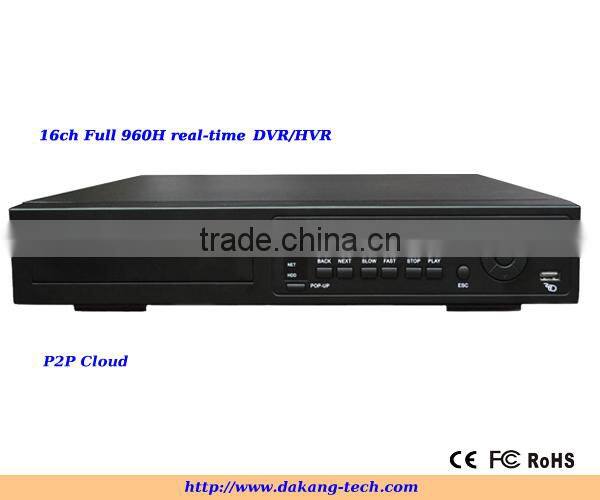

Front Panel B:
Panel C:

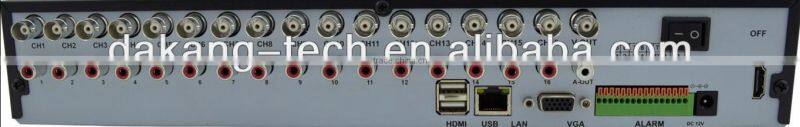

Back Panel:
Specification:
System |
Main processor |
High performance embedded microprocessor/Hi3531 |
Operating system |
Embedded LINUX operating system |
|
Language |
English, Simplified Chinese , Traditional Chinese , Brazilian , Russian, Portuguese, Spanish , Italian , Korean , French , Czech , Hebrew , German , Finnish , Bulgarian , Swedish , Romanian , Greek, Etc. |
|
System resources |
Pentaplex function: Live, recording, playback, backup& remote access |
|
Control mode |
Front panel, USB mouse, Network, remote control |
|
Video |
Input |
16ch , BNC(1.0Vp-p, 75Ω) |
Standard |
PAL / NTSC |
|
Output |
1 HDMI,1 TV, BNC,(1.0Vp-p, 75Ω), 1 VGA |
|
Audio |
Input |
16ch, RCA(200-2800mV,30KΩ) |
Output |
1ch, BNC(200-3000mV,5KΩ) |
|
Display |
Display split |
1/4/9/16 |
Resolution |
1920*1080,1280*720,1440*900,1280*1024, 1024*768,800*600 |
|
Tour display |
Support |
|
OSD |
Camera title, time, video loss, camera block, motion detection, recording |
|
Record |
Video/Audio compression |
H.264/G711 |
Image resolution |
960H(960x576/960x480/D1(704 X 576/704 X 480), HD1(704 X 288/704 X 240), CIF(352 X 288/352 X 240) |
|
Encoding speed |
Main stream: CH1~16 960H(1~25/30FPS) |
|
Extra stream: CIF(1~25FPS),QCIF(1~25FPS) | ||
Image quality |
1~6 level (level 6 is the best),VBR effectively |
|
Record mode |
Manual, schedule(always, motion detection, video lost, video blind, alarm), stop |
|
Record sequence |
Manual>Alarm>Motion detection>General |
|
Alarm |
Triggering event |
Record, Snapshot, Alarm, Email |
Motion detection |
Area: 396(22 * 18), Sensitivity: 1-6 level |
|
Video loss |
Support |
|
Alarm input |
8ch |
|
Alarm output |
1ch |
|
Playback and backup |
Playback channel |
1/4/8/16 |
Playback speed |
CIF 400/480FPS |
|
Search mode |
Time/Date, Alarm, Motion detection & Exact search(accurate to second) |
|
Playback function |
Play, Pause, Stop, Fast play, Slow play, full screen, backup |
|
Backup mode |
Flash drive/USB HDD/Network download |
|
Network |
Interface |
RJ-45 port(10/100M) |
Network functions |
TCP/IP,UDP,DHCP,DNS,IPFilter,PPPOE,DDNS,FTP,Email,UPNP,Alarm Server,ARSP,3G,WIFI |
|
Remote operation |
Monitor, PTZ control, Playback, System setting, File download, Log information |
|
web browsers |
Internet Explorer(Support cloud server) |
|
P2P Cloud Service |
Support Cloud Server: , each DVR build-in a Serial Number |
|
Mobile Surveillance |
Support iPad& iPhone ,Android phone/( cloud APP: Vmeyecloud) |
|
Hard disk |
Interface |
2 SATA Ports, each port support max 2TB HDD |
management |
Hard disk standby technology, hard disk failure alarm |
|
Auxiliary interface |
USB port |
2 USB Ports: 1 for mouse control, 1 for backup |
RS485 |
PTZ Control |
|
Environment |
Power supply |
DC 12V ,5A |
Environment |
-10°C ~+55°C /10~90%RH/86~106kpa |
|
Dimension |
370*300*62MM |
|
Weight |
5.0KG(without HDD) |
Easy remote access from mobile phone and IE explorer:
A. Remote acecss from Mobile Phone:
1. Find the QR code at the bottom of DVR,like below:
2. Download APP: Vmeyecloud
3.login APP, Select "by Device","Add","Input Name" anyone,"SerialNo" input or Scan QR code, "User name" admin, "Password",no need fill, choose Cloud on, then Save thses,then go back,select your DVR .
B. Remote acecss from Mobile Phone:
1. Login cloud server: http//,
choose "by Device"
2. input DVR serialNo and verify code.
Certificate:
OEM:
Customer Logo can be stuck/Printed on goods/color box upon confirmed.
Warranty
All our products have 2 years warranty.
Payment&shiping
