JB-811 melamine tableware machine, Melamine Tableware Moulding Machine
Main Usage and Character
This machine can be applied in pressing various kinds of melamine tableware.
(1) The running speed is from fast to slow to reduce the impact of the machine.And the voice is low.It is not easy to damage the mould.
(2) Manual peration and auto operation for choice
(3) Mould locking F=200 TONS
(4) The oil circuit is desighed reasonable,which works quckly and steadily.The valves are adopted famous brand products.
(5) By using high and low pressure way,it can save the energy greatly.
Several mold machine to you choose, 150Ton 200Ton 250Ton 300Ton, the detail you can see the catalog
This JB-811 use electrical control, adopting imported computer,
and characters of fast action, silence, smooth working, and having high–performance control system.
Machine is easy to operate,
can match with JB-811P preheat machine
to heat raw material powder to save the produce time and increase the capacity.

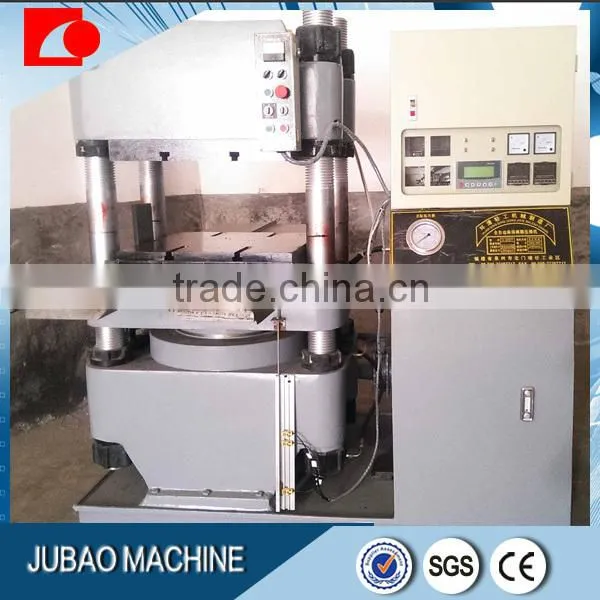

General Description of the Structure
This machine is composed of main machine,hydraulic control system,electrical instrument and heater etc.The main machine has two parts,upper board and lower board.The hydraulic device is placed on the top of oil tank and the electrical box is on the front.The oil pressure gauge shows the pressure and the pressure switch controls the pressure.The plunger piston presses the mould from fast to slow,then heats by heating device to make the marerial sulfurization and form.The distance between upper board and lower board can be adjusted by the nut.The max distance can be 300-400mm.
Technical parameter
| Pressure | Unit JB-811-150T | JB-811-200T | JB-811-250T | JB-811-300T |
| crock dia. | Mm 300 | 360 | 420 | 480 |
| number of layers | 1 | 1 | 1 | 1 |
| plate size | Mm 500x500 | 600x600 | 600x600 | 720x800 |
| stroke | Mm 400 | 400 | 400 | 400 |
| total power | Kw 8 | 7.5 | 7.5 | 14 |
| working voltage | V 380 | 380 | 380 | 380 |
| main motor | Kw 3.7 | 5.5 | 5.5 | 7.5 |
| weight | Kg 2500 | 4200 | 4800 | 7500 |
| dimension(LXWXH) | M 1.5x1.15x2.2 | 1.5x1.3x2.2 | 1.9x1.3x2.3 | 2x1.5x2.25 |
PE FILM PACKING
Tableware Molds we also provide tableware mold making according customer's sample
Finished Products
we warm welcome you visit, we are not only manufacture melamine tableware machine, we can also helo client design the tableware pattern or make melamine paper according client's design.
After-sales service
Thanks for choosing JUBAO!we possess the world-top service systerm. it has the following contents:
1. Factory plant: we provide to arrange customer’s factory, complete line and material purchasing or guiding
2. Repairing Guarantee of product: we provide spare parts for machine, permanent payable maintenance programe, and one year maintenance for free for electromechanical.And we also will send engineer to buyer side according to customers.
3. Follow-up service of product: we will notice you since the product leaves the factory.
4. Customer Document: we have established a data base for all customers since the beginning of production.
5. After complete of engining: we help our customers train fountain equipment operator for free.
6. Error treatment: the customer service department will take action immediately when they recieve any call and provide professional repairer to help you solve your problems as soon as possible.
7. Regular feedback:we will visit the customers again to ask for the suggestion to help improve our quality of service to make you satified
ABOUT US
Established in 2006, Jubao is an enterprise that gathered the design, manufacturing, service in integral and has won the customer’s high opinion and approval by its excellent quality and topgrade services.
As a manufacturer we are always looking for and developing new products that will accomplish customers' needs, we believe that the success of our company is dependent upon the success of our customers, so we are committed to building relationships with our customers by listening to their needs and goals and to provide Super-Quality machines.
|
|
|
|
|
|
|
FAQ
1. Q: How about the quality?
A:We guarantee them for 1 year generally, but our customer used our machines for many years without problem.
2. Q: How long is your guarantee?
A: One year(Calculated from the equipment arrives at the customer’s side.).
If there is any problem within guarantee period (excluding cased by human's wrong action), we will send you spare parts for free.After this period we will definitely support you when needed. You will be welcome to contact us with any problem may happen.
3. Q: How should I order? What payment method do you accept?
A: Choose the products what you like, and send inquiry to us for more details (or you can call us, chat with us by online chat software such as TradeManager,Skype; Mobile chat software such as Whatsapp,Line,Viber,Wechat,etc.). After confirming all details and signing the contract, you can pay prepayment, then we produce machines after receiving prepayment. We deliver these machines by ship according to our agreement. We send the documents to you after shipment. We accept payment by T/T generally, and also accept L/C
4.Q: How can I get to your company?
A:We are located in Quanzhou City, China.
You can get a flight to xiamen International Airport.We will go to airport to pick you up. It takes around one hour from airport to our office. You may also come to our city by High Speed Railway train, we will go to train station to pick you up.
5.Q: Lead time?
Within 5-10 days after receive payment
6.Q: Packing?
PE film packing or fiber wooden boxes, suitable for International transportation
If you want to know more information about our products welcome to contact us in any time, And welcome to our factory!
