HTL-2200 automatic multi-function center filling egg roll/wafer stick unit
Product details
Characteristics:

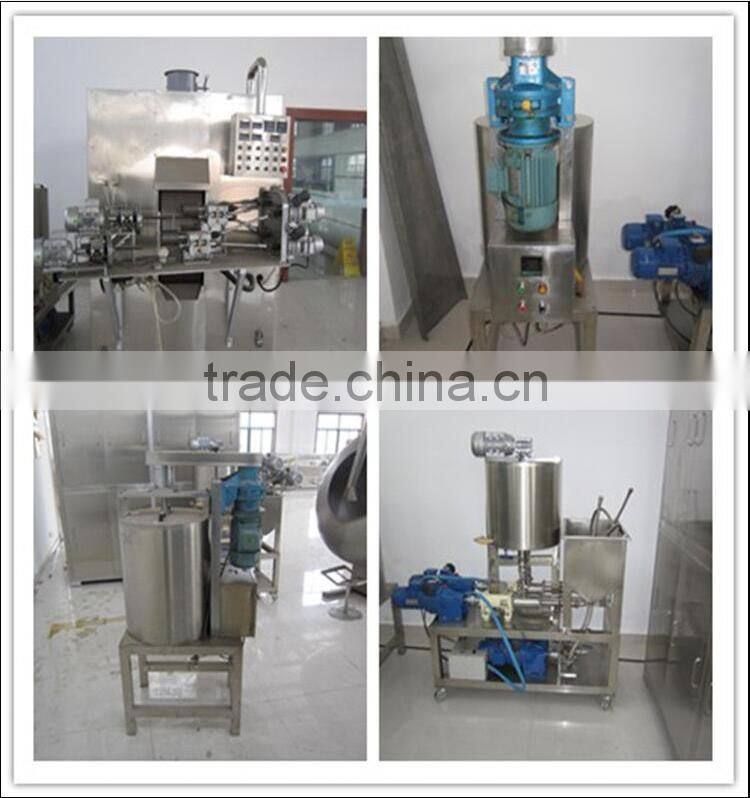

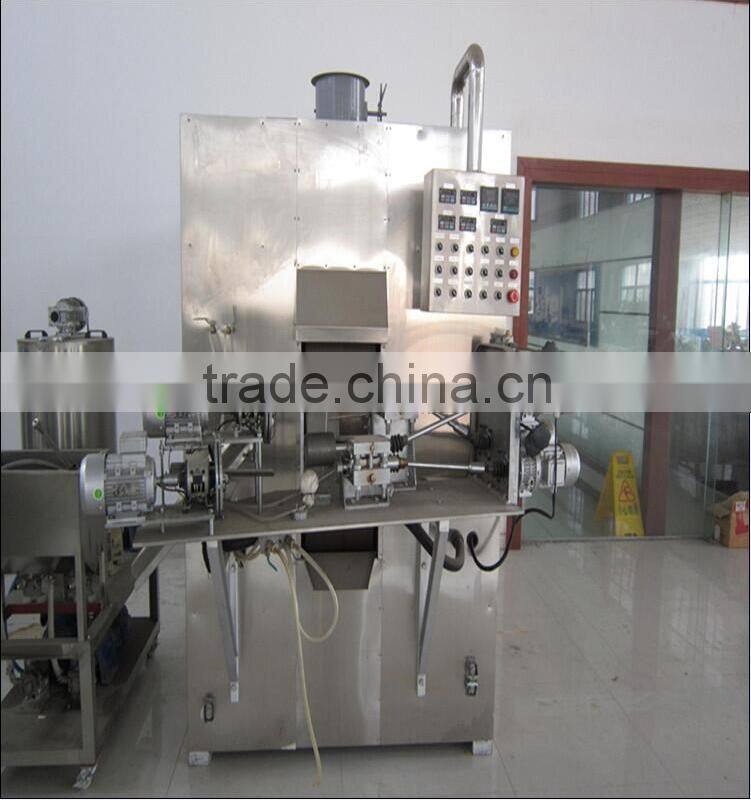

The model HTL-2200 machine is a domestic new-generation and fully-automatic prodiction line, researched and developed with Japanese top-notch technology, to produce hollow omelet. The production is made up of a beating machine for raw and semifinished materials, a curing main machine, two conveyors, two slurry-poured machine and a conveyer belt. According to the prescription, raw materials are placed into the beating machine to be stirred into even powdered slurry, then conveyed onto the heated wheel hub in the curring machine. After cured, the soft bar is scraped by a scraper and put in reeling shaft to circle into a bar shape. And cut into a needed length to be collected in the conveyer belt, through grooved rails. The baking machine is heated with gas to give a space of a effective temperature-holding, utilizing energy reasonably, by a automatic control system including ignition, alarm cut-off gas generator and temperature control devices. The machine of the unit are installed with a program-controlled system. The speed of the wheel hub and the powder slurry thickness can be regulated. The diameter of water bar can be changed by transferring different reeling bar ahafts. The length of water bar can be changed by adjusting the diaphragm apertura, which controls a shear. The cream and other in fiuings can be completely or partly poured into hollow-cora wafer bar. In the proceeding above, their main engines are controlled by their own frequency convers.
Main technical parameter:
Type |
HTL-2200 |
Diameter of wheel hub (mm) |
2000 |
Gas consumption (kg/h) |
4 |
Power consumption (kw/h) |
10 |
Production capacity (kg/h) |
Hollow core: 25~30; Poured core: 50~60 |
Dimension (L*W*H) (mm) |
3400×1700×2500 |
Weight (T) |
5 |
Application
Ξwelcome to visit our factory Ξ
Our Company
As a Sino-US company, Haitel Machinery Co,.Ltd is aprofessional manufacturer for automatic packing, candy chocolate, egg-roll, cake and other food processing machinery.Specializing in confectionery processing equipment, Haitel has a professional team withe strong techincal and R & D knowledge to develop advanced food equipments to cope with market changes.
Large-scale workshop
Office
We have got lots of certificates related to our industry.
We attend many exhibitions every year and honored to have clients visit us !
Pre-sale
nfirm machine type: Negotiate with clients to seclect the correct machine according to customers’ requirment.
2.Quote and Sign firm contract: After confirm with customers with all details, such as payment terms, model, delivery time, send official quotation to clients.
After-sale
1.When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2.In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3.From the date of the buyer receive the machines, free warrant for 12 months
Safe package
If you have any questions,pls feel free to contact me! We are looking forward to cooperate with you!
