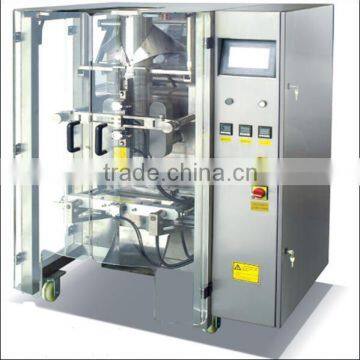

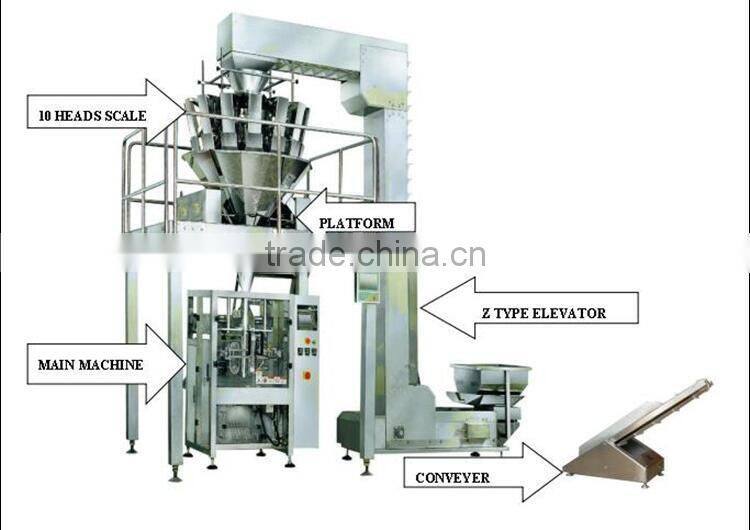

HTL-V420/520/680 Automatic
Preformed Pouch Packing Machine
Characteristics:
1. PLC control with stable, reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting, be finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with vacuum double belt: less pulling resistance, bag is formed in good shape with better appearance. Belt is resistant to be worn-out.
4. Double servo control, high precision orientation, size more nicely.
5. External film releasing mechanism: simpler and easier installation of packing film.
6. Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple.
7. Close down type mechanism, defending powder into inside of machine.

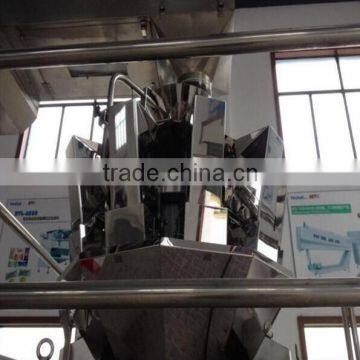

8. Multihead weighter measuring, packing weight more precision, product cost more low.
Main technical:
Model |
HTL-V420 |
Bag length (mm) |
80~300 |
Bag width (mm) |
50~200 |
Max width of roll film (mm) |
420 |
Packing speed (bags/min) |
30~60 |
Measuring range (ml) |
150~1200 |
Air pressure (Mpa) |
0.65 |
Gas consumption (m³/min) |
0.3 |
Power voltage (V) |
220V |
Power (KW) |
2.2 |
Dimension (L*W*H) (mm) |
1320*950*1360 |
Weight (kg) |
540 |
Application:
It is suitable for packing of several of granule, slice, stripe, such as candies, potato chips, shrimp chips, jelly, peanut, hardware, etc.

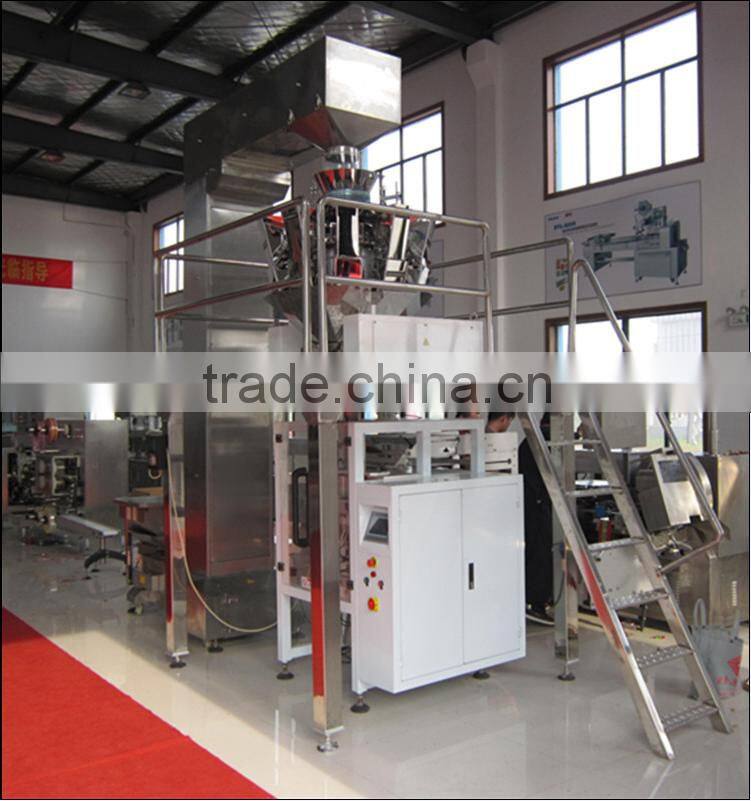

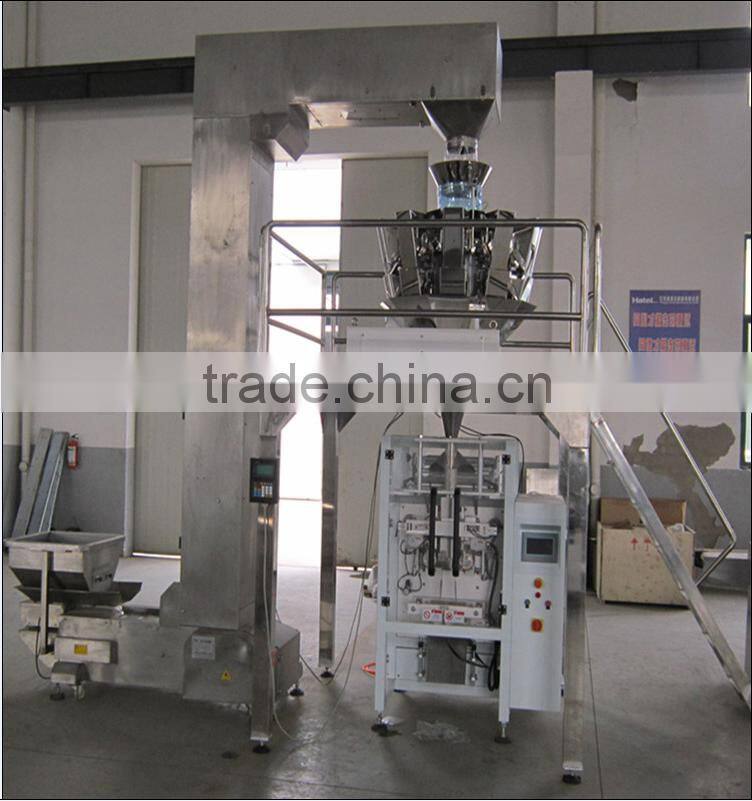

Ξwelcome to visit our factory Ξ
Our Company
As a Sino-US company, Haitel Machinery Co,.Ltd is aprofessional manufacturer for automatic packing, candy chocolate, egg-roll, cake and other food processing machinery.Specializing in confectionery processing equipment, Haitel has a professional team withe strong techincal and R & D knowledge to develop advanced food equipments to cope with market changes.
Large-scale workshop
Office
We have got lots of certificates related to our industry.
We attend many exhibitions every year and honored to have clients visit us !
Pre-sale
nfirm machine type: Negotiate with clients to seclect the correct machine according to customers’ requirment.
2.Quote and Sign firm contract: After confirm with customers with all details, such as payment terms, model, delivery time, send official quotation to clients.
After-sale
1.When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2.In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3.From the date of the buyer receive the machines, free warrant for 12 months
Safe package
If you have any questions,pls feel free to contact me! We are looking forward to cooperate with you!
