Vertical&Horizontal Milling Machine
US$ 2,000 - 2,300
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
White Eagle
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZX7550CW Universal Milling MachineNegotiableMOQ: 1 Set -
ZAY7550/1 Horizontal Milling MachineNegotiableMOQ: 1 Piece
-
ZAY7550 Horizontal and Vertical Milling MachineNegotiableMOQ: 1 Piece
-
X1450 Universal Swivel Head Milling MachineNegotiableMOQ: 1 Set
-
X6323A Universal Radial Milling MachineNegotiableMOQ: 1 Set
Condition
New
Place of Origin
Anhui, China
Brand Name
White Eagle
Model Number
ZX7550CW
Type
Universal
CNC or Not
Normal
Voltage
Customer Requirement
Power(W)
0.85/1.5Kw
Dimension(L*W*H)
1290*1220*2100mm
Weight
850/1000kg
Certification
ISO9001 CE
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
1.Product Description
Features
1)Vertical milling head can be moved forward or backward
2) Vertical milling head can swivel +-90‘ vertically and +-360' Horizontaly
3)Adjustable stops on table
4) Manual quill feed
5) High tensile casting iron elevative table
6)Double motor with powerful force
Specification
| Specification | Unit | ZX7550CW | ZX7550W |
| Max.drilling dia | mm | Φ50 | Φ50 |
| Max.horizontal milling dia. | mm | Φ100 | Φ100 |
| Max.vertical milling dia. | mm | Φ25 | Φ25 |
| Max.boring dia. | mm | Φ120 | Φ120 |
| Max.tapping dia | M16 | M16 | |
| Spindle taper | ISO30, R8, MT4 | ISO30, R8 ,MT4 | |
| Spindle speeds range(V/H) | r.p.m | V:115- 1750(8) H:60-1350(8) | V:230- 1825(8) H:60-1350(8) |
| Spindle travel | mm | 120 | 120 |
| Table size | mm | 800X240 | 800X240 |
| Table travel | mm | 400X230X350 | 400X230X350 |
| Main motor power (V/H) | Kw | V:0.85/1.5 H:2.2 | V:0.85/1.5 H:2.2 |
| Packing size | mm | 1140X1120X2220(1 unit/PKG) 1140X1220X2220(2 units/PKG) | 1140X1120X2220(1 unit/PKG) 1140X1220X2220(2 units/PKG) |
| N.W/G.W | Kgs | 850/1000 | 850/1000 |

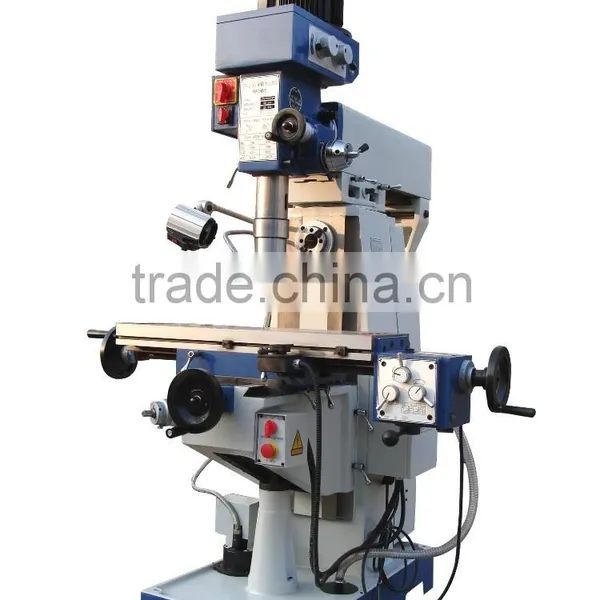

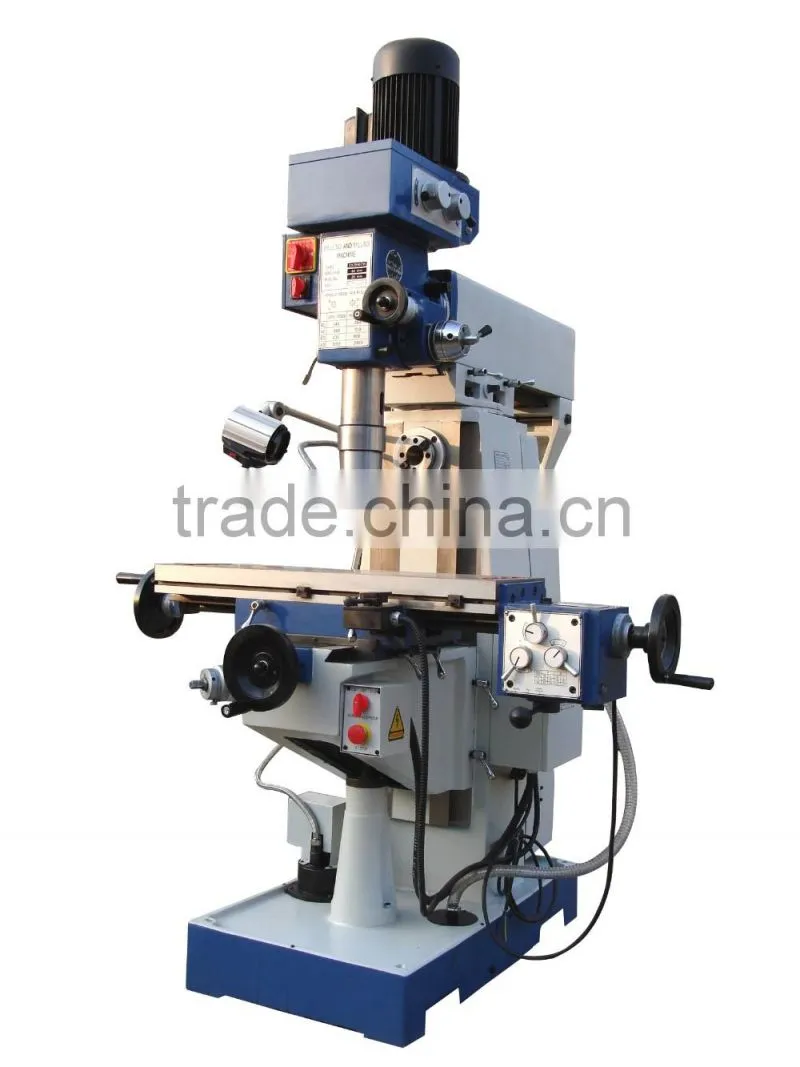

2.Machine Photo
3.Manufacturing Ability
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
1994
Factory Size
10,000-30,000 square meters
Total Employees
501 - 1000 People
