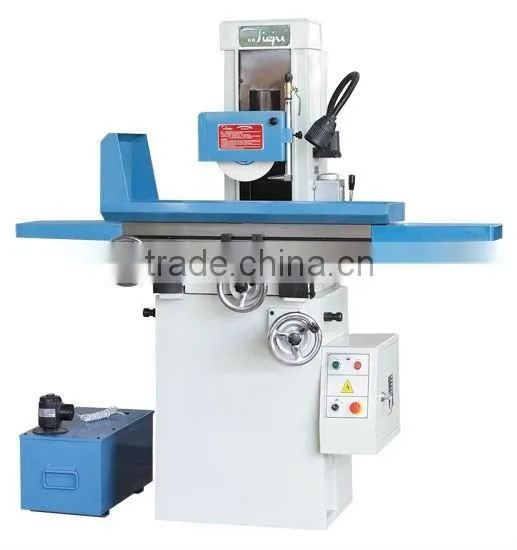

Surface Grinding Machine M618A
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Surface Grinding Machine
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Surface Grinding Machine
CNC or Not
Normal
Max. Grinding Diameter
190mm
Max. Grinding Length
500mm
Place of Origin
China
Brand Name
WHITE EAGLE
Model Number
M618A
Voltage
AS BUY'S NEED
Power(W)
1.1KW
Dimension(L*W*H)
1060x1170x1870
Weight
750KGS
Certification
ISO9001 CE TUV
After-sales Service Provided
No overseas service provided
| Product Description:"1 Adopt the exceeding precise class7(P4 level) ball bearing for spindle | ||||
| 2 Bring transmission by synchronous belt, operating simple and convenient | ||||
| 3-axis manual operation, X, Y axis can be eletric auto operation. | ||||
| High rigidity H-frame column with spindle center to table | ||||
| Enhanced ribbed full cast iron base | ||||
| Enlarged spindle housing for heavier grinding | ||||
| Cartridge w / 4 preloaded class 7 (P4) bearing | ||||
| Roller steel balls on linear table ways for easy and smooth longitudinal movements. | ||||
| Double-V saddle ways for rigidity | ||||
| Manual lubrication system | ||||
| Technical and specification: | ||||
| Table size: 180X400mm | ||||
| Max. Grinding size: 190X420X270mm | ||||
| Max. Longitudinal travel: 200mm | ||||
| Max. Transverse travel: 400mm | ||||
| Max. Vertical travel: 380mm | ||||
| Grinding wheel speed: 2850rpm | ||||
| Wheelhead size: (OD X W X ID) 180 X 13 X 31.75mm" | ||||
| Manual surface grinder M618A | ||||
| Technical Parameters | Units | M618A | MS618A | |
| piece to be Ground | mm | 500×190×335 | 500×190×335 | |
| ( L×W×H) | ||||
| Max. Grinding Length | mm | 500 | 500 | |
| Max. Grinding Width | mm | 190 | 190 | |
| Distance From Table Surface To Spindle Center | mm | 335 | 335 | |
| Slide way | V-type rail with Steel-ball | V-type rail with Steel-ball | ||
| V-type rail with Steel-ball | Kg | 200 | 200 | |
| Table Size (L×W) | mm | 460×180 | 460×180 | |
| Number of T -Slot | mm×n | 14×1 | 14×1 | |
| Cross Feed On Handwheel | mm | 0.02/Graduation 2.5/revolution | 0.02/Graduation 2.5/revolution | |
| Vertical Feed On Handwheel | mm | 0.01/Graduation 1.25/revolution | 0.01/Graduation 1.25/revolution | |
| Wheel Size (dia.×width×bore ) | mm | 200×16×31.75 | 200×16×31.75 | |
| Spindle Speeds | 50Hz | rpm | 2850 | 2850 |
| 0-6000 | 30-6000 | |||
| Spindle Motor | Kw | 1.1 | 1.1 | |
| Coolant Pump | Kw | 0.4 | 0.4 | |
| Minimum of Numerical Display | mm | / | 0.001-0.005 | |
| Machine Size (L×W×H) | mm | 1550×1060×1590 | 1550×1060×1590 | |
| Packing Size (L×W×H) | mm | 1060×1170×1870 | 1060×1170×1870 | |
| Gross,Net | T | O.75, 0.65 | O.79, 0.69 | |

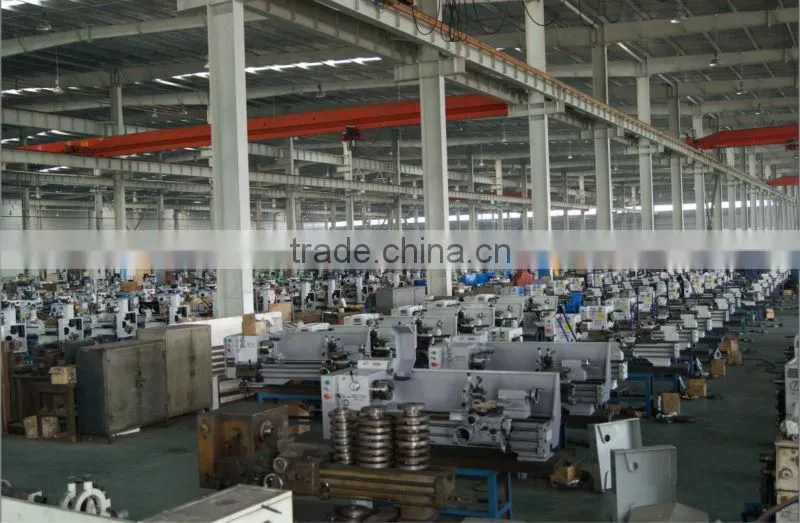

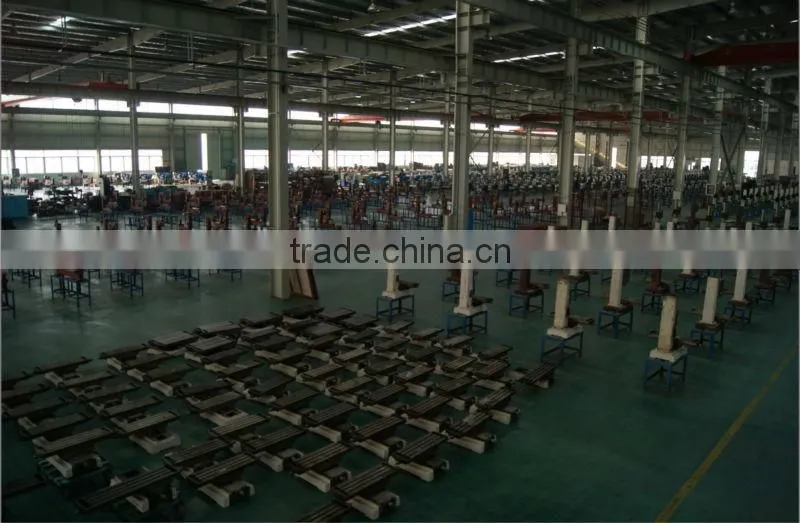

Manufacturing Ability
