Specifications
1.Hot dipped galvanized ladder type cable carrier tray2.Flexible,light,nice
3.Professional manufacturer for 12 years
4.TUV

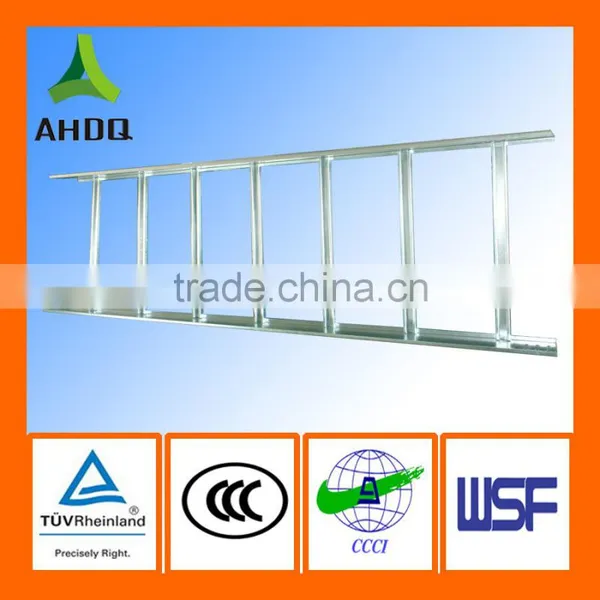

Hot dipped galvanized ladder type cable carrier tray
Features of steel cable tray
- Be made up of Q235 steel sheet with high quality
- Widely used in power plant, chemical plant, real estate, subway, tunnel, etc
- Take an important part in cable tray area
- Durable(usually more than 30 years’ service time ),convenient for cutting at site, maintenance free, large load bearing
Application
- Suitable for normal cable with large diameter
- High & low voltage cable
Advantage
- Light weight-compared with traditional cable trays
- Low cost
- Good at abstraction of heat
- Convenient for install
Surface finishing
- Electro polishing-for stainless steel
- Hot dipped galvanized A. the thickness of zinc coating is above 350g/m B. mainly used outdoor electric projects with high humidity C. corrosiveness resistance
- Electrostatic spraying A. any color you can choose B. mainly used indoor electrical projects
- Electrolytic zinc plating
Dimensions
- Width: 100mm-800mm
- Length: >=2000mm
- Height: 60mm/100mm/150mm
- When height is 60mm and 100mm, each end has 6 connecting holes.
- When height is 150mm, each end has 12 connecting holes.
- Customized
Package
- Plastic film with wooden pallet
- Customized
Delivery
- Almost 30 days after receiving 30% deposit (for T/T terms),depending on the amount
ZHENJIANG ACE ELECTRIC CO., LTD was established in July of 2001.It’s a manufacturer specialized in cable tray, busbar series, high and low voltage switchboard series and comprehensive suspension and support. It’s located in Zhenjiang which is a city professional in cable tray with convenient transportation access. It is occupied with 36,000 square meters. With more than 10 years’ professional experience and knowledge, our products are widely offered for some domestic important projects in subway, electric, chemical industry, mechanics, etc.
Many facilities were imported from Japan, Germany , Korea and Italy. Meanwhile, we got ISO 9001, ISO14001,ISO 27001 and CMMI ML3 certifications.
Our well-equipped facilities and excellent quality control through the whole stages of production guarantee the satisfaction of our customers. We have many royal customers in Japan ,such as SIEMENS ,JFE, Mitsubishi. Also we get a long-term friendly cooperation with many famous construction companies domestically like Shanghai subway, CRSC, EEB, Shougang Group, Bao steel Group, Shanghai airport and we got well approved.
