Help CenterExpandable Graphite Yarn
Related Products
Specifications
expandable graphite yarn1)can be reinforced with your requested material
2)to braid graphite packing
3)size: 2g/m,3g/m,5g/m
Description

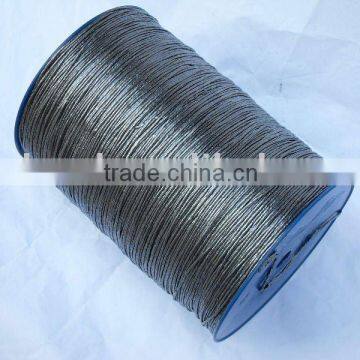

Expandable graphite yarn is made of pure flexible graphite tape. It is twisted and treated by special process and treatment. During the process, the graphite is reinforced with threads of cotton or other materials. It is suitable for sealing under different media, circumstances, temperature and pressure.
Available size
Specification |
2g/m |
3g/m |
5g/m |
Diameter |
1.5mm |
2.0mm |
3.0mm |
Available variety
Code |
Reinforcing material |
|
HDP407-01 |
Graphite yarn reinforced by cotton fiber |
|
HDP407-02 |
Graphite yarn reinforced by cotton fiber + stainless steel wire |
|
HDP407-03 |
Graphite yarn reinforced by cotton fiber + inconel wire |
|
HDP407-04 |
Graphite yarn reinforced by glass fiber |
|
HDP407-05 |
Graphite yarn reinforced by glass fiber + stainless steel wire |
|
HDP407-06 |
Graphite yarn reinforced by glass fiber + inconel wire |
|
HDO407-07 |
Graphite yarn reinforced by carbon fiber + cotton fiber |
|
HDP407-08 |
Graphite yarn reinforced by carbon fiber +glass fiber |
|
Other reinforced material can be supplied on your request | ||
Technical data
Temperature(°C) |
-200~600 |
Pressure(Mpa) |
3~50 |
Linear speed(m/s) |
0~20 |
PH rang |
0~14 |
Sulphur content( ppm) |
1100 |
Chlorine content( ppm) |
50 |
Carbon content |
99% |
Ash content |
0.8% |
Update Date:2011-1-27 19:39:25
