Refractory Products
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
CSHD GRAPHITE
Model Number:
HDF101
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Hubei, China
Brand Name
CSHD GRAPHITE
Model Number
HDF101
Application
metallurgy
Dimensions
Can be customized
Chemical Composition
graphite
Specifications
High-Caobon.High production volume.Stable supply.

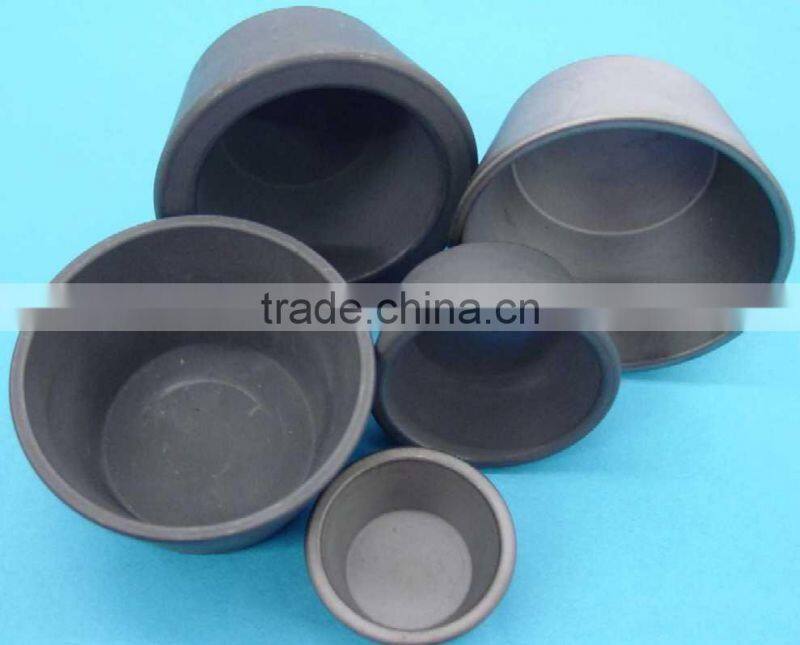

HDF101 Clay Graphite crucible
Function:It is used wildly to smelt copper, crucible, aluminum and other nonferrous metal. It can help with a high purity of metallurgy and has the characteristic of temperature resistance, good heat conductivity and long durability.
Spec:
2#~20# 0.25 kg/#
25#~60# 0.24 kg/#
80#~500# 0.25kg/#
OR:custom-made
Technical Date
Refractoriness )>1650°C
Crushing Strength >8.5Mpa
Modulus of rupture > 6.5Mpa
Bulk Density≥1.68 g/cm3
♣ Main techanical specifications:
Type(#) |
Height (mm) |
Top Diameter (mm) |
30 |
260 |
217 |
40 |
287 |
245 |
60 |
320 |
266 |
80 |
373 |
302 |
120 |
373 |
322 |
150 |
485 |
390 |
200 |
510 |
410 |
300 |
655 |
472 |
350 |
735 |
505 |
500 |
780 |
550 |
