DELOS 80 Watt Road Lamps in Led of 2013 New Product With 5 Years Warranty

DELOS 80 Watt Road Lamps in Led of 2013 New Product With 5 Years Warranty thumbnail-1
DELOS 80 Watt Road Lamps in Led of 2013 New Product With 5 Years Warranty photo-1
US$ 15 - 480 MOQ: 10 Sets
Key Specifications
Get Latest Price
LED Light Source:
CREE /EP STAR
Input Voltage(V):
AC220-240V
Lamp Power(W):
100
Contact Supplier Request Quote Chat Now
Guangdong Delos Lighting Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou/shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source CREE /EP STAR
Input Voltage(V) AC220-240V
Lamp Power(W) 100
Lamp Luminous Flux(lm) 11000
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Other, 2700k-6500k
Working Temperature(℃) -30, +50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
IP Rating IP65
Certification CCC, CE, CQC
Warranty(Year) 3
Place of Origin Guangdong, China
Brand Name DELOS
Model Number DL0708

Specifications

a.DELOS 80 watt road lamps in led of 2013 new product with 5 years warrantyDL0708;
b. reflectors/lens;

   DELOS 80 watt road lamps in led of 2013 new product with 5 years warranty(DL0708)

DELOS 80 watt road lamps in led of 2013 new product with 5 years warranty



DELOS 80 watt road lamps in led of 2013 new product with 5 years warranty

  • Simple elegant looking ,consisten color.
  • Combining LED module and frame structurem the lamp is made of die cast aluminun alloy.
  • Series powers available realized by adjusting LED modules quanity.
  • Special reasonable thermal design ensures long term life span of lamp.
  • The light distribution is designed for professional optical and high efficiency.
  • Both lamp structure and electrical safety are in full compliance with EN60598 GB 7000 Standard.
  • Eletrial class: Class I
  • Protection:Ip65



I) Specification of 80 watt road lamps in led of 2013 new product DL0708 SERIES:





DL0708 LED street light specification
Article NO. DL0708T DL0708U DL0708 DL0708V DL0708W DL0708X
Input voltage AC220-240V AC220-240V AC220-240V AC220-240V AC220-240V AC220-240V
Frequency 50-60Hz 50-60Hz 50-60Hz 50-60Hz 50-60Hz 50-60Hz
Power factor >0.9 >0.9 >0.9 >0.9 >0.9 >0.9
THD <15% <15% <15% <15% <15% <15%
Source 42PCS 56PCS 70PCS 84PCS 98PCS 112PCS
LED power 90W 120W 150W 180W 210W 240W
Total power Max 100W 130W 170W 200W 230W 260W
Luminous efficiency >100lm/W >100lm/W >100lm/W >100lm/W >100lm/W >100lm/W
Inital luminous flux 11000lm 14300lm 18700lm 22000lm 25300lm 28600lm
Luminaire efficiency >84%
Operating temperature -30ºC- +50ºC
Working humidity RH10% - 90%
Color rendering index Ra>85
Configuration Die-cast aluminum alloy housing
Diffuser High-tempered glass
Ingress protection rating IP65
Economical lifetime >50000h
Wind resistance Index Class 12
Electrical class Class I
Dimension 510*320*82mm 572*320*82mm 634*320*82mm 696*320*82mm 758*320*82mm 820*320*82mm

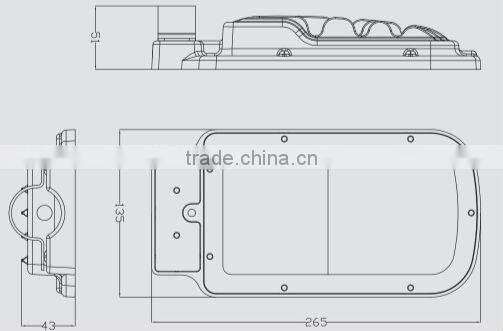

II) Dimension of 80 watt road lamps in led of 2013 new productDL0708 SERIES:



 DELOS 80 watt road lamps in led of 2013 new product with 5 years warranty



III) Light distirubution of 80 watt road lamps in led of 2013 new productSERIES:







DELOS 80 watt road lamps in led of 2013 new product with 5 years warranty



IV) Real images of 80 watt road lamps in led of 2013 new product:

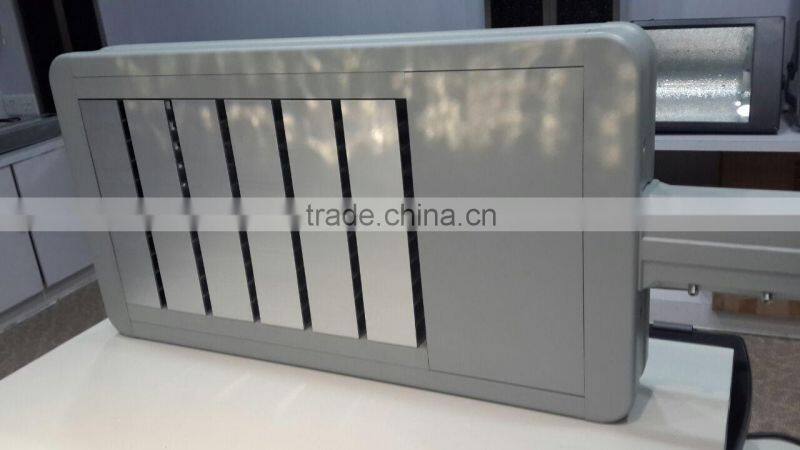

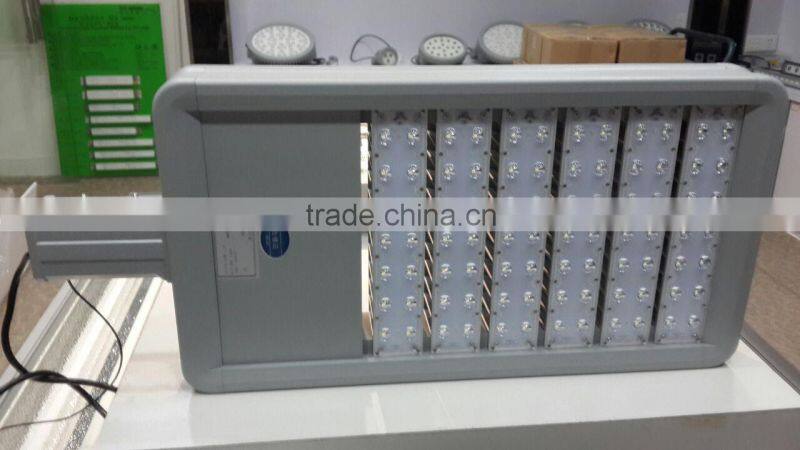

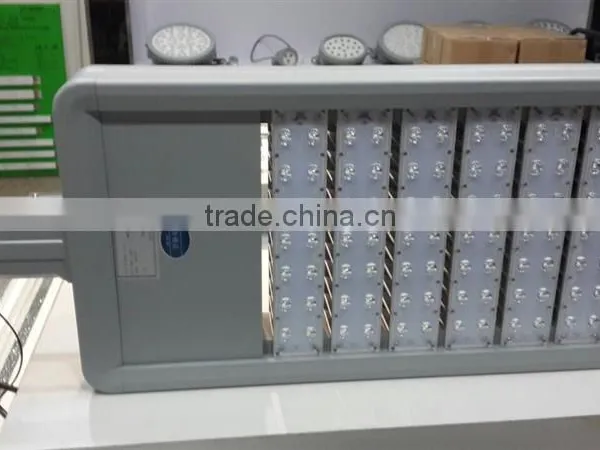

the front and the back

DELOS 80 watt road lamps in led of 2013 new product with 5 years warranty



DELOS 80 watt road lamps in led of 2013 new product with 5 years warranty

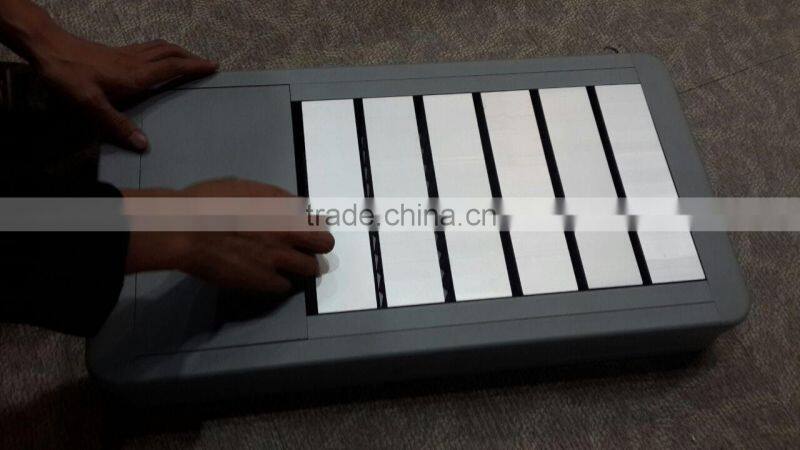

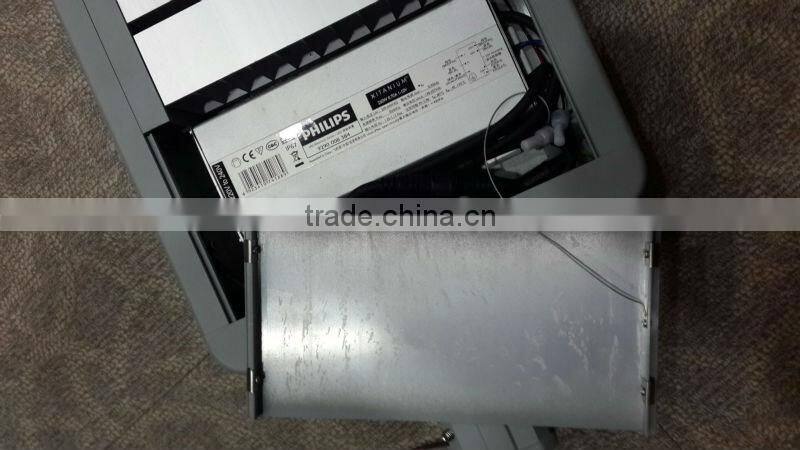

gear box open without tool

DELOS 80 watt road lamps in led of 2013 new product with 5 years warrantyDELOS 80 watt road lamps in led of 2013 new product with 5 years warranty



packing



DELOS 80 watt road lamps in led of 2013 new product with 5 years warrantyDELOS 80 watt road lamps in led of 2013 new product with 5 years warranty

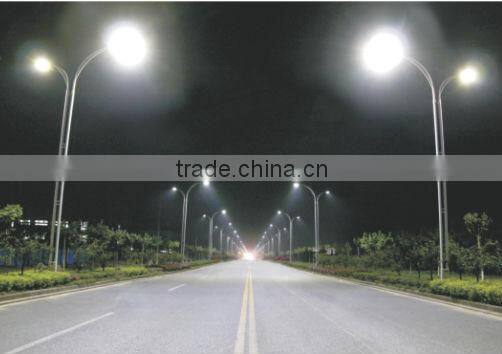

V) Projects

 DELOS 80 watt road lamps in led of 2013 new product with 5 years warranty





Company introduction







Guangdong Delos Lighting Industry Co., Ltd.,founded in 2005, is a professional company specializing in the development, manufacture and sales of outdoor lighting products. Our product line covers 12 categories of lighting products including guardrail light, linear light, tunnel light, floodlight, LED streetlight and some other kinds of LED lighting. With Certifications to CCC, CE and ISO9001:2000 standards, we proudly provide products of superior quality to our customers.



DELOS 80 watt road lamps in led of 2013 new product with 5 years warranty
