Delos Rectangular Led Guardrail Light

Name: Delos Rectangular Led Guardrail Light
Brand: Delos
SKU: 122330299
Availability: InStock

US$ 130 - 260 MOQ: 10 Sets

Key Specifications

LED Light Source:

CREE/Sanan

Input Voltage(V):

180V-250V

Lamp Power(W):

Guangdong Delos Lighting Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou/Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

LED Light Source CREE/Sanan

Input Voltage(V) 180V-250V

Lamp Power(W) 24

Lamp Luminous Efficiency(lm/w) 100

Color Temperature(CCT) Other, 2600k-6500k

Working Temperature(℃) -30, +50

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum Alloy

IP Rating IP65

Certification CCC, CE, CQC

Warranty(Year) 5

Place of Origin Guangdong, China

Brand Name Delos

Model Number DL141

Specifications

1.Delos Rectangular led guardrail light;
2.IP65 Die-cast aluminum alloy housing;
3.Multiple photometric curves;
4.CE.

Delos Rectangular led guardrail light

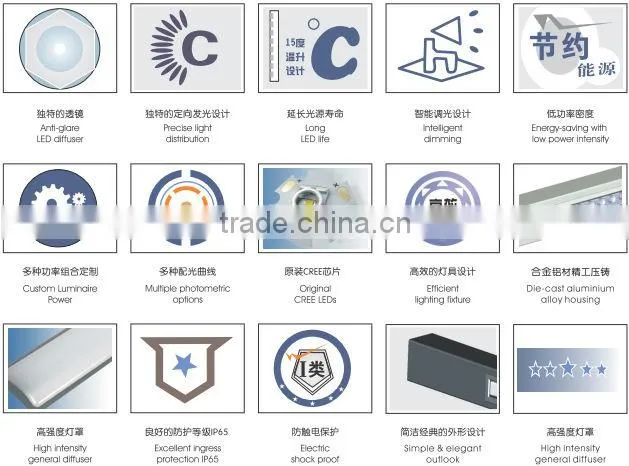

I. Description of Delos Rectangular led guardrail light

1. Simple and asthentic out look;

2.Die-cast aluminum alloy housing;

3.IP65 housing, superior sealant and improved configuration;

4.Heat and aging resisitance, explosion proof;

5.PMMA diffuser, excellent transmittance;

6.No glare ensures comfortness;

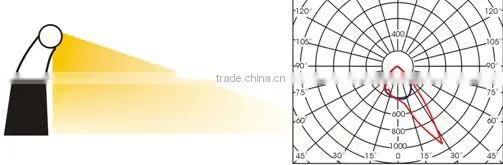

7.Multiple photometric curves to fit different situations.

II. Specifications of Delos Rectangular led guardrail light

Article NO.	DL0141	DL0142	DL0129	DL0143	DL0144	DL0128	DL0150	DL0127	DL0126
LED power	4W	6W	8W	4W	6W	8W	12W	16W	24W
Input voltage	180V-250V
Frequency	50Hz
Power factor	>0.95
THD	<15%
Light efficiency	85%
Intelligent interface	0-10v anolog or DMX512
IP Rate	IP65
Electrical Class	Class I
Dimension	660*77mm	660*77mm	660*77mm	1200*77mm	1200*77mm	1200*77mm	1200*77mm	1200*77mm	1200*77mm
Optional guardrail pipe diameter	180180;160160;140140;120120;100100;9090;8080;7575;7070;6565;60*60
Color	Brown/White
Guardrail pipe thickness	5-6mm/4-5mm
