*Product description

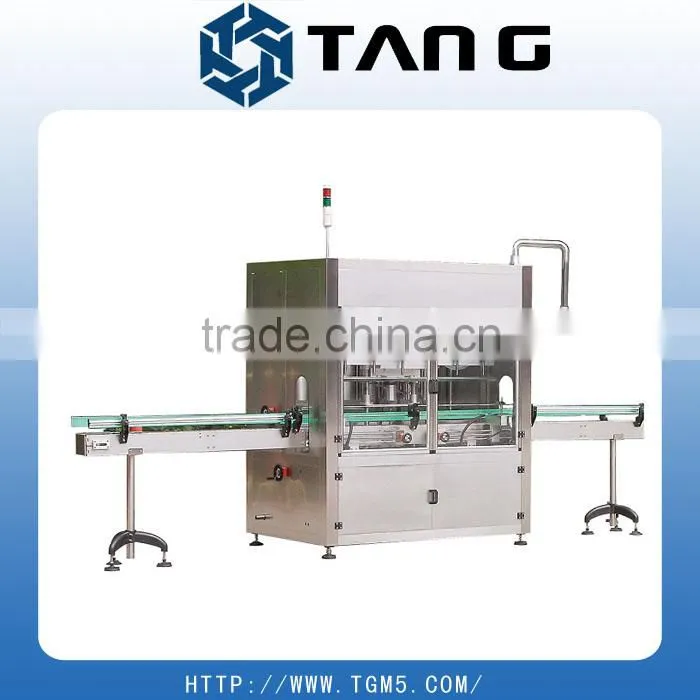

little foam liquid bottling filling machine
Features:
1.Available from 2 head to 12 head

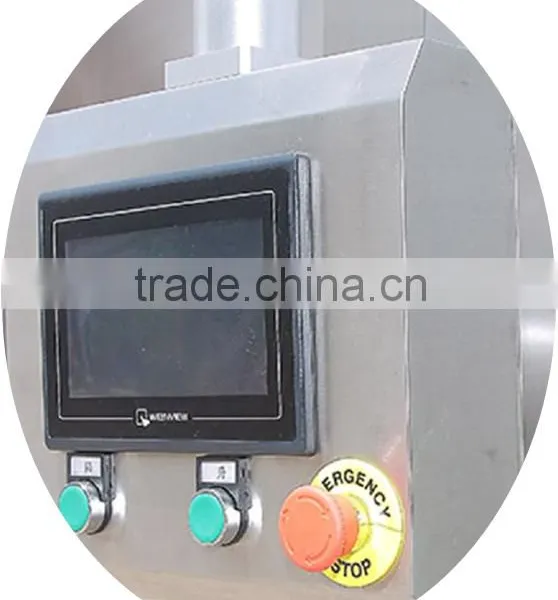

2.Mitsubishi make PLC system with Touch Screen and VFD control for conveyor speed control.
3.Contact parts in Stainless steel 304 quality
4.Body frame made up of Stainless steel
5.Capable of automatic intake of empty bottles in container on to the filling station and discharge
after filling bottles with the help of stop and release lever pneumatically operated
6.Neck Entry Nozzle system so that the nozzle enter inside the container before filling to avoid spillage
7.Container along with electric motor for main drive and conveyor reduction gear box and variable frequency drive
8.Mechanically operated Nozzle Up-Down movement & Pneumatically stopper gates for bottle entry and exit.
9.Power 380 Volts 3 phase 50 Hz.
Technical data:
Filling capacity |
1500-3000pcs/h |
Operating voltage |
380v |
Filling precision |
±0.5-1%ml |
Filling head |
2-12 head |
Filling capacity |
100-500ml,500-2500ml,1-5L,5-20L |
Working pressure |
0.6~0.8Mpa |
Dimension |
1600*1400*2000mm |
Weight |
680KG |
Power |
3.5kw |

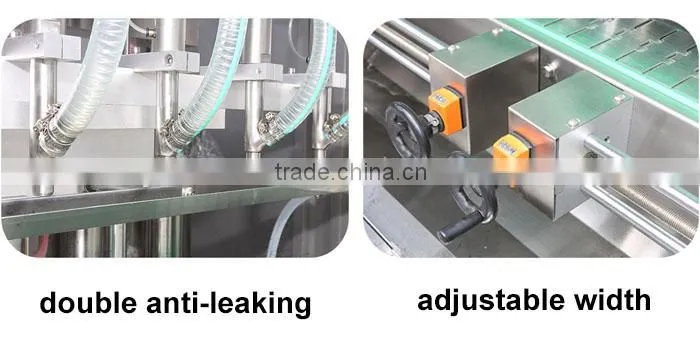

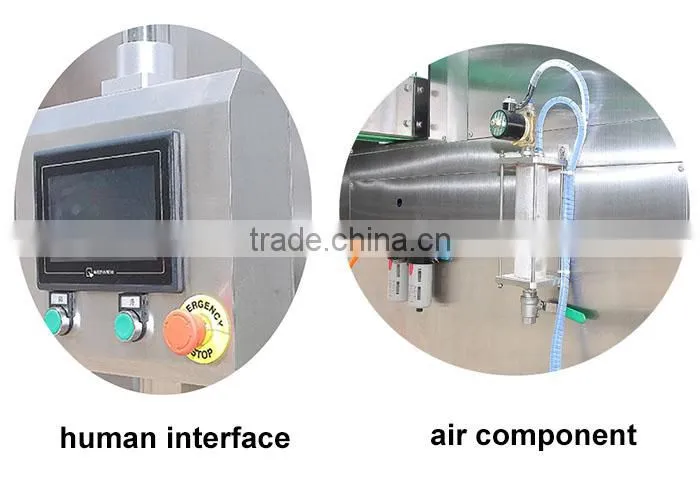

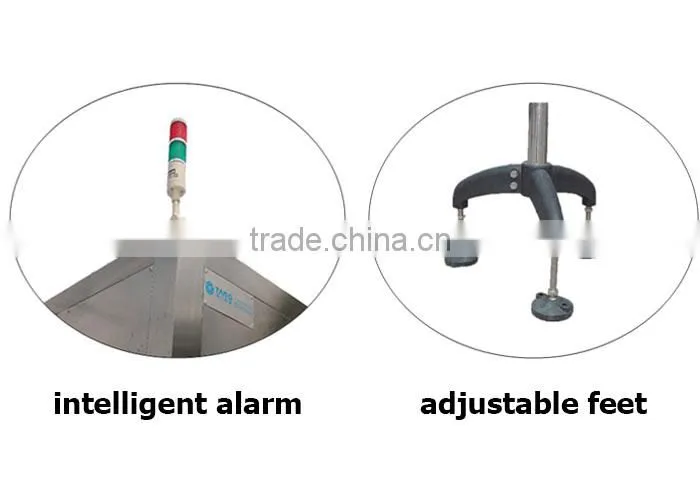

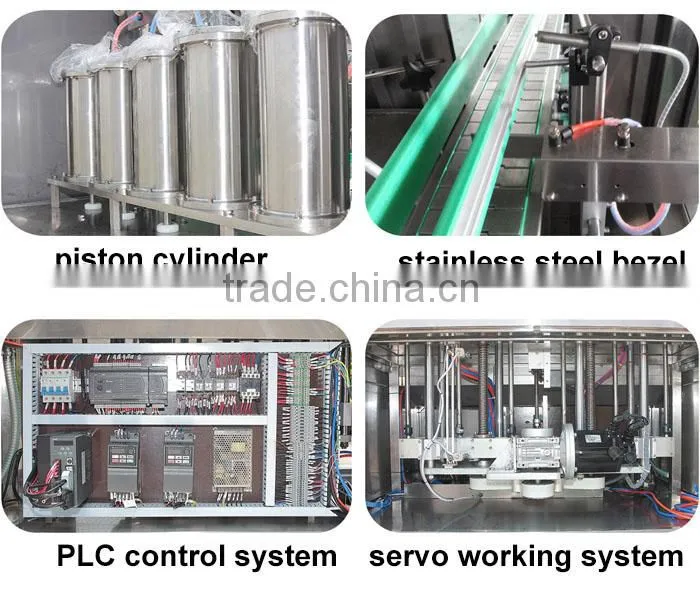

*Filling part details
*Application
*Reference packing
*Exhibition&Customers
*Our certification
*Factory&show room
*Contact us
