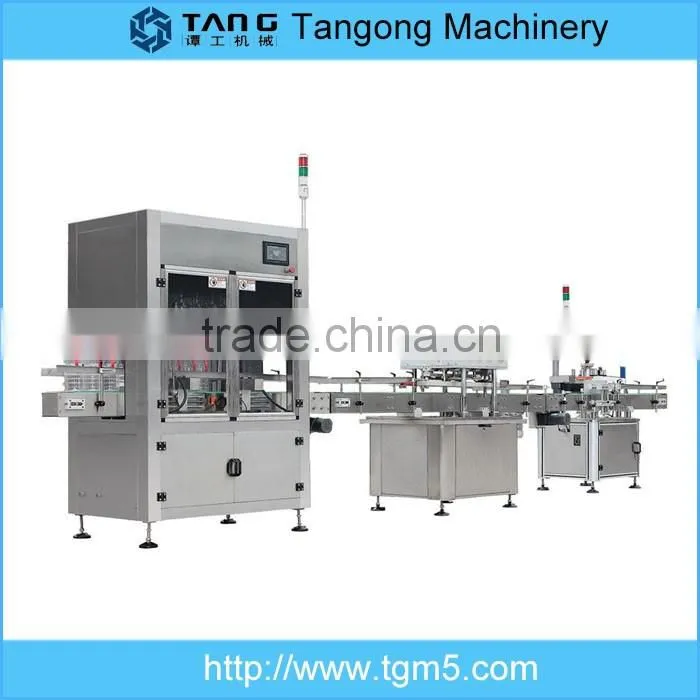

2000BPH Edible Oil Machinery Edible Oil Filling Line
Features:
1.The filling machine is suitable for all kinds of oils, such as lubricating oil, edible oil filling.
2.The devic has a beautiful appearance, high filling precision, convenient adjustment, easy operation, etc
3.Built-in two-speed fill process,the filling process non-foaming, material does not spill
4.High accuracy Roots flow meter equipped with high-precision pulse encoder. Taiwan Delta PLC and Taiwan Willen touch screen terminal, the filling process accurate and reliable
5.Filling with vacuum head back and configure a separate device, the rest material on filling nozzle will be recycling
6.There is a No-bottle no-filling mechanism which prevents waste and makes for a cleaner bottle filling operation.
7.Body frame made up of heavy duty stainless steel
Main working:
Bottle filling---Cap sorting--Cap tightening--Sticker labeling--Code printing

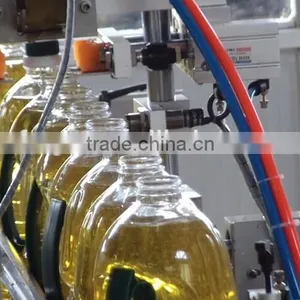

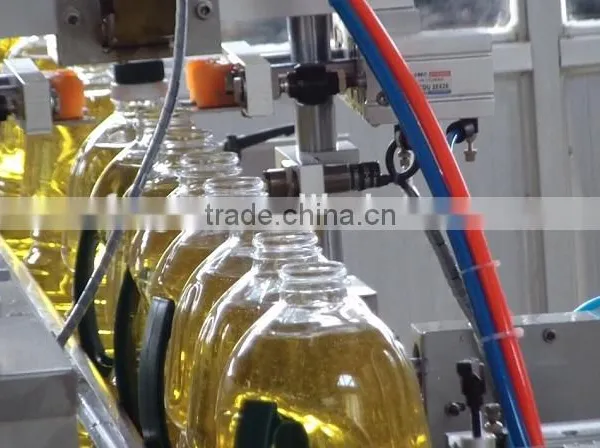

Empty containers are staged on the Main Drive Conveyor prior to entering the Filler. Containers enter the filler and are counted by optical sensors to ensure the correct numbers of containers are in position. Once in place, containers are locked in position by the pneumatically-operated container clamping mechanism. This ensures containers are located correctly under each filling head to minimize under or over-fills. The filling process begins as a series of stainless steel valves descend into the containers for fast, accurate and consistent filling.
The filled containers are then released from the container clamping mechanism and directed to the Automatic Cap Chute and the Press-on Capper for processing.
Technical data:
Filling rate |
1000-2000pcs/h |
Operating voltage |
380v 50Hz |
Filling precision |
±1%ml |
Filling quantity |
2-12 head |
Bottle diameter |
Φ40-Φ120mm |
Working pressure |
0.6~0.8Mpa |
Filling capacity |
500ml-3000ml,1-5L,5-20L |
Dimension |
8000*1200*2100mm |
Weight |
1600KG |
Power |
3.5kw |
After-sale service:
1, warranty time: one year, from the date which the product is qualified commissioning. Any
damage except the wrong operation during warranty period is repaired freely.Which buyer
should pay for the round-trip ticket, living there charge of our engineer.
2, commissioning services: the product's installation and commissioning at the demand side, our
engineers will not leave there untill get your agreement.
3, training services: our engineers will train your staff to operate it during the period of
installation and commissioning, and they will not leave there untill your staff can operate it
properly and normally.
4, maintenance services: any malfunction happened, once you enquiry us, we will reply you within 48 hours except the special reasons.
5, lifelong services: we provide lifelong services for all the products we sold out, and supply
the spare parts with discount price.

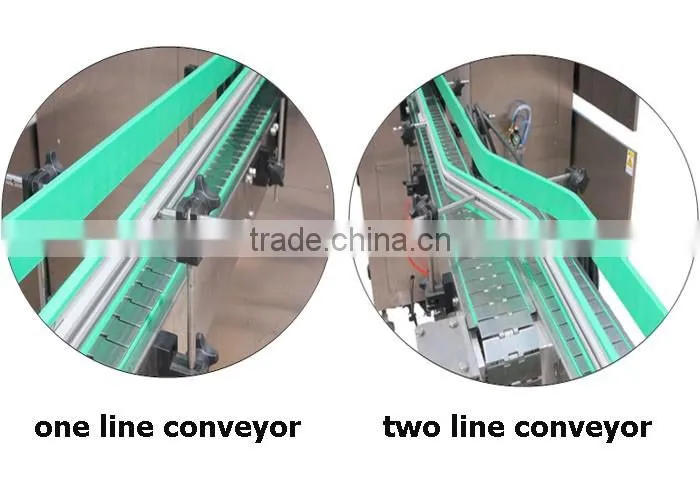

*Conveyor type

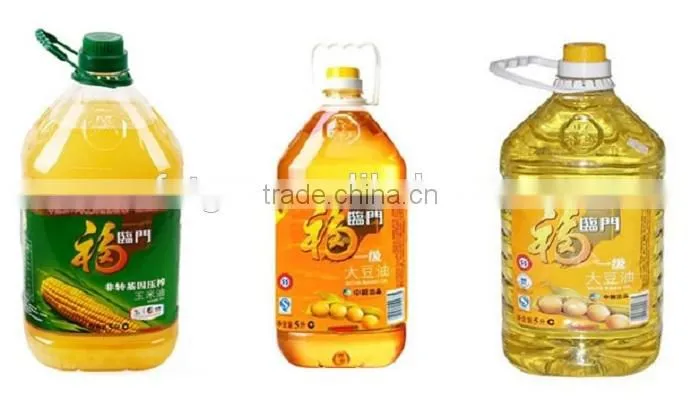

*Application
