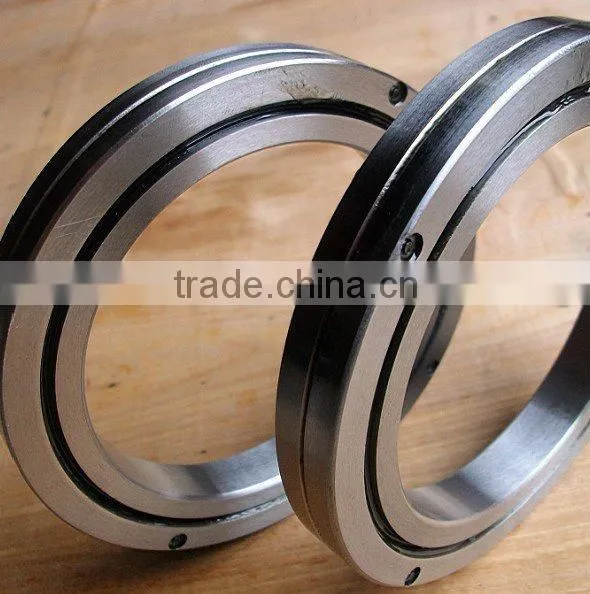

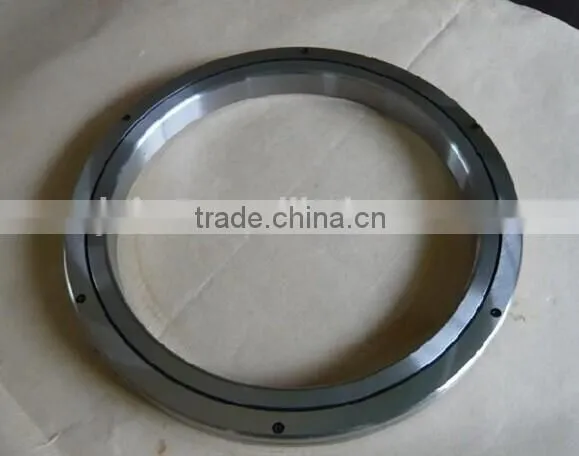

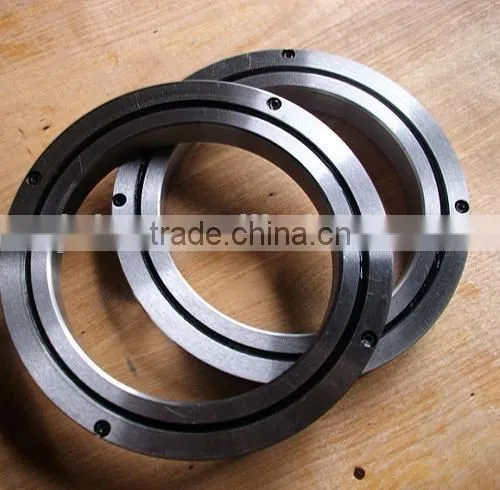

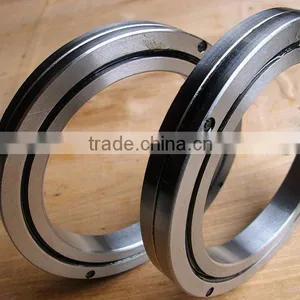

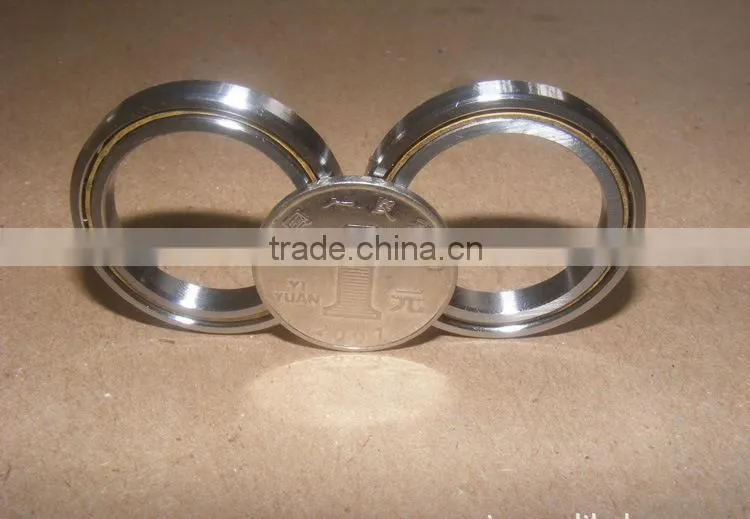

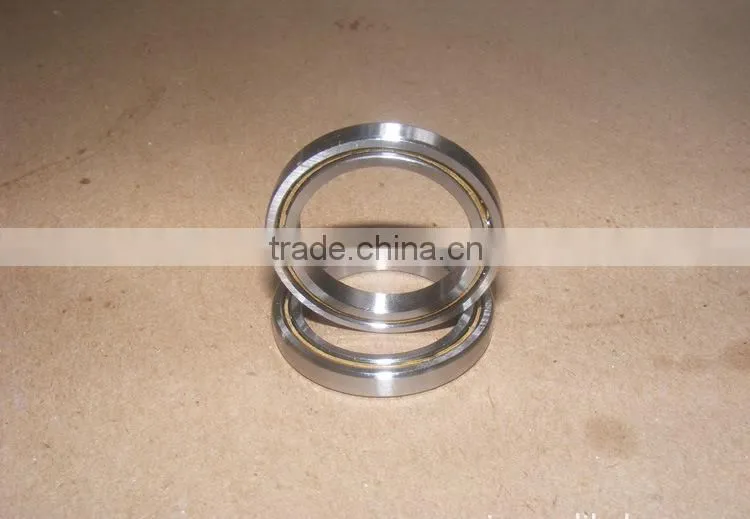

Precision SX011828A cross roller bearing
super precision crossed roller bearings SX have long been the optimum solution in technical and economic terms where compact, easy-to-fit bearings with high tilting moment load carrying capacity, rigidity and accuracy are required in a bearing position.
Main product data of SX011828A
di = 140 mm
Da = 175 mm
H = 18 mm
Mass = 1.1 kg
Basic dynamic load rating, axial = 63000 N
Basic static load rating, axial = 240000 N
Basic dynamic load rating, radial = 45000 N
Basic static load rating, radial = 96000 N
Country of Origin: Germany
Catalogue of super precision Crossed roller bearings SX series
Part No. |
di mm |
Da mm |
H mm |
SX011814 |
70 |
90 |
10 |
SX011818 |
90 |
115 |
13 |
SX011820 |
100 |
125 |
13 |
SX011824 |
120 |
150 |
16 |
SX011828 |
140 |
175 |
18 |
SX011832 |
160 |
200 |
20 |
SX011836 |
180 |
225 |
22 |
SX011840 |
200 |
250 |
24 |
SX011848 |
240 |
300 |
28 |
SX011860 |
300 |
380 |
38 |
SX011868 |
340 |
420 |
38 |
SX011880 |
400 |
500 |
46 |
SX0118/500 |
500 |
620 |
56 |
Super precision Crossed roller bearings SX011828A are also available in a corrosion-resistant version with the special coating Corrotect. More detail bearings info, please contact us.
Packaging
Shipping
There are professional testing team in our company. Every Step all will be controlled seriously.
1.What is the MOQ of your company?
Our company MOQ is 1pcs.
2.Could you accept OEM and customize?
YES, we can customize for you according to sample or drawing.
3.Could you supply sample for free?
Yes, we can supply sample for free, but need our customer afford freight.
4.Does your factory have CE?
Yes, we have ISO 9001:2008, and SASO. If you want other CE, we can do for you.

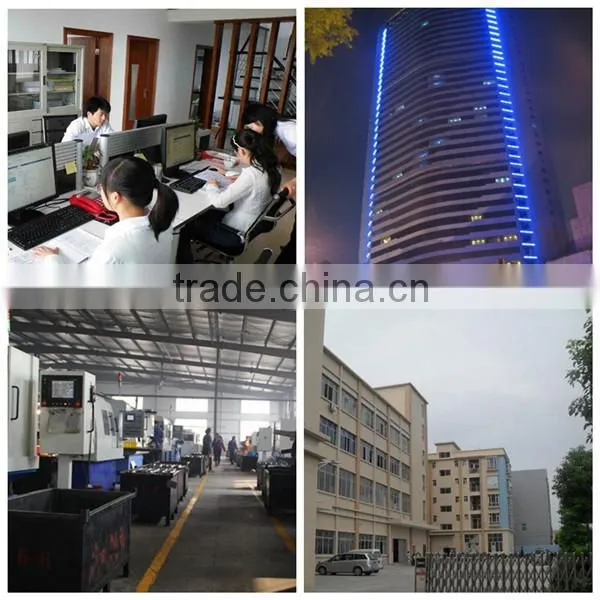

5.Does your company factory or Trade Company?
We have our own factory; our type is factory + trade.
6.What is the guarantee of your bearing quality period:?
1year! Customer need supply photos and send bearing back.
Welcome to Inquire Precision SX011828A cross roller bearing !
