One Way Screw Bearing for Ball Screw Drives BSD 3062 CG

One Way Screw Bearing for Ball Screw Drives BSD 3062 CG thumbnail-1
One Way Screw Bearing for Ball Screw Drives BSD 3062 CG photo-1
US$ 1 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Manufacturing Process:
Milled Thread
Material:
GCr15, Chrome Steel
Length:
Custom Length
Contact Supplier Request Quote Chat Now
Jinan Kaiming Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Manufacturing Process Milled Thread
Material GCr15, Chrome Steel
Length Custom Length
Model Number BSD 3062 CG
Place of Origin China
Brand Name OEM

             One way screw bearing for ball screw drives BSD 3062 CG



BSD 3062 CG single direction angular contact thrust ball bearings are designed to accommodate heavy axial loads. The bearings only accommodate axial loads in one direction and are therefore adjusted against a second bearing or mounted as bearing sets. Key features of BSD 3062 CG include:

– 62° contact angle

– robust, window-type polyamide 66 cage

–  universally matchable in any order, in sets with up to four bearings

One way screw bearing for ball screw drives BSD 3062 CG

Technical data of BSD 3062 CG

ID: 30 mm

OD: 62 mm

Width: 15 mm

Weight: 0.22 kg

Basic dynamic load rating: 28.5 kN

Basic static load rating: 71 kN

Fatigue limit load: 2.65 kN

Limiting speed with grease lub.: 8000 rpm

Limiting speed with oil lub.: 9500 rpm

One way screw bearing for ball screw drives BSD 3062 CG

One way screw bearing for ball screw drives BSD 3062 CG

One way screw bearing for ball screw drives BSD 3062 CGOne way screw bearing for ball screw drives BSD 3062 CGOne way screw bearing for ball screw drives BSD 3062 CG



Angular contact thrust ball bearings for screw drives catalogue

Designation

ID

OD

Width

Weight

SNAF Designation

BSA 201 CG

12

32

10

0,043

BS 212 7P62U

BSA 202 CG

15

35

11

0,054

BS 215 7P62U

BSA 203 CG

17

40

12

0,078

BS 217 7P62U

BSA 204 CG

20

47

14

0,12

BS 220 7P62U

BSD 2047 CG

20

47

15

0,13

BS 20/47 7P62U

BSA 205 CG

25

52

15

0,15

BS 225 7P62U

BSD 2562 CG

25

62

15

0,24

BS 25/62 7P62U

BSA 305 CG

25

62

17

0,27

BS 325 7P62U

BSD 3062 CG

30

62

15

0,22

BS 30/62 7P62U

BSA 206 CG

30

62

16

0,23

BS 230 7P62U

BSA 306 CG

30

72

19

0,4

BS 330 7P62U

BSD 3572 CG

35

72

15

0,30

BS 35/72 7P62U

BSA 207 CG

35

72

17

0,33

BS 235 7P62U

BSA 307 CG

35

80

21

0,56

BS 335 7P62U

BSD 4072 CG

40

72

15

0,26

BS 40/72 7P62U

BSA 208 CG

40

80

18

0,43

BS 240 7P62U

BSD 4090 CG

40

90

20

0,68

BS 40/90 7P62U

BSA 308 CG

40

90

23

0,77

BS 340 7P62U

BSD 4575 CG

45

75

15

0,26

BS 45/75 7P62U

BSA 209 CG

45

85

19

0,51

BS 245 7P62U

BSD 45100 CG

45

100

20

0,77

BS 45/100 7P62U

BSA 210 CG

50

90

20

0,56

BS 250 7P62U

BSD 50100 CG

50

100

20

0,71

BS 50/100 7P62U

BSD 55100 CG

55

100

20

0,66

BS 55/100 7P62U

BSD 55120 CG

55

120

20

1,14

BS 55/120 7P62U

BSA 212 CG

60

110

22

0,95

BS 260 7P62U

BSD 60120 CG

60

120

20

1,07

BS 60/120 7P62U

BSA 215 CG

75

130

25

1,45

BS 275 7P62U

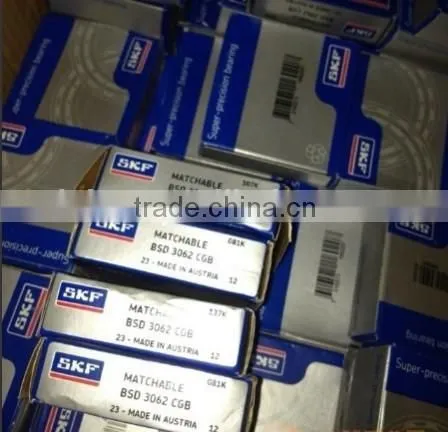

Our BSD 3062 CG are made in Austria factory with original factory packing box. They can replace BSB030062-T, NSK 30TAC62BSUC10PN7B, NTN BST30X62-1BGP4, Koyo SAC3062BG MG4Z/00, Nachi 30TAB06U/GM P4 etc. Detail information, please contact our sales engineer.

Thanks for your attention,any question,please kindly let me know,i will reply to you asap.

Hope my working can promote your business's boom,have a nice day.
