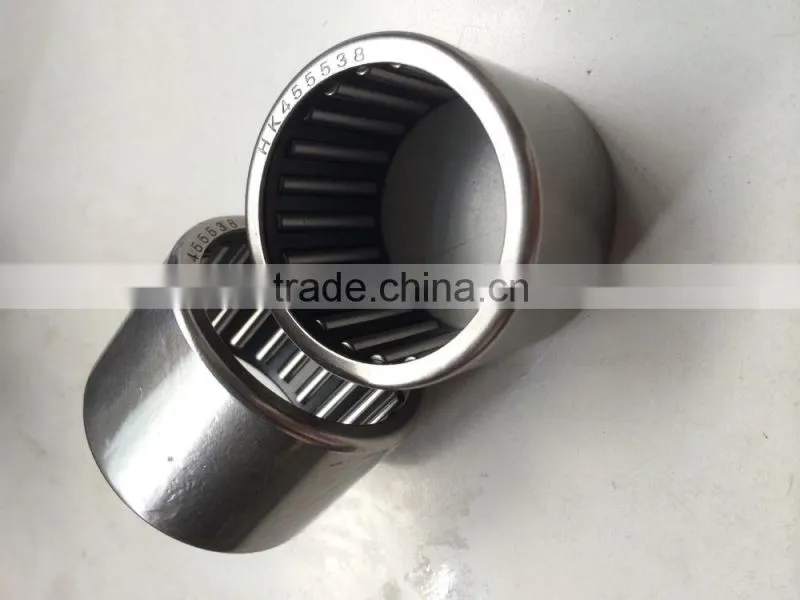

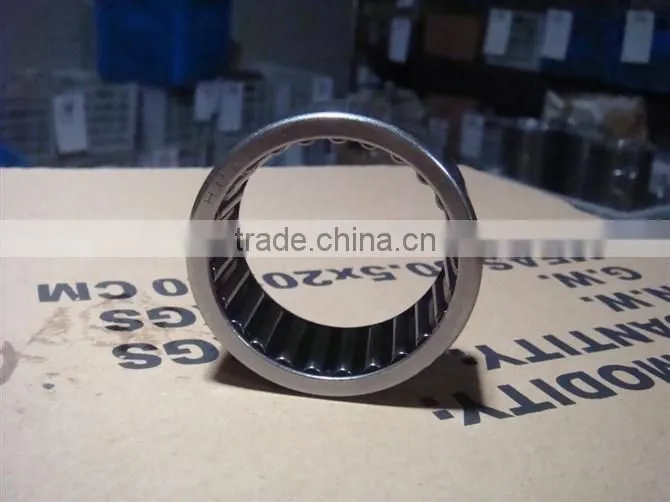

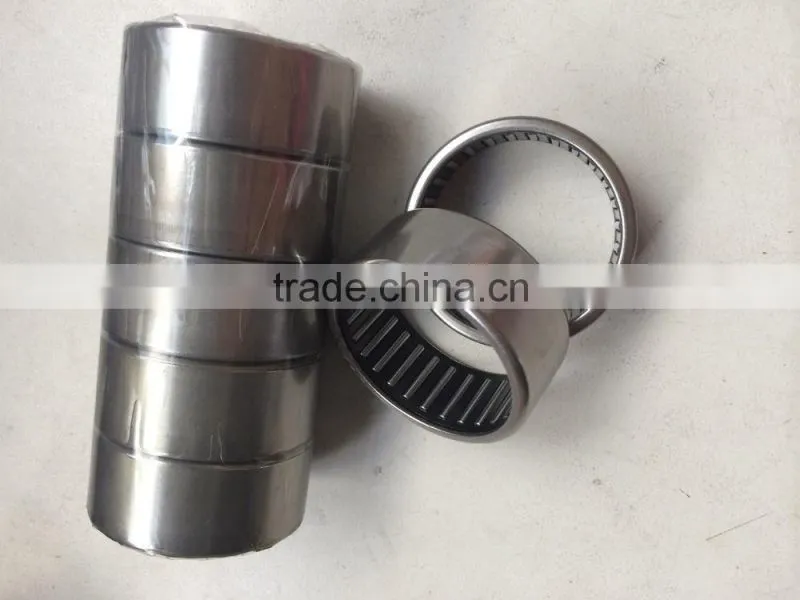

Needle roller bearing HF2016 washing machine parts HF2016
HF2016 One Way Needle Bearings/Roller Clutches do not have a bearing arrangement and can only transmit torques.Drawn cup roller clutches can be used in various applications such as indexing clutches, back-stopping clutches and overrunning clutches. In these cases, the drawn cup roller clutch performs an overrunning or locking function.
Technical data of HF2016 Roller Clutches
With steel pressure springs
Fw: 20 mm
OD: 26 mm
Width: 16 mm
Weight: 17 g
Limiting speed with rotating outer ring: 6500 rpm
Suitable drawn cup needle roller bearings for radial bearing arrangement HK2010
Part of IKO Machined needle roller bearings catalogue

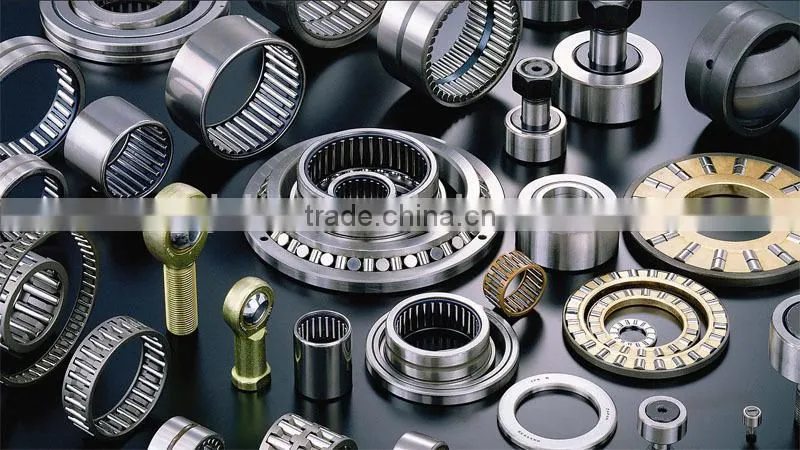

Needle roller bearings(textile bearings) have a high load carrying capacity in addition to their low cross-section and stiffness ,they are especially suitalble for bearing arrangements where radial space is limited .they are widely used in Motorcycles ,Mopeds , Automotive ,Power tool ,Texitile machine , Printing machinery ,Food packing machine,Toys etc ,
needle roller bearing hot sell item : HF0812 HF0812R HF2520 HF3020 HF3520
needle roller bearing catalogue
| Shaft Diameter | Clutch Designation | Mass Approx | ||||
| Boundary Dimensions | ||||||
| Plastic Springs | Steel Springs | Fw | D | C | ||
| mm | g | mm | ||||
| 3 | HF0306KF | 0.9 | 3 | 6.5 | 6 | |
| 4 | HF0406KF | -- | 1 | 4 | 8 | 6 |
| HF0406KFR | -- | 1 | 4 | 8 | 6 | |
| 6 | HF0608KF | 2.8 | 6 | 10 | 8 | |
| HF0612KF | HF0612 | 3 | 6 | 10 | 12 | |
| HF0612KFR | HF0612R | 3 | 6 | 10 | 12 | |
| HF061210 | 3.5 | 6 | 12 | 10 | ||
| 8 | HF0812KF | HF0812 | 3.5 | 8 | 12 | 12 |
| HF0812KFR | HF0812R | 3.5 | 8 | 12 | 12 | |
| -- | HF061210 | 3.2 | 8 | 12 | 10 | |
| -- | HF081410 | 3.6 | 8 | 14 | 10 | |
| -- | HF081610 | 4.1 | 8 | 16 | 10 | |
| -- | HF081412 | 4 | 8 | 14 | 12 | |
| 10 | HF1012KF | HF1012 | 4 | 10 | 14 | 12 |
| HF1012KFR | HF1012R | 4 | 10 | 14 | 12 | |
| 12 | -- | HF1216 | 11 | 12 | 18 | 16 |
| 14 | -- | HF1416 | 13 | 14 | 20 | 16 |
| 16 | -- | HF1616 | 14 | 16 | 22 | 16 |
| 18 | -- | HF1816 | 16 | 18 | 24 | 16 |
| 20 | -- | HF2016 | 17 | 20 | 26 | 16 |
| HF2216 | 25 | 22 | 28 | 16 | ||
| 25 | -- | HF2520 | 30 | 25 | 32 | 20 |
HF2016 One Way Needle Bearings/Roller Clutches which we supply are genuine from Germany factory. We provide INA certificates along with the bearings. Welcome your inquiry.
Skype:allison.liu7
Whatsapp:008615169128966
If you want to know more about our products, please feel free to contact me. You may also visit our online company introduction which includes our latest product line. We will be happy to give you a quotation upon receipt of your detailed requirements.
I am looking forward to receiving your enquires soon. And I hope to have the opportunity to cooperate with you in the future.
