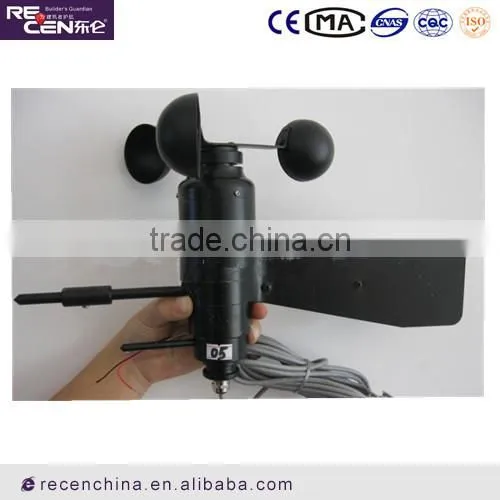

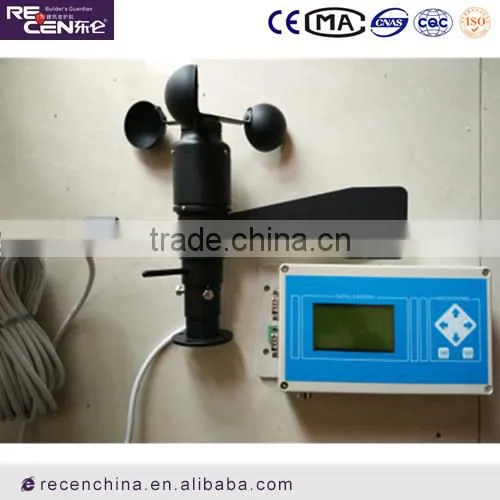

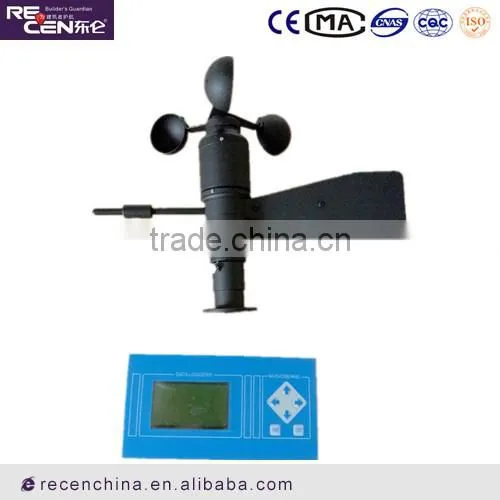

HL-FSX1 Digital Anemometer for Outdoor, cup anemometer, vane anemometers
Product Description
HL-FSX1 wind speed and direction anemometer use low inertia standard and precision photometers, high sensitivity, high accuracy. Precision signal processing unit can output a variety of signals according to user needs. This product has advantage, such as large range, good linearity, easy observation, stable and reliable, and can be widely used in weather station, oceanography, environment, airports, ports, laboratories, industry and agriculture, and transportation and other fields.
Features : good Dynamic characteristics , good linearity, high accuracy, high sensitivity, high wind strength, Wide measurement range, Interchangeability, Long circuit life, Reliable, Anti-lightning-interference ability and other excellent performance
Use Range
· Measuring the level of the ground floor near the port Wind Speed
· Meteorological environment
· Airport Expressway Monitoring
· Agriculture, forestry, environmental protection industry
Technical Parameters
Winds measuring range |
0 ~ 70m / s |
Accuracy |
± (0.3 + 0.03V) m / s (V: wind speed) |
Start wind speed |
≤0.3m / s |
Maximum turning radius |
90mm |
Wind measuring range |
0 ~ 360 ° |
Accuracy |
± 3 ° |
Start wind speed |
≤0.5m / s |
|
Resolution |
1 ° |
| Maximum turning radius |
200mm |
| Operating voltage |
5V, 12V, 24V optional |
| Output Model form |
a current:. 4 ~ 20mA b voltage:. 0 ~ 5V c.RS232 d.TTL signal |
| Load capacity |
current-output impedance ≤600Ω |
| Voltage-output impedance |
≥1KΩ |
| Working temperature |
-40 ℃ ~ 50 ℃ |
| Humidity |
≤100% RH |
| Protection class |
IP45 |
More Introdution (YOU MAY LIKE )
Our Services
1- One year warranty for whole machines.
2- Providing free quick-wear part.
3- Low charge for continue maintenance when warranty is expired.
4- Exclusive engineer support at any time.
5- free training to end-users.
6- 24 hours online service and support
Company Information
Chengdu Recen Technology Co., Ltd. is a high-tech enterprise which locate in Chengdu, Sichuan Province of China, and it has more than five years experience in the field of construction tower crane industry. Since established, Recen has been insisting to invest heavily in product development and focus on products usability, design, and technology quality to providing high-technology, high-efficiency and high-energry save products to meet market demand. Based on the corporate mission of "as builder's escort" and insisting on the advanceted, innocative and reasonable working core, Recen has won recognition and praise from the users at home and abroad. So far, our customers are throughout China, Hong Kong, Russia, the United States, Vietnam, India, Malaysia, Argentina, Kuwait, Isreal, Egypt, the United Arab Emirates and other countries and regions. Through continous development and improvement, Recen has made considerable achievements not only on company qualification but also on product development within a few years.

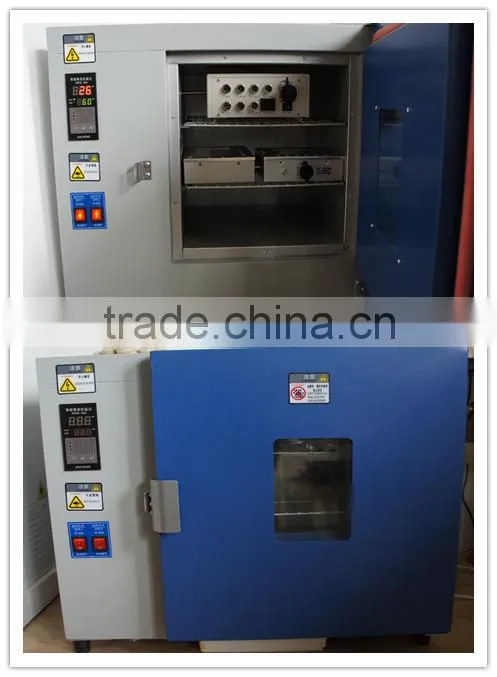

Certification & Testing
