Hoffman Large Fragment Orthopedic External Fixator Set

Hoffman Large Fragment Orthopedic External Fixator Set thumbnail-1
Hoffman Large Fragment Orthopedic External Fixator Set thumbnail-2
Hoffman Large Fragment Orthopedic External Fixator Set thumbnail-3
Hoffman Large Fragment Orthopedic External Fixator Set thumbnail-4
Hoffman Large Fragment Orthopedic External Fixator Set photo-1
Hoffman Large Fragment Orthopedic External Fixator Set photo-2
Hoffman Large Fragment Orthopedic External Fixator Set photo-3
Hoffman Large Fragment Orthopedic External Fixator Set photo-4
US$ 100 - 1,300 MOQ: 1 Set
Key Specifications
Get Latest Price
Properties:
Orthopedic Surgical Instruments
Type:
Other, External Fixator
Brand Name:
Meditech
Contact Supplier Request Quote Chat Now
Changzhou Meditech Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Properties Orthopedic Surgical Instruments
Type Other, External Fixator
Brand Name Meditech
Model Number Small Fragment
Place of Origin Jiangsu, China

Hoffman Large Fragment Orthopedic External Fixator Set

1.Primary useage: Large fragment fixation

2.Certification:CE ISO13485

3.Material: Aluminium , Stainless Stell, Carbon Fiber

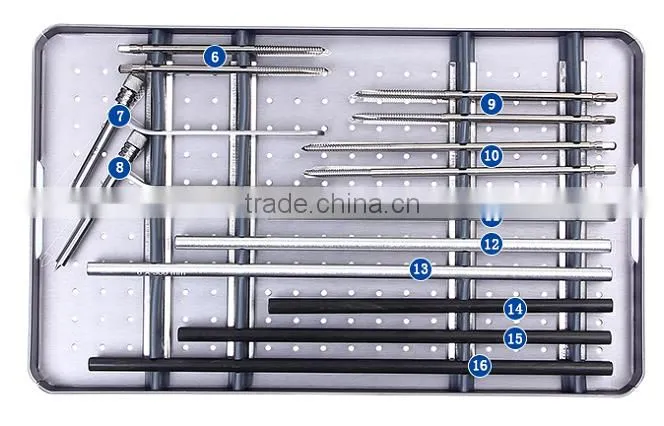

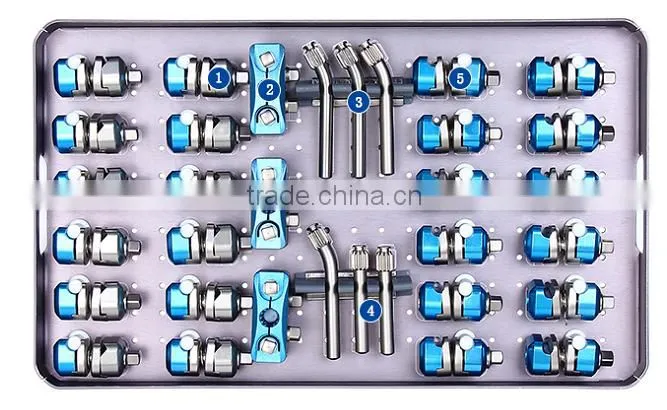

  Components List



REF                   Description                                                         Quantities

3123-101          1   Rod-Pin Coupling (5/6mm Pin, 8mm Rod)             12

3123-102          2   5-Hole Pin Clamp (5/6mm Pin)                               3

3123-103          3   30 Degree Angled Post                                          4

3123-104          4   Straight Post                                                           2

3123-105          5   Rod-Rod Coupling (8mm Rod)                              12

3123-106          6   Apex Pin Self-drilling 5*120mm                              4

3123-107          7   Drill Sleeve                                                             1

3123-108          8   Drill Sleeve                                                             1

3123-109          9   Apex Pin Self-drilling 5*150mm                              4

3123-110          10  Apex Pin Self-drilling 5*180mm                             4

3123-111          11  Aluminum Connecting Rod 8*200mm                    2

3123-112          12  Aluminum Connecting Rod 8*250mm                    2

3123-113          13  Aluminum Connecting Rod 8*300mm                    2

3123-114          14  Carbon Fiber Connecting Rod 8*200mm               2

3123-115          15  Carbon Fiber Connecting Rod 8*250mm               2

3123-116          16  Carbon Fiber Connecting Rod 8*300mm               2

3123-117          17  Semi Circular Rod 8mm Medium                            2

3123-118          18  T-wrench                                                                1

3123-119          19  T-wrench                                                                1

3123-120          20  Arc Drilling Stand Large                                          1

3123-121          21  Apex Pin Chuck                                                       1

3123-122          22  Wrench with Extension Bar                                     1

3123-123          23  Reduction Wrench                                                   1

3123-124          24  Semi Circular Rod 8mm Large                                2

3123-125          25  Adjust Wheel                                                           1

4. Advantages of our external fixators

    I. With the characteristic of technology advanced and convenience.

    II.Independent arrangement for bone screws in distal and proximal fracture.

    III. Snap-fit used in the design lead to seasier operation and less time

    IV. Medical aluminium & carbon fiber used in the products make the vision of the                fracture clear.

    V. Offer the best stability and elasticity.

    VI. Make he frame compactly

    VII. Design aims at the complexity of the fracture and loss of soft tissue but variety               and convenient.





Please feel free to contact us anytime by the following information, or you can talk with us on alibaba directly. We can also provide OEM service for you.
